Speakers
Description Spare part number
Speaker Kit (includes speaker tape) L36896-001
NOTE: Speaker tape is included in the Miscellaneous Parts Kit, spare part number L36912-001.
Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 18).
2. Remove the bottom cover (see Computer feet and bottom cover on page 18).
3. Remove the battery (see Battery on page 20).
4. Remove the fan (see Fan on page 23).
5. Remove the display (see Display assembly on page 28).
6. Remove the system board (see System board on page 34).

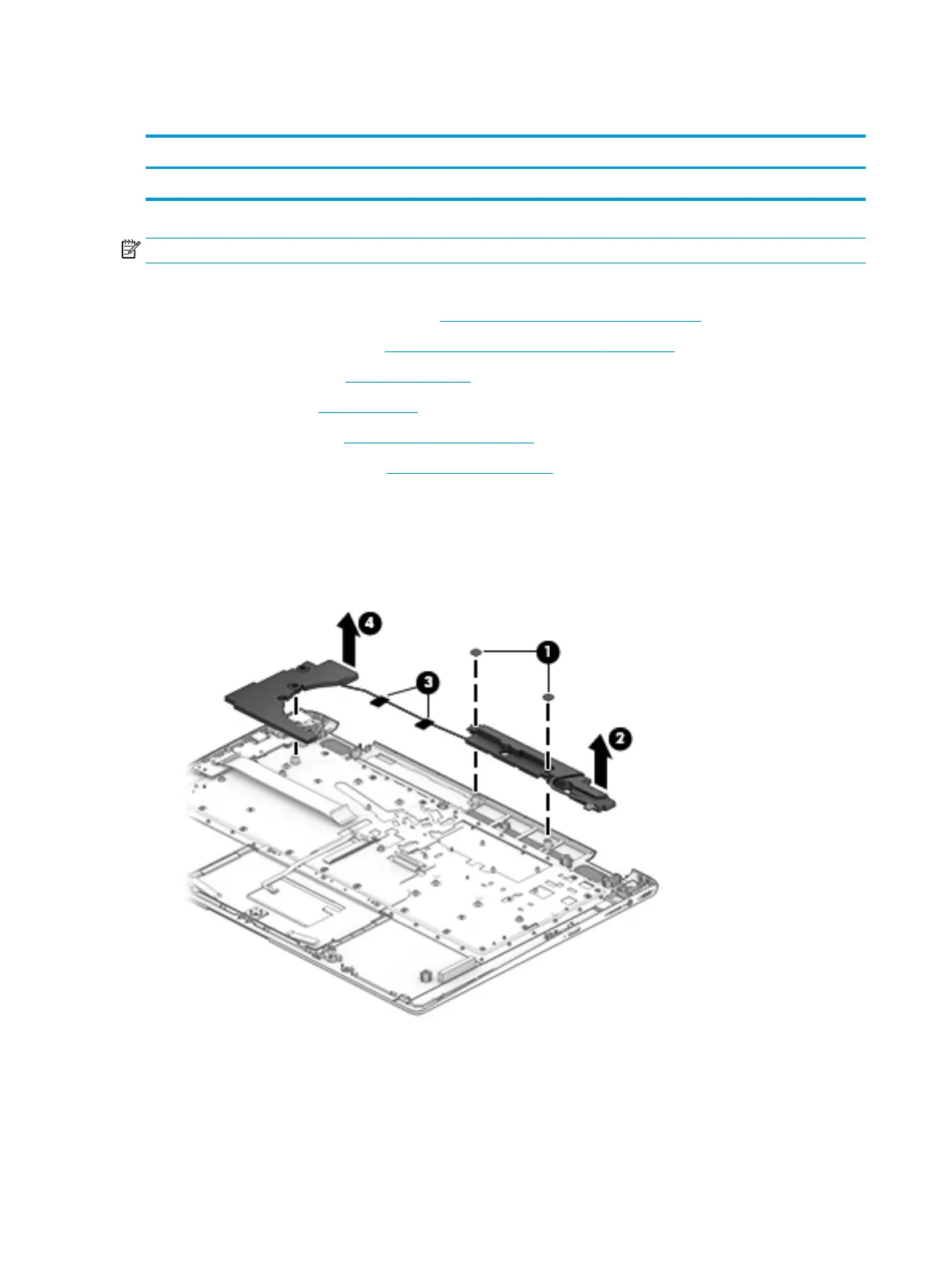

Remove the speakers:
1. Remove the two Phillips M2.0×3.0 screws (1) that secure the left speaker to the computer.
2. Remove the left speaker from the computer (2).
3. Remove the speaker cable from the clips (3), and then remove the right speaker from the computer (4).
Reverse this procedure to install the speakers.
38 Chapter 5 Removal and replacement procedures
