USB bracket, system board
Description Spare part number
USB bracket L36909-001
Before removing the USB bracket from the system board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 18).
2. Remove the bottom cover (see Computer feet and bottom cover on page 18).
3. Remove the battery (see Battery on page 20).
4. Remove the fan (see Fan on page 23).
5. Remove the system board (see System board on page 34).

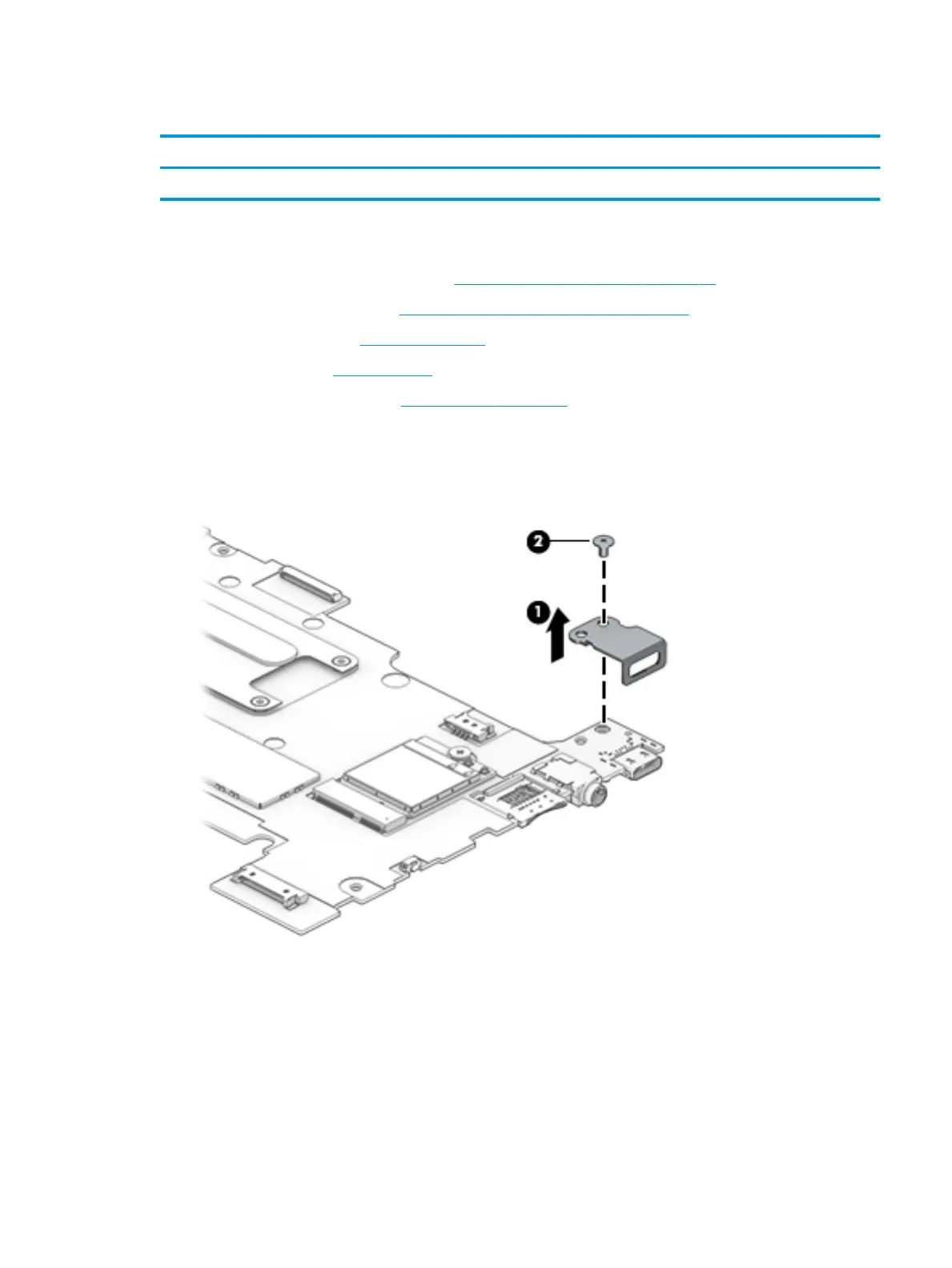

Remove the USB bracket from the system board:
1. Remove the Phillips M2.0×4.0 screw (1) that secures the USB bracket to the system board.
2. Remove the bracket from the system board (2).
Reverse this procedure to install the USB bracket onto the system board.
Component replacement procedures 37
