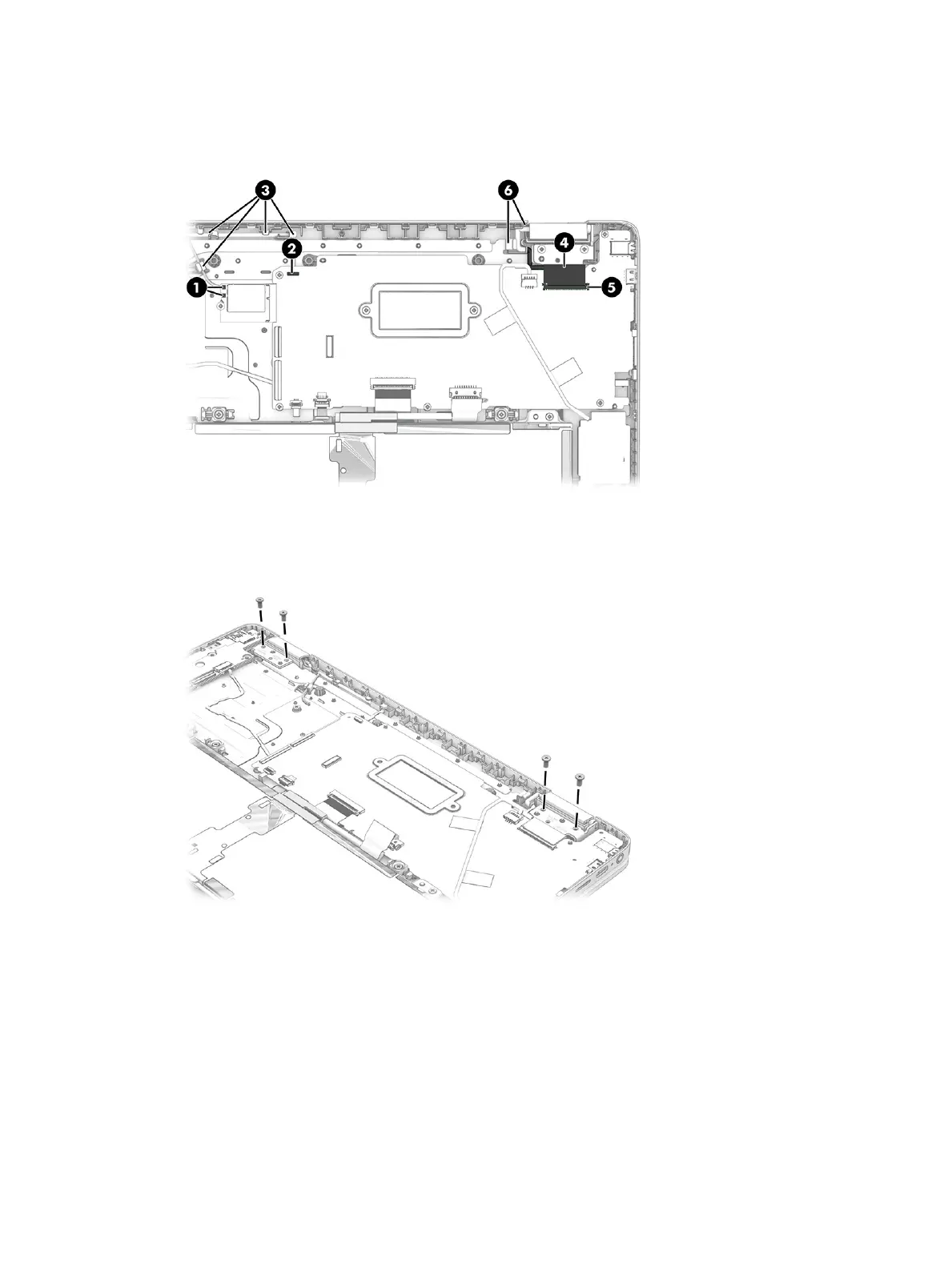

6. Release the display panel cable from the retention clips (6) built into the top cover.

7. Remove the four Phillips M2.5 × 5.7 screws that secure the display assembly to the computer.

8. Rotate the display upward to open the hinges (1).

38 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW

Questions and Answers:

Need help?

Do you have a question about the HP Chromebook x360 14a and is the answer not in the manual?

HP Chromebook x360 14a Specifications

General

Display Size	14 inches
RAM	4 GB
Operating System	Chrome OS
Graphics	Intel UHD Graphics 600
Bluetooth	Bluetooth 5
Storage	64 GB eMMC
Ports	2 x USB-C, 1 x USB-A, 1 x headphone/microphone combo
Display	HD (1366 x 768) Touchscreen
Wireless	802.11a/b/g/n/ac
Dimensions	12.82 x 8.60 x 0.70 inches
Processor	Intel Celeron N4020 / Intel Pentium Silver N5030
Weight	3.28 lbs
