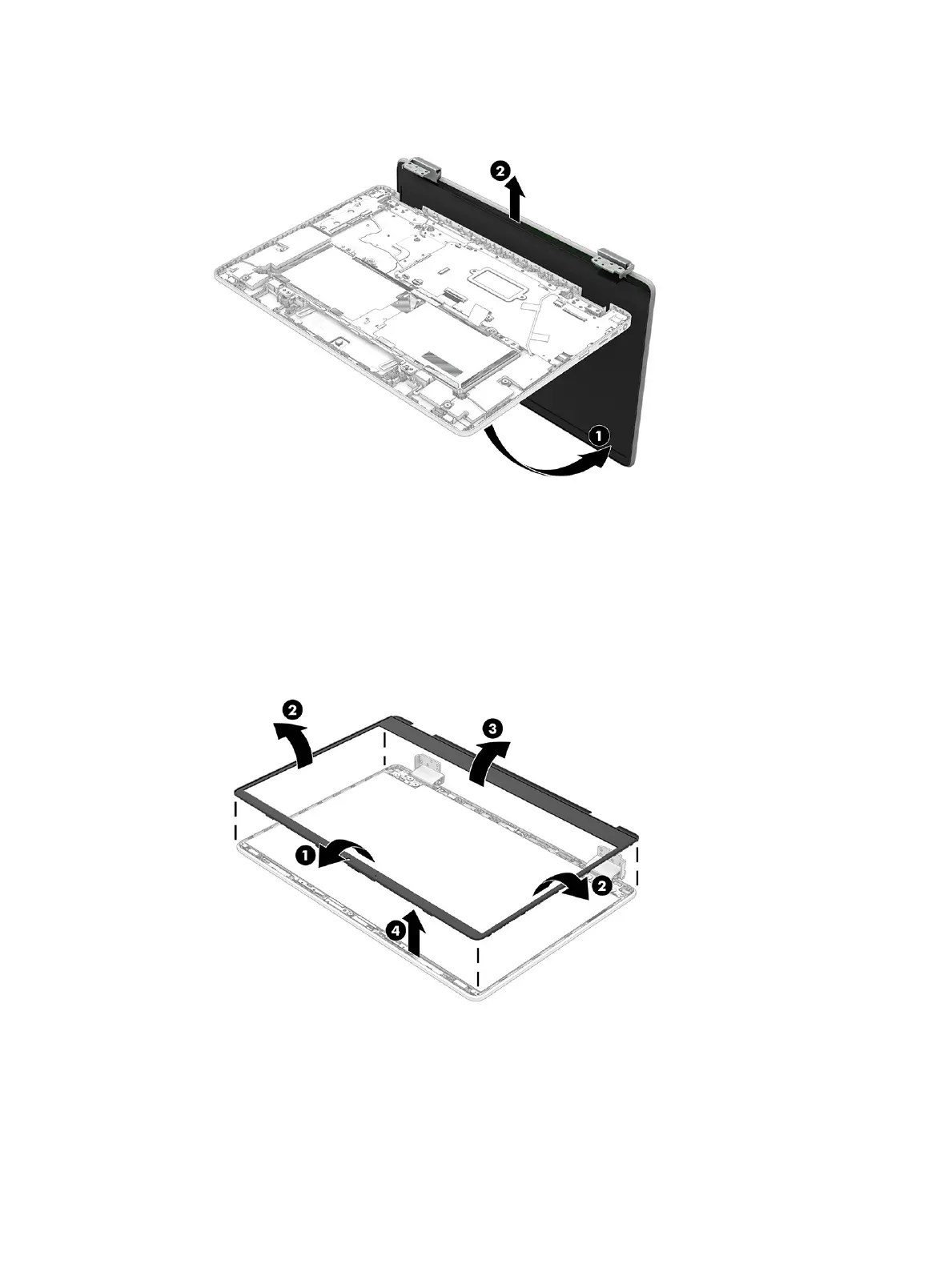

9. Separate and remove the display assembly from the computer (2).
10. If you need to replace display assembly subcomponents:
a. Flex the the inside edges of the top edge (1), the inside edges of the left (2) and right sides, and the
inside edge of the bottom edge (3) of the bezel to release it.
b. Remove the bezel (4) from the display.
The bezel is available using spare part number M15307-001.
11. If you need to replace the display panel:
a. Remove the display bezel.
b. Remove the rubber hinge caps (1) from inside the hinges.
ENWW Component replacement procedures 39
