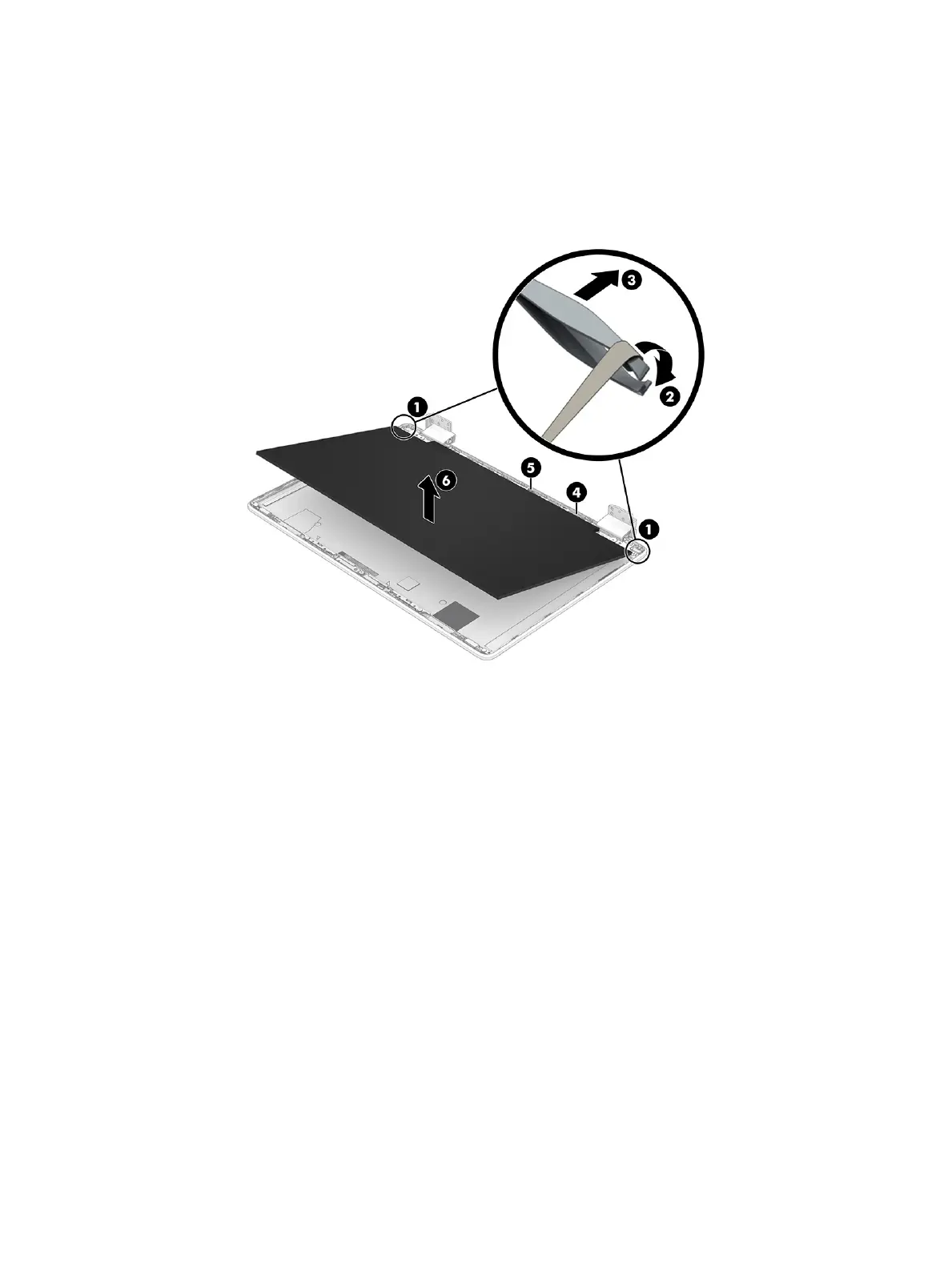

i. Remove the the display panel (6).
The display panel is available using spare part numbers M15330-001 (35.6 cm (14.0 in), FHD
(1920×1080) LCD, antiglare, WLED, UWVA 45, eDP, slim, touchscreen display panel with narrow
bezel; typical brightness: 250 nits) and M15329-001 (35.6 cm (14.0 in), HD (1366×768), LCD,
BrightView, WLED, SVA 45, slim, touchscreen display panel with narrow bezel; typical brightness: 220
nits).
12. If you need to replace the display panel cable:
a. Remove the display bezel.
b. Remove the display panel.
IMPORTANT: Before resting the display panel upside down, make sure the work surface is clear of any
tools or debris that could scratch the display panel surface.
c. Turn the display panel upside down with the bottom edge toward you.
d. Detach the grounding tape (1) that covers the display panel cable connector.
e. Release the support bar (2) that secures the display panel cable to the display panel.
ENWW Component replacement procedures 41

HP Chromebook x360 14a Specifications

General

Display Size	14 inches
RAM	4 GB
Operating System	Chrome OS
Graphics	Intel UHD Graphics 600
Bluetooth	Bluetooth 5
Storage	64 GB eMMC
Ports	2 x USB-C, 1 x USB-A, 1 x headphone/microphone combo
Display	HD (1366 x 768) Touchscreen
Wireless	802.11a/b/g/n/ac
Dimensions	12.82 x 8.60 x 0.70 inches
Processor	Intel Celeron N4020 / Intel Pentium Silver N5030
Weight	3.28 lbs
