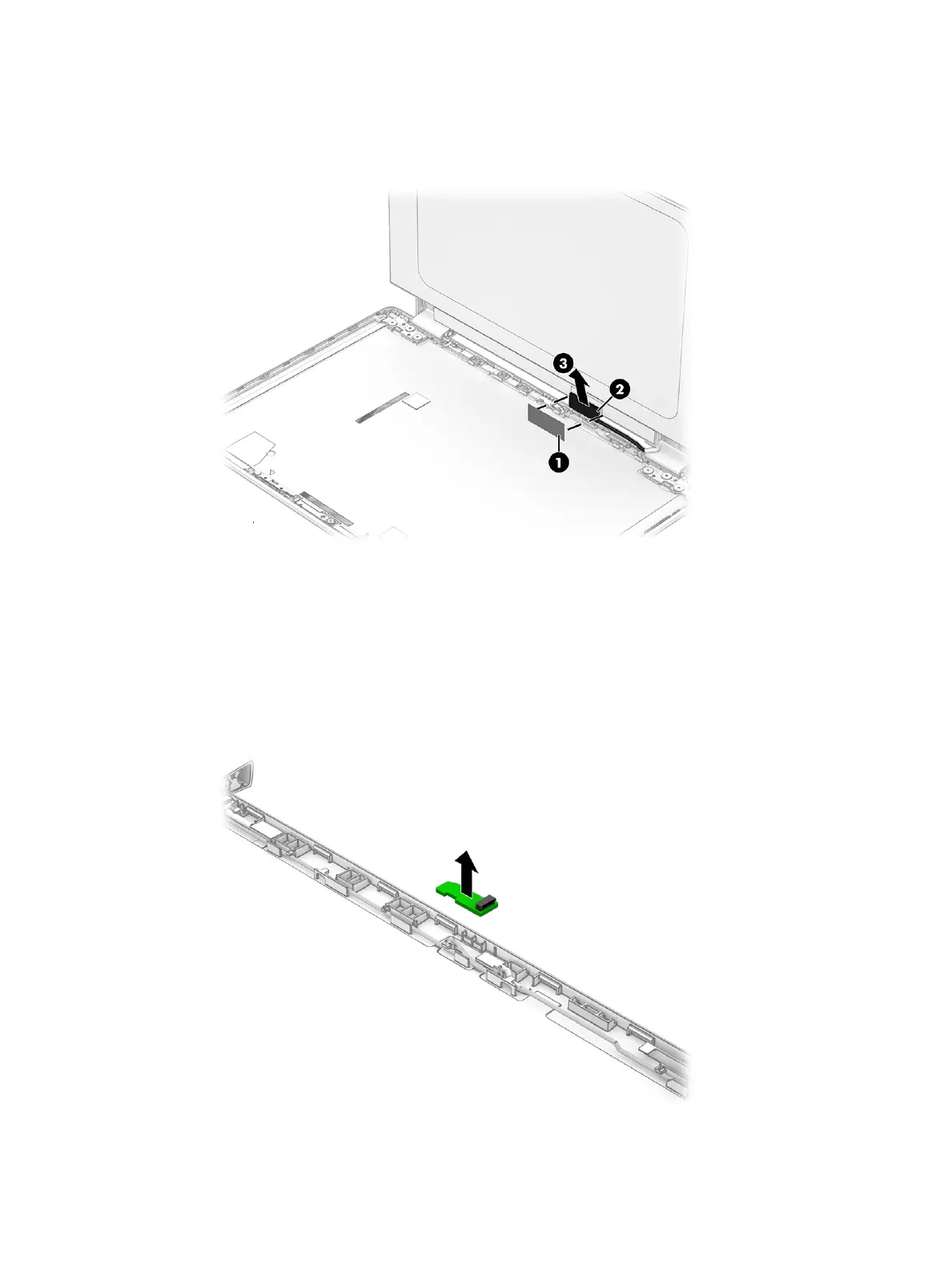

f. Disconnect the display panel cable (3) from the display panel.
The display panel cable is available using spare part number M15310-001 and includes the G-sensor
cable.
13. If you need to replace the G-sensor module:
a. Remove the display bezel.
b. Remove the display panel.
c. Detach the G-sensor module from the display back cover. (The G-sensor module is attached to the
display back cover with double-sided adhesive.)
The G-sensor module is available using spare part number M15308-001.
14. If you need to replace the display hinges:
42 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
