Reverse this procedure to install the USB/digital media board.
Bluetooth module cable
NOTE: The Bluetooth module cable is included in the Cable Kit, spare part number 487138-001.
Before removing the Bluetooth module cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
Battery on page 46).
5. Remove the following:
a. Hard drive (see
Hard drive on page 52)
b. Optical drive (see
Optical drive on page 55)
c. Keyboard (see
Keyboard on page 60)
d. Switch cover (see
Switch cover on page 65)
e. Display assembly (see
Display assembly on page 74)
f. Top cover (see
Top cover on page 80)

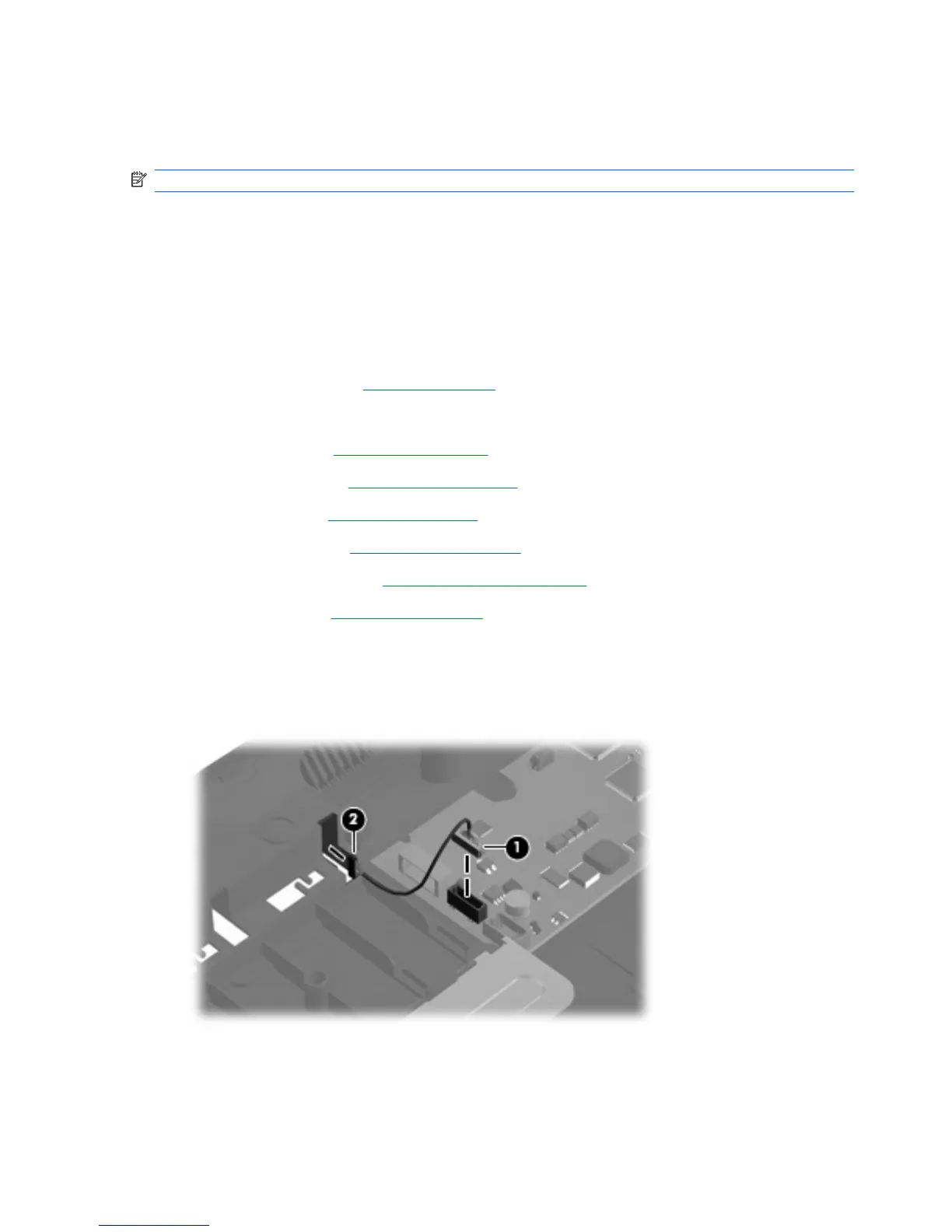

Remove the Bluetooth module cable:
1. Disconnect the Bluetooth module cable (1) from the system board.
2. Remove the Bluetooth module cable (2) from the opening built into the base enclosure.
3. Remove the Bluetooth module cable.
Reverse this procedure to install the Bluetooth module cable.
90 Chapter 4 Removal and replacement procedures
