USB/digital media board
Description Spare part number
USB/digital media board (includes cable) 486249-001
Before removing the USB/digital media board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
Battery on page 46).
5. Remove the following:
a. Hard drive (see
Hard drive on page 52)
b. Optical drive (see
Optical drive on page 55)
c. Keyboard (see
Keyboard on page 60)
d. Switch cover (see
Switch cover on page 65)
e. Display assembly (see
Display assembly on page 74)
f. Top cover (see
Top cover on page 80)

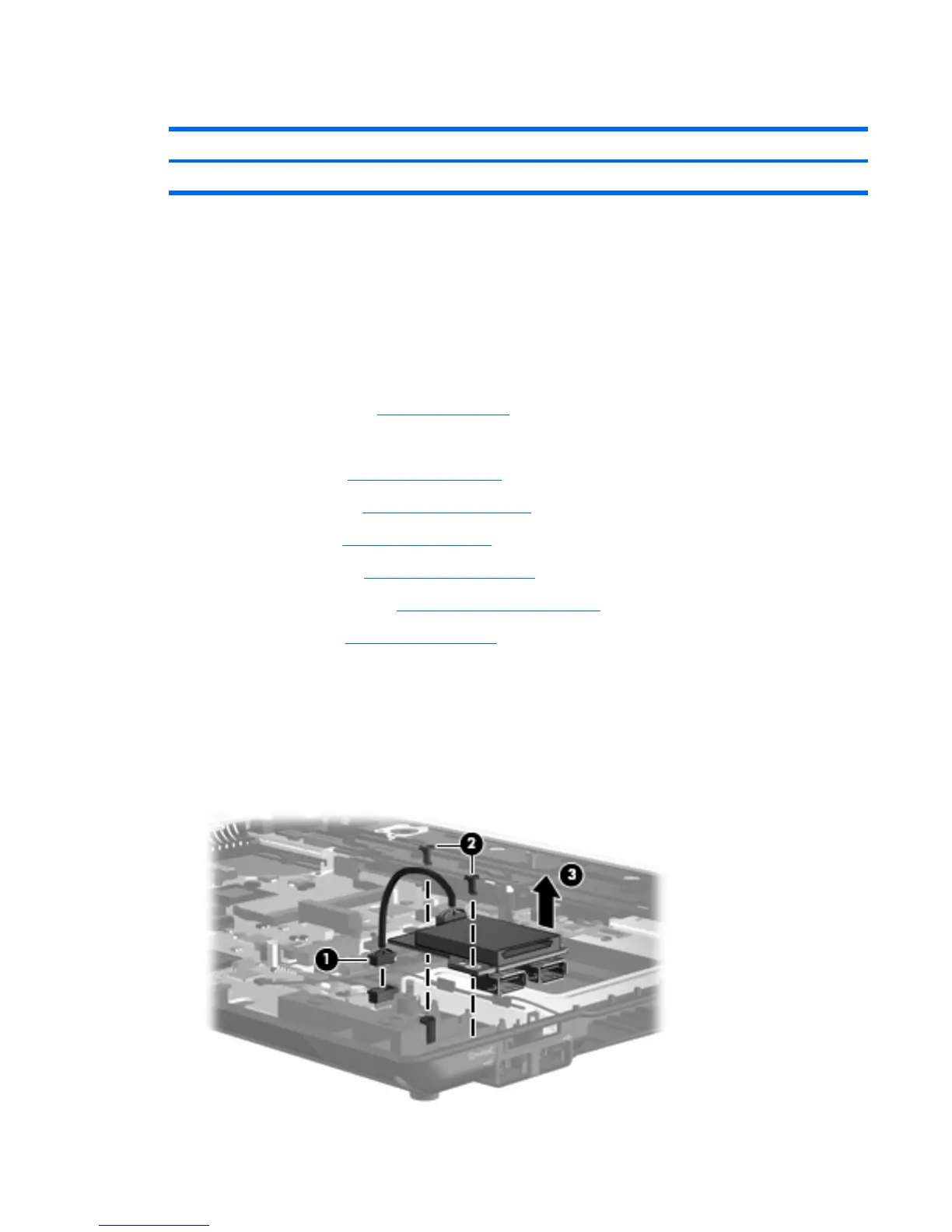

Remove the USB/digital media board cable:
1. Disconnect the USB/digital media board cable (1) from the system board.
2. Remove the two Phillips PM2.5×5.0 screws (2) that secure the USB/digital media board to the base
enclosure.
3. Remove the USB/digital media board (3).
Component replacement procedures 89
