Top cover
Description Spare part number
Top cover 487140-001
Before removing the top cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 46).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 52)
b. Optical drive (see
Optical drive on page 55)
c. Keyboard (see
Keyboard on page 60)
d. Switch cover (see
Switch cover on page 65)
e. Display assembly (see
Display assembly on page 74)
Remove the top cover:
1. Turn the computer upside down, with the front toward you.

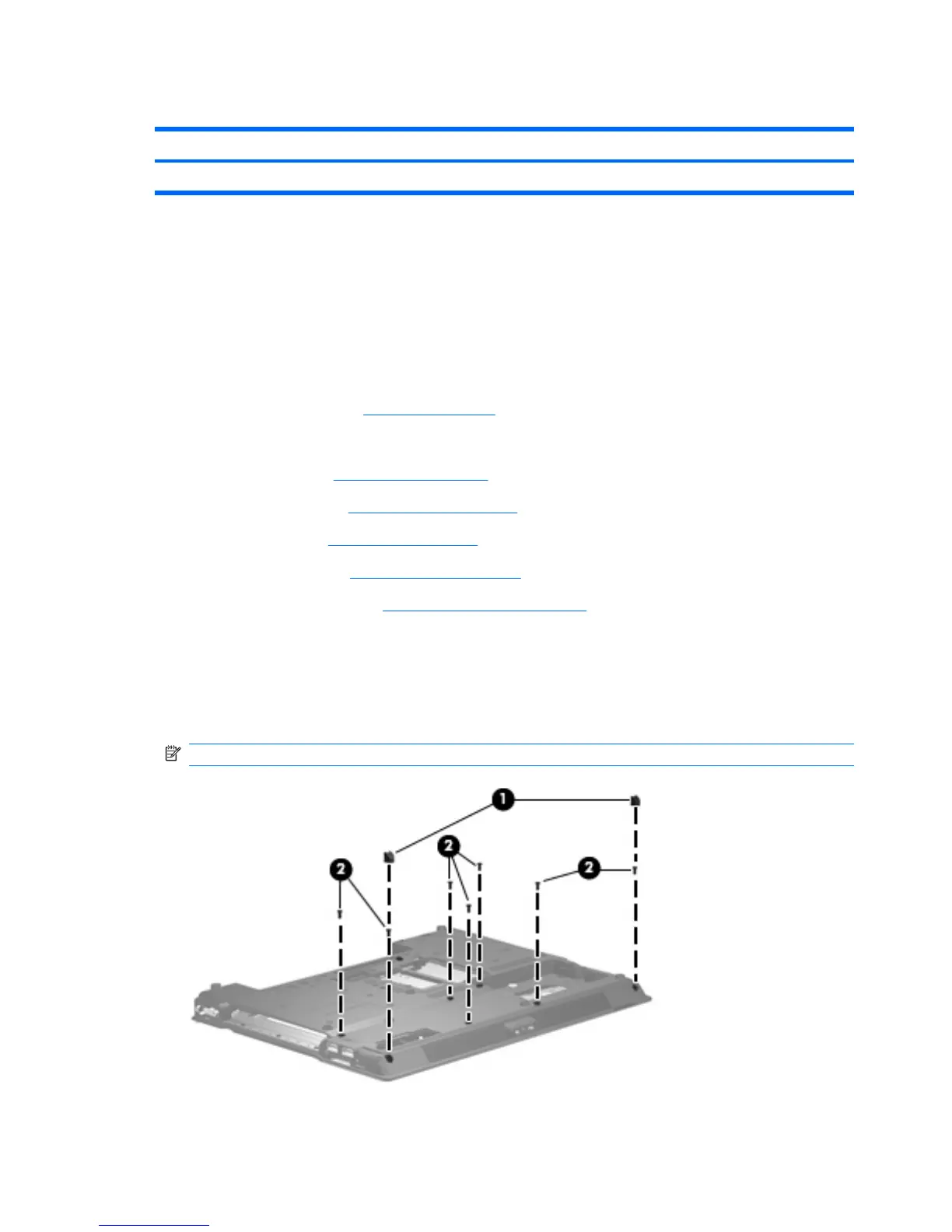

2. Remove the two rubber screw covers (1) and the seven Torx8 T8M2.5×9.0 screws (2) that secure
top cover to the base enclosure.
NOTE: All rubber screw covers are included in the Rubber Kit, spare part number 487145-001.
80 Chapter 4 Removal and replacement procedures
