HP Compaq d330 DT - Chapter 4 System Support

Hardware Reference Guide www.hp.com E-5
Port Security Bracket
Removing the Port Security Bracket

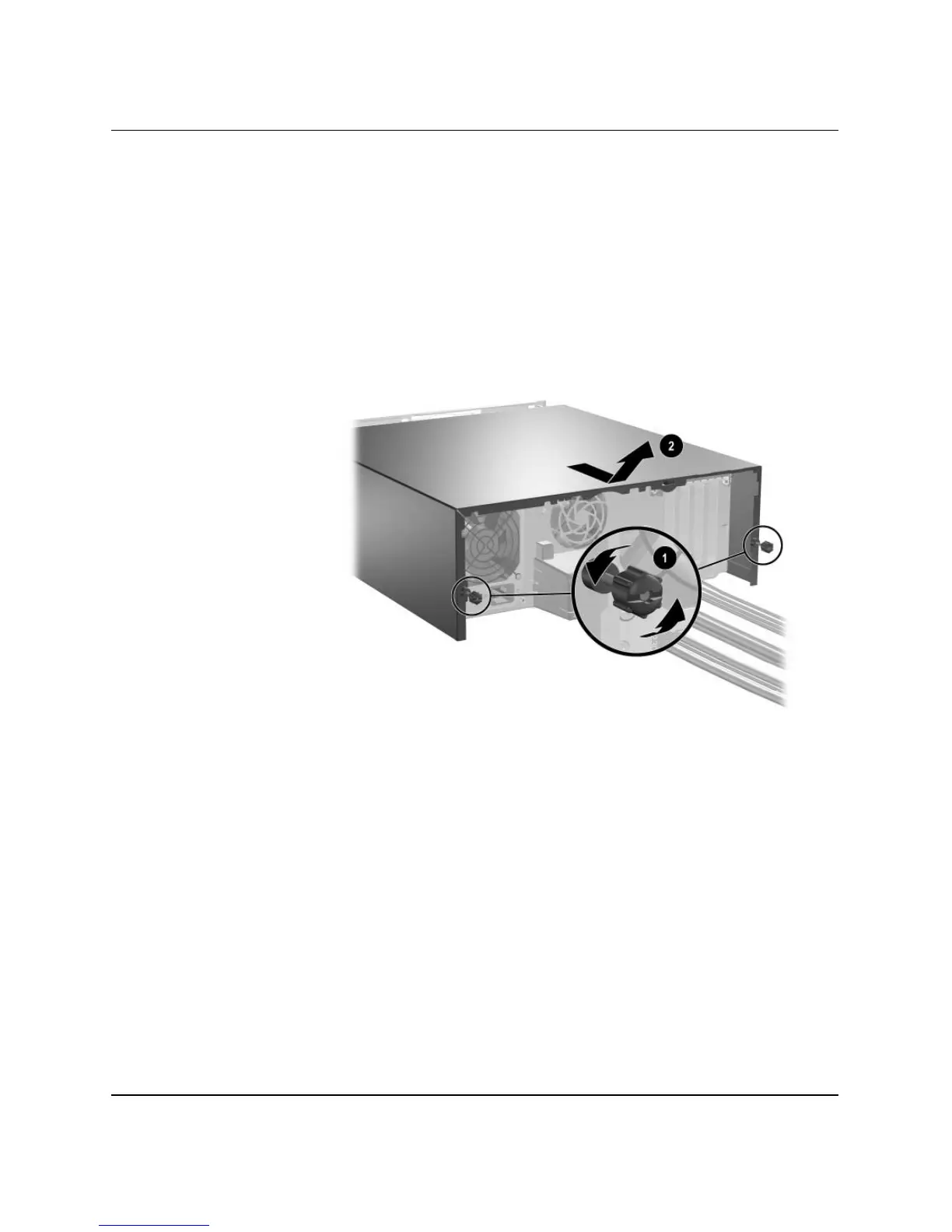

1. Loosen the two captive thumbscrews that secure the cover to the
computer chassis 1.
2. Slide the cover back about 1 inch (2.5 cm), then lift it up and off
the unit 2.
