6–22 437804-001 Service Reference Guide, dc5700
Removal and Replacement Procedures— Microtower (MT) Chassis

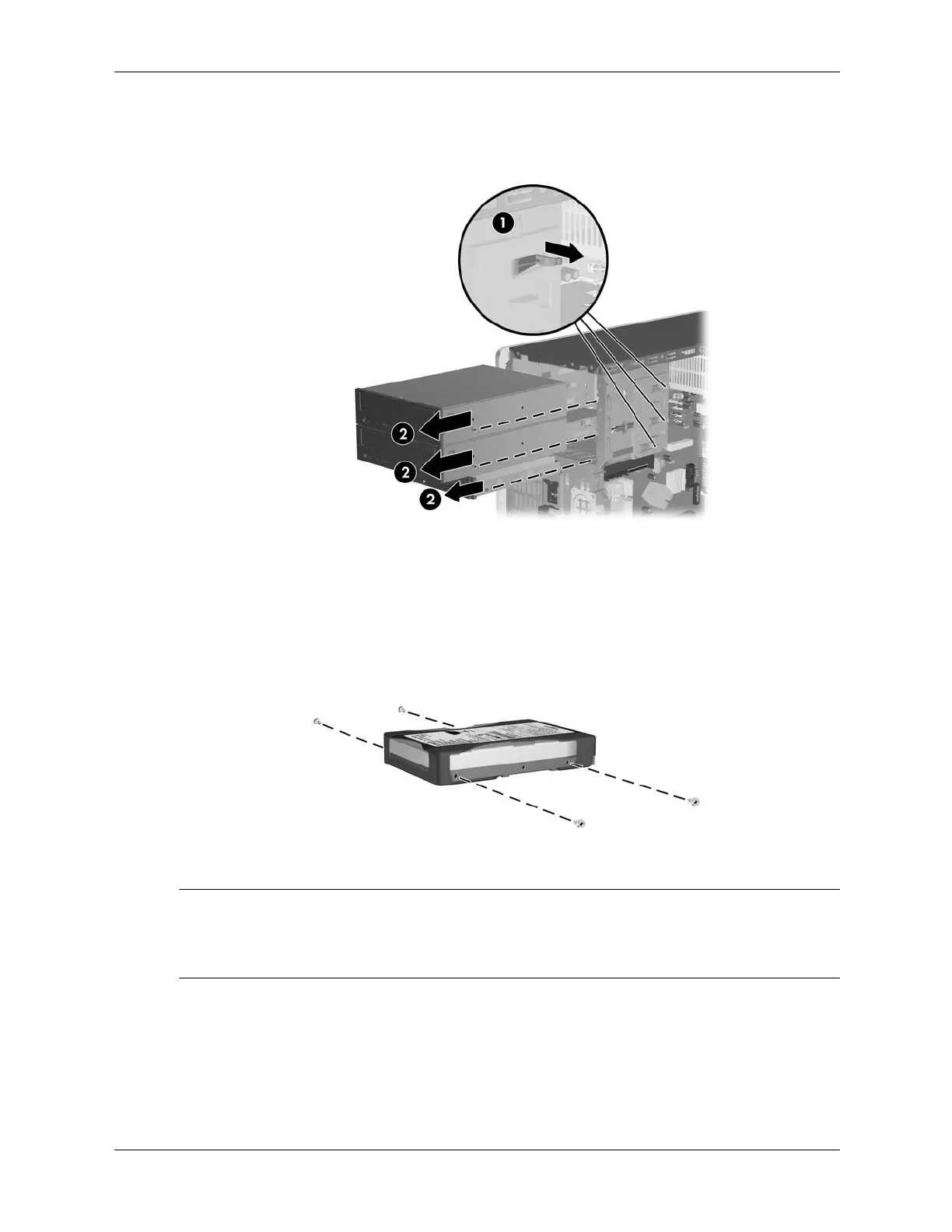

7. Release the drive by pulling the green release tab away from the drive 1 and sliding the drive
out of the bay 2.
8. Remove the four guide screws (two on each side) from the old drive. You will need these
screws to install a new drive.
9. Install the four guide screw (two on each side) that were removed from the old drive into the
new drive. The screws help guide the drive into its proper position in the bay. Extra guide
screws atre provided on the front of the chassis under the front bezel.
There are a total of eight extra guide screws on the front of the chassis. Four have 6-32 standard
threads and four have M3 metric threads. Standard screws are used for hard drives and have a
silver finish. Metric screws are used for all other drives and have a black finish. Make sure to
install the appropriate guide screws into the drive.
