HP Compaq dc5700 MT User Manual

Service Reference Guide, dc5700 437804-001 6–23
Removal and Replacement Procedures— Microtower (MT) Chassis

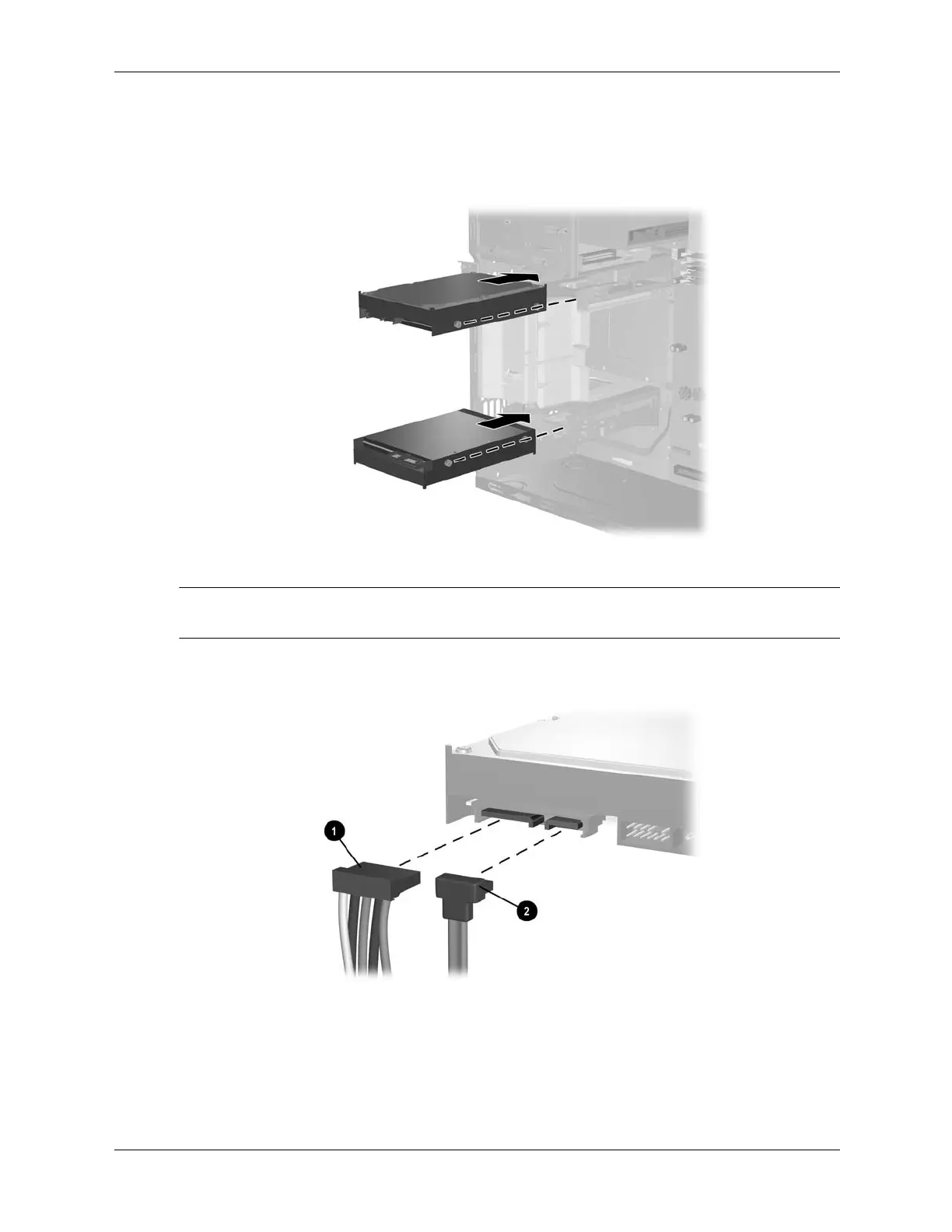

10. Slide the drive into the drive bay, making sure to align the guide scews with the guide slots,
ubtil the drive snaps into place. The upper bay is for the primatry hard drive. The bottom bay
is for the optional secondary hard drive.
11. Connect the power 1 and data 2 cables to the back of the hard drive.
✎
If you are installing a primary hard drive, use the power connector labeled P5. If you are
installing a secondary hard drive use the power cable labeled P4.
12. If installing a new drive, connect the oppposite end of the data cable to the appropriate
system board connector.

HP Compaq dc5700 MT Specifications

General

Chipset	Intel Q965 Express
Audio	Integrated High Definition audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Power Supply	300W
Form Factor	Microtower
Processor	Intel Pentium D, Intel Celeron D
Memory	Up to 4 GB DDR2
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, VGA, serial, parallel
Operating System	Windows XP Professional, Windows Vista
Storage	SATA Hard Drive
