Removing Bezel Blanks
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1. Remove the front bezel.
2. Push the two retaining tabs that hold the bezel blank in place towards the outer left edge of the
bezel (1) and pull the bezel blank inwards to remove it (2).

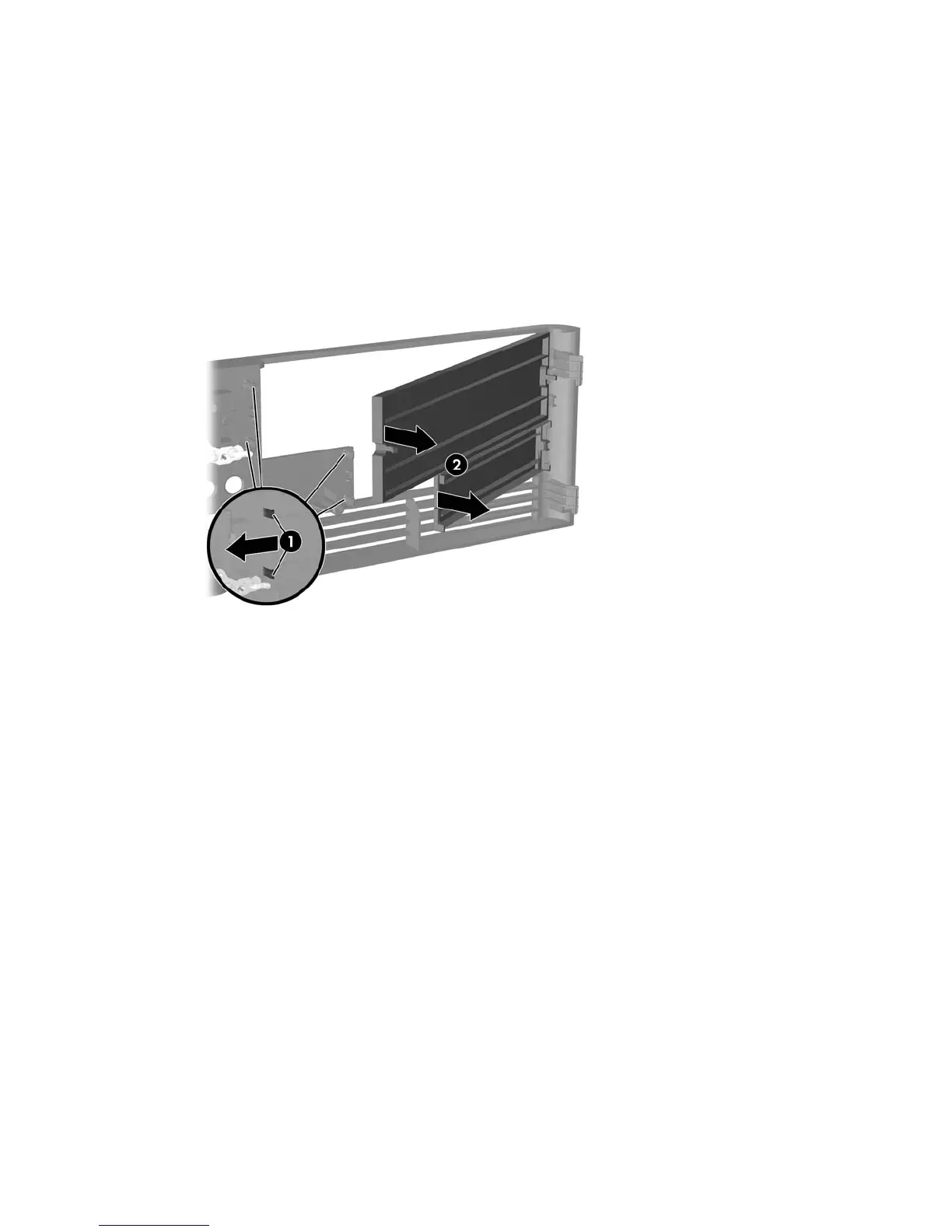

Figure 2-5 Removing a Bezel Blank
3. Replace the front bezel.
ENWW Removing Bezel Blanks 13
