9. Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Pull the slot cover straight up then back toward the inside
of the chassis.

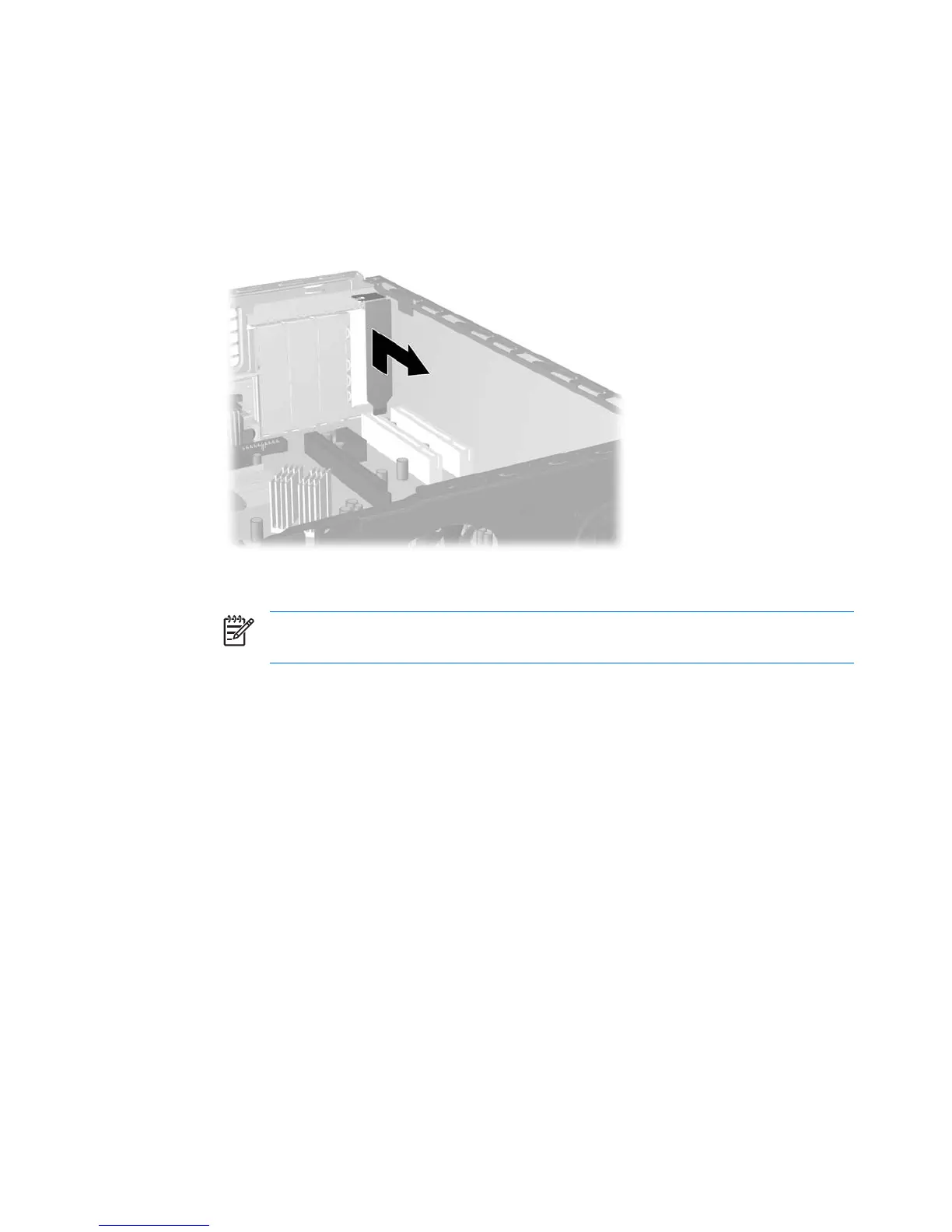

Figure 2-13 Removing an Expansion Slot Cover
NOTE Before removing an installed expansion card, disconnect any cables that may
be attached to the expansion card.
22 Chapter 2 Hardware Upgrades ENWW
