8. Install two M3 metric guide screws in the lower holes on each side of the drive. HP has provided
four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric
guide screws are black.
CAUTION Use only 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.
NOTE When replacing the drive, transfer the four M3 metric guide screws from the old
drive to the new one.

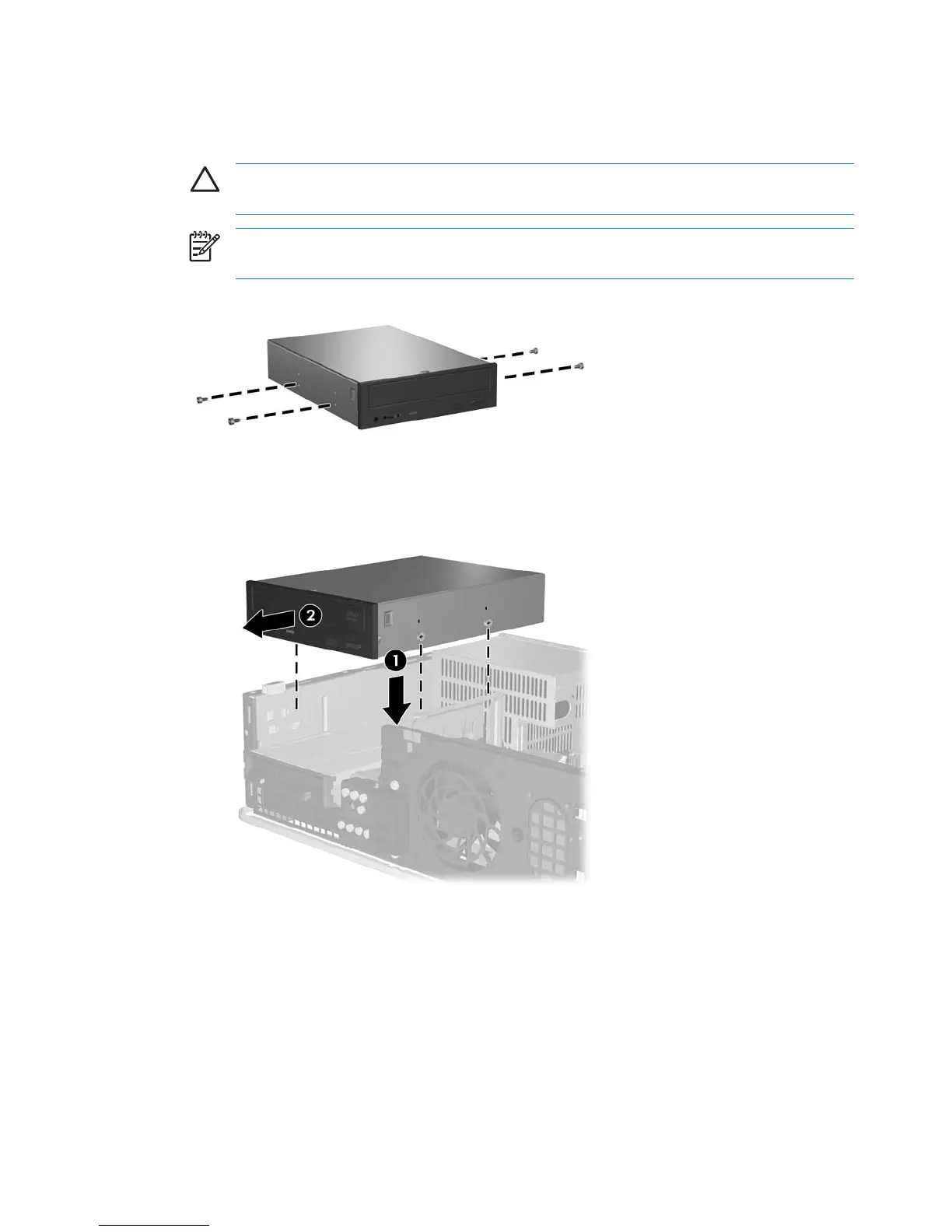

Figure 2-21 Installing Guide Screws in the Optical Drive
9. Align the guide screws on the drive with the slots on the chassis. Slide the drive all the way down
(1) then slide it forward (2) until it locks into place.
Figure 2-22 Installing the Optical Drive
30 Chapter 2 Hardware Upgrades ENWW
