4. Align the guide screws with the slots on the chassis. Tilt the drive so that the left side is lower than
the right side (1) and slide the left guide screws into the slots then the right guide screws into the
slots (2).

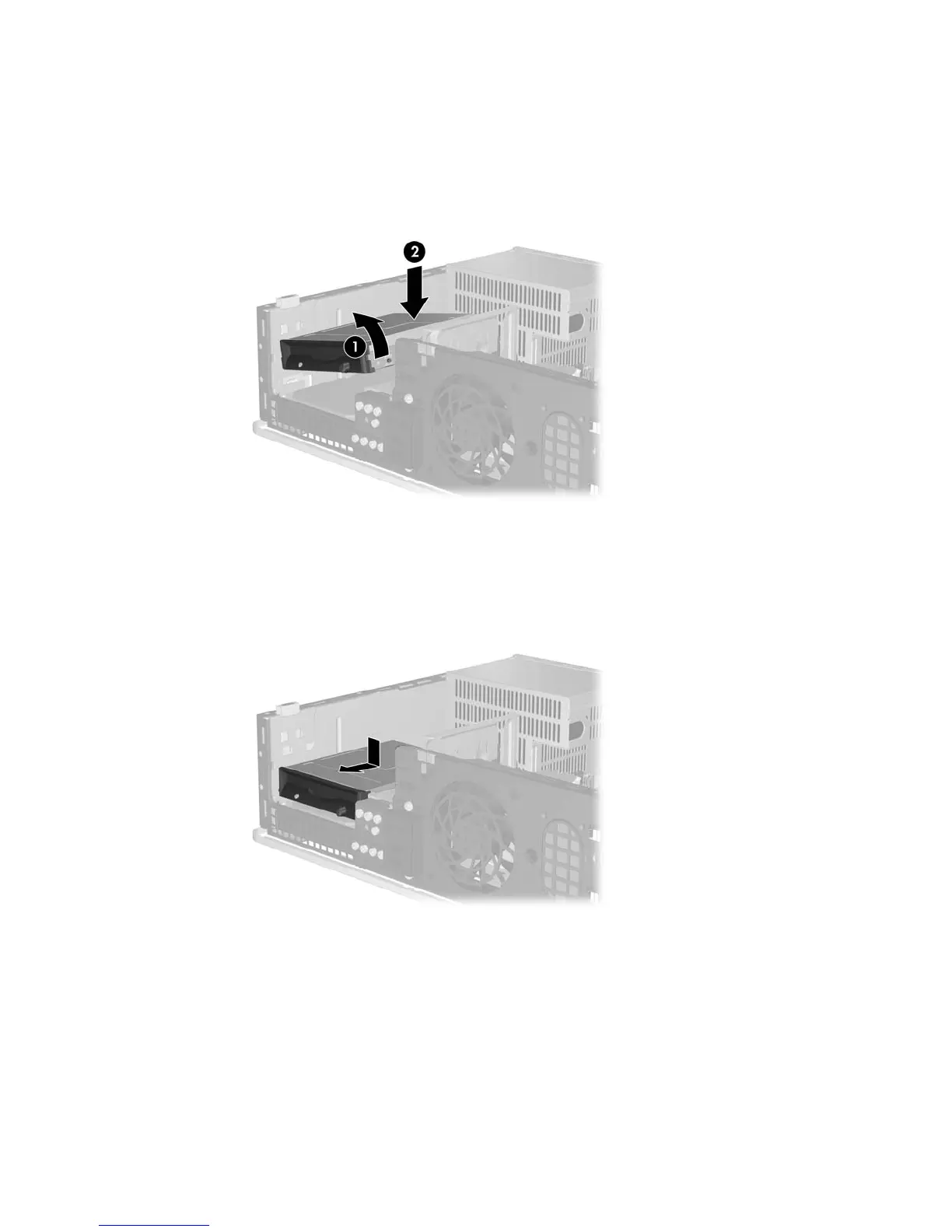

Figure 2-28 Installing a Diskette Drive
5. Slide the drive all the way down then slide it forward until it locks into place.
Figure 2-29 Installing a Diskette Drive
ENWW Installing and Removing Drives 35
