8. Press down on the lever to the left of the optical drive (1), slide the optical drive back until it stops,
and lift it straight up and out the drive bay (2).
NOTE Hold the front and back of the drive when lifting it out of the drive bay.

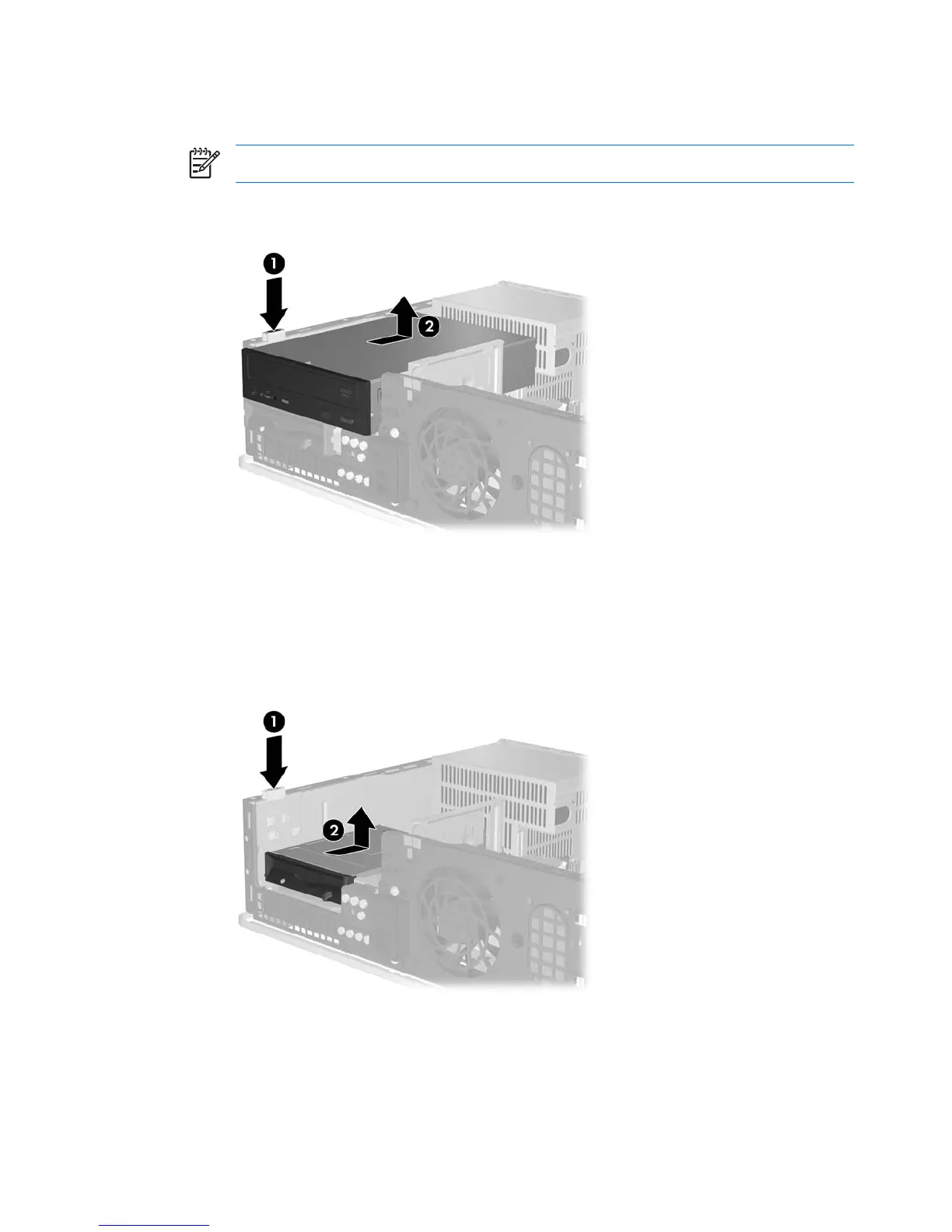

Figure 2-31 Removing the Optical Drive
9. Disconnect the power and data cables from the back of the diskette drive.
10. Press down on the lever to the left of the diskette drive (1), slide the diskette drive back until it stops,
and lift it straight up (2).
Figure 2-32 Disengaging the Diskette Drive
38 Chapter 2 Hardware Upgrades ENWW
