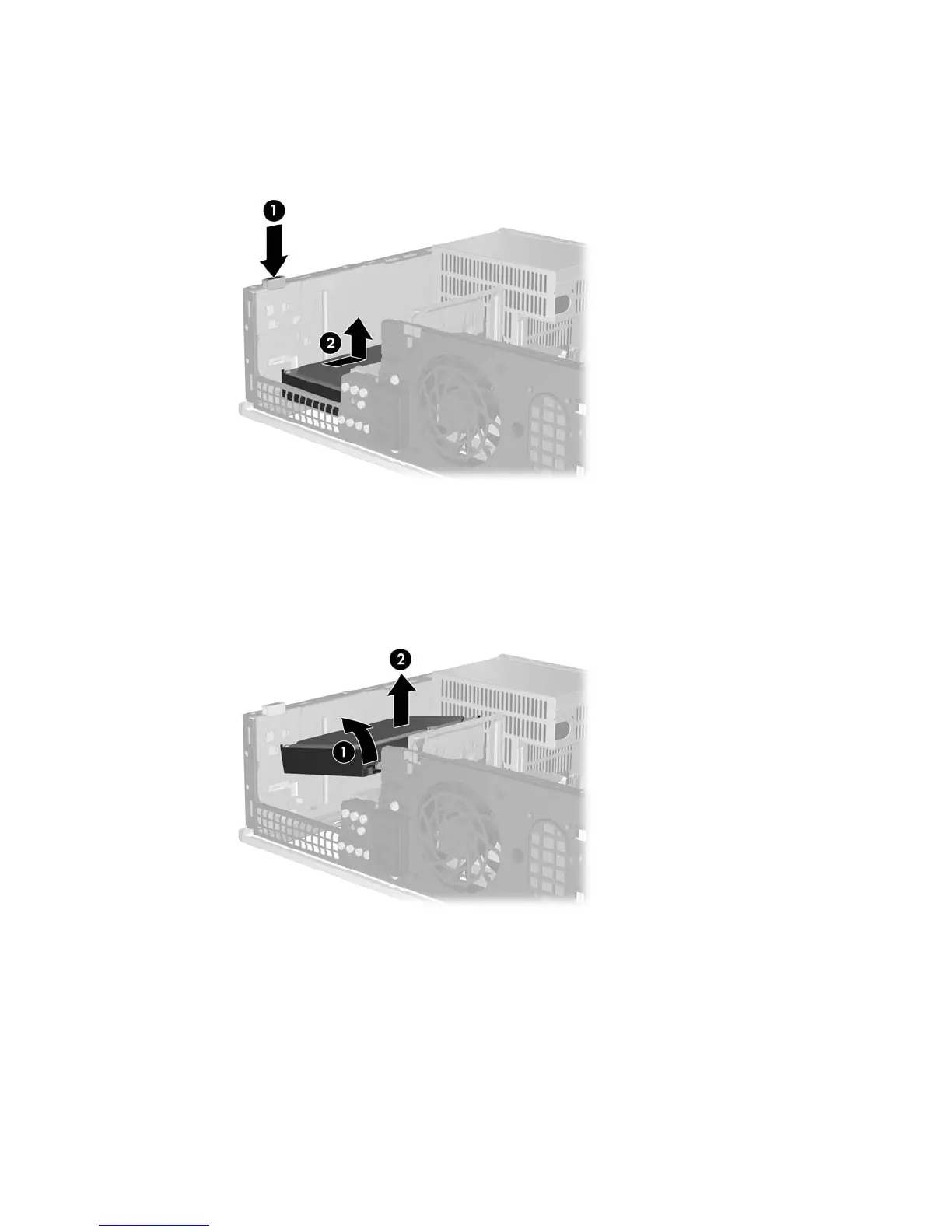

13. Press down on the lever to the left of the hard drive (1), slide the drive back until it stops, and lift it
straight up (2).
Figure 2-35 Disengaging the Hard Drive
14. Tilt the left side of the hard drive down slightly (1) so that the top lips of the guide screws are not
caught behind the metal frame, then pull the drive out of the drive bay (2).
Figure 2-36 Removing the Hard Drive
15. To install a hard drive, reverse the above procedure.
40 Chapter 2 Hardware Upgrades ENWW
