5-24 361834-001 Technical Reference Guide
Input/Output Interfaces
5.6.4 Keyboard/Pointing Device Interface Connector
The legacy-light model provides separate PS/2 connectors for the keyboard and pointing device.
Both connectors are identical both physically and electrically. Figure 5-7 and Table 5-19 show
the connector and pinout of the keyboard/pointing device interface connectors.

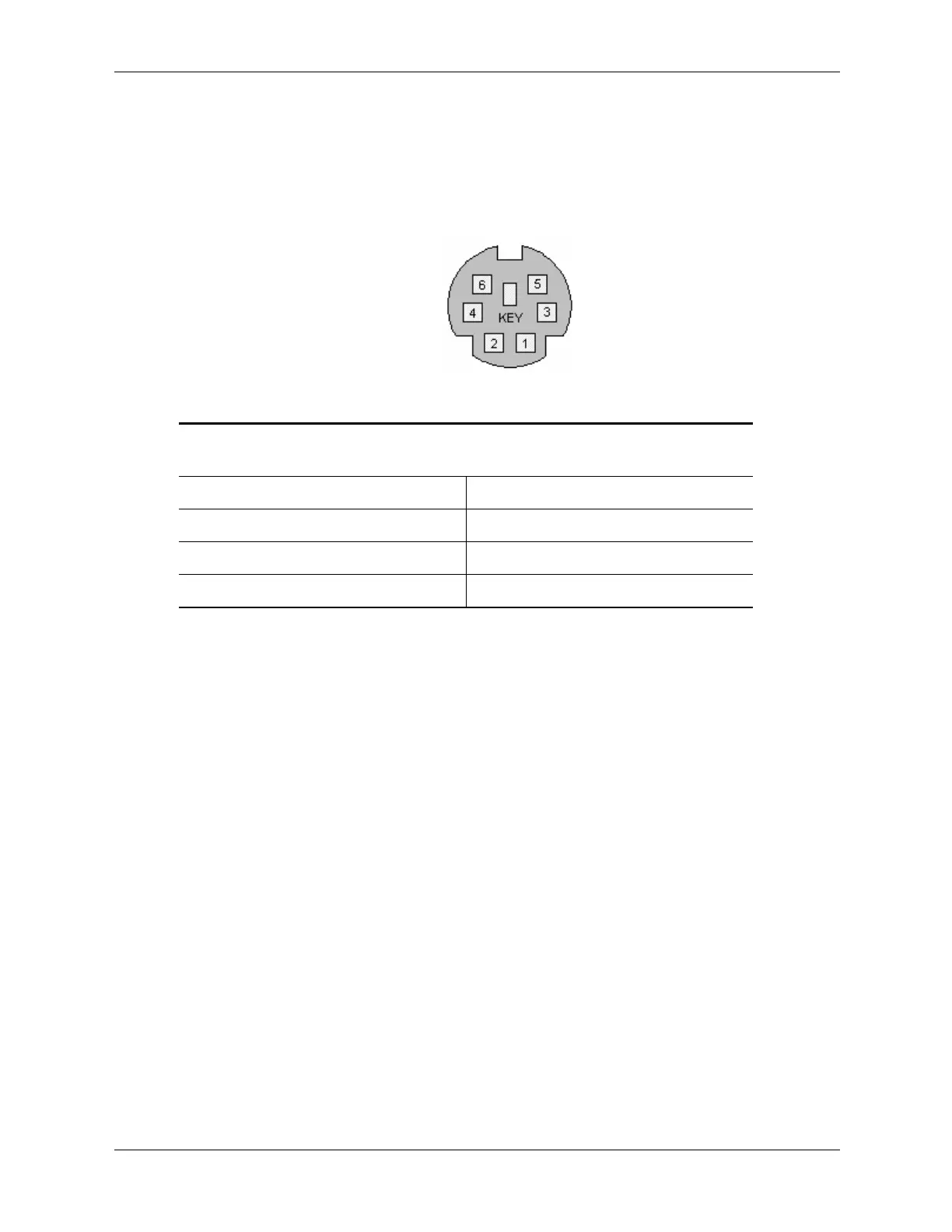

Figure 5-7. PS/2 Keyboard or Pointing Device Interface Connector (as viewed from rear of chassis)
Table 5-19.
Keyboard/Pointing Device Connector Pinout
Pin Signal Description Pin Signal Description
1DATA Data 4+ 5 VDCPower
2 NC Not Connected 5 CLK Clock
3 GND Ground 6 NC Not Connected
