Technical Reference Guide 361834-001 2-15
System Overview
2.3.2 Chassis Layouts
This section describes the internal layouts of the chassis. For detailed information on servicing
the chassis refer to the multimedia training and/or the maintenance and service guide for these
systems.
UIltra Slim Desktop Chassis
The Ultra Slim Desktop (USDT) chassis used for the HP Compaq dc7100 models uses a
compact, space-saving form factor.

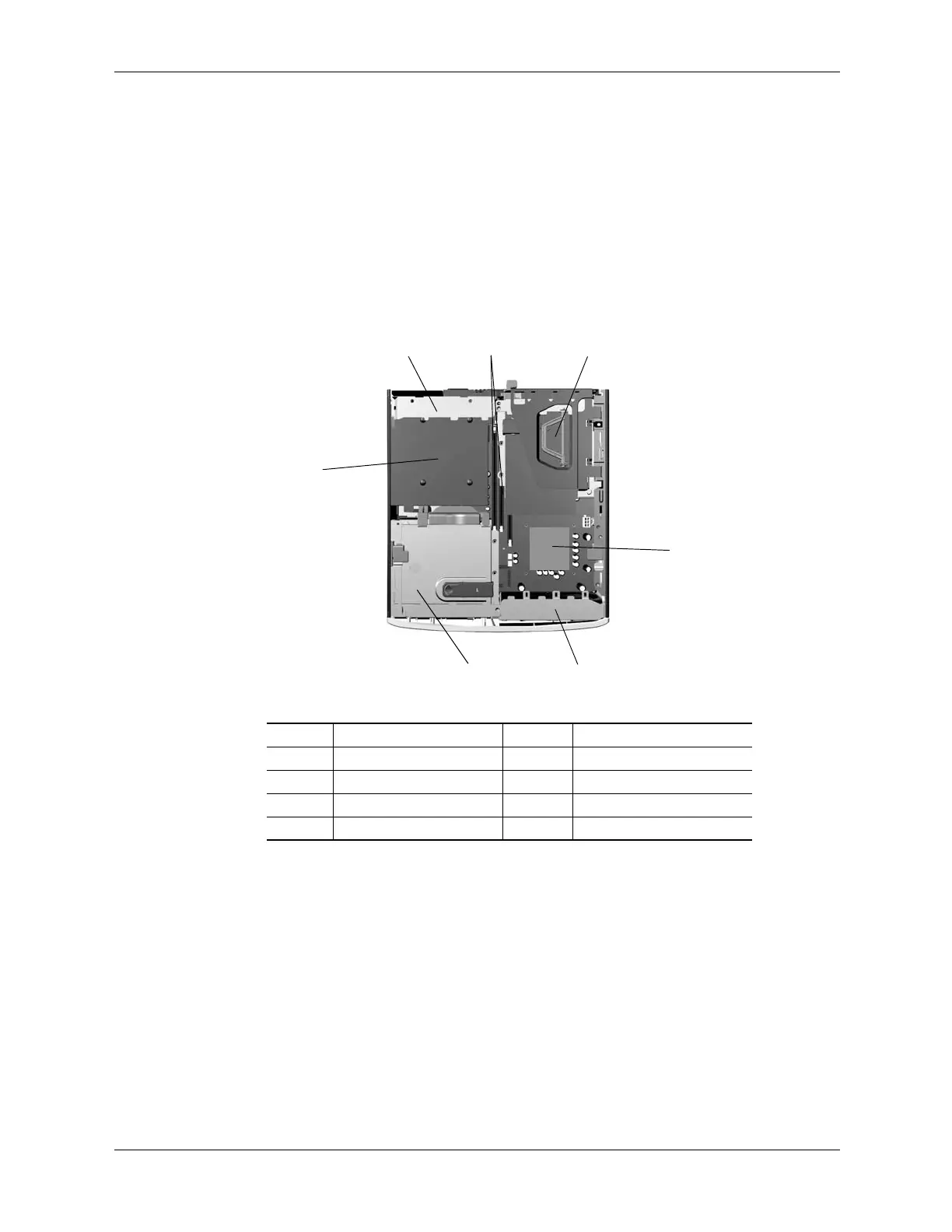

Figure 2-12. USDT Chassis Layout, TopView
Item Description Item Description
1 Power supply assembly 5 Chassis fan
2 DIMM sockets (3) 6 MultiBay device
3 PCI card cage 7 Hard drive
4 Processor socket -- --
1
3
4
5
6
2
7
