Technical Reference Guide 361834-001 2-19
System Overview
2.3.3 Board Layouts
Figures 2-16 through 2-18 show the system and expansion boards for these systems.

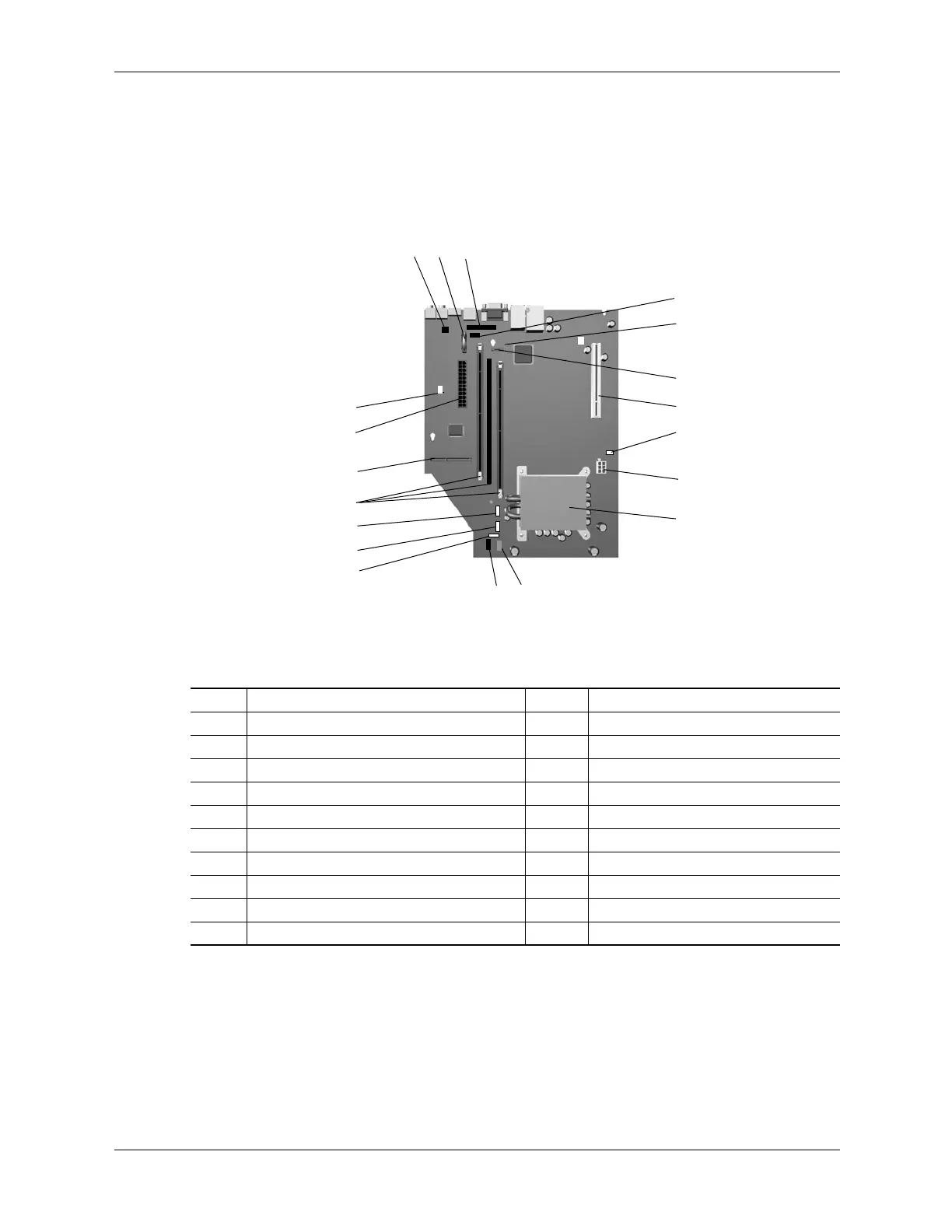

Figure 2-16. USDT System Board
Item Description Item Description
1 Hood sense header 11 Power button, power LED, HD LED header
2 Battery 12 Front panel audio connector
3 Parallel port option header 13 Front panel USB port connector
4 Serial port A header 14 Chassis fan, secondary connector
5 Password clear jumper header 15 Chassis fan, primary connector
6 SATA #0 header 16 DIMM sockets (3)
7 PCI 2.3 slot 17 MultiBay riser connector
8 Intenal speaker header 18 Power supply connector
9 Power supply (VccP) connector 19 Auxiliary audio input connector
10 Processor socket -- --
q
6
7
8
-
9
w
r
e
t
y
u
i
o
1
2
3
4
5
Note: See USDT rear chassis illustrations for externally accessible I/O connectors.

HP Compaq dc7100 SFF Specifications

General

Processor Speed	Up to 3.8 GHz
Graphics	Integrated Intel Graphics Media Accelerator 900
Audio	Integrated AC'97 audio
Form Factor	Small Form Factor (SFF)
Power Supply	240W
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR
Storage	40 GB to 160 GB HDD
Optical Drive	CD-ROM or DVD-ROM
Network	Integrated Intel Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, serial, parallel, VGA
Operating System	Windows XP Professional
