7-14 361834-001 Technical Reference Guide
Power and Signal Distribution
NOTES:
See Figure 7-7 for header pinout.

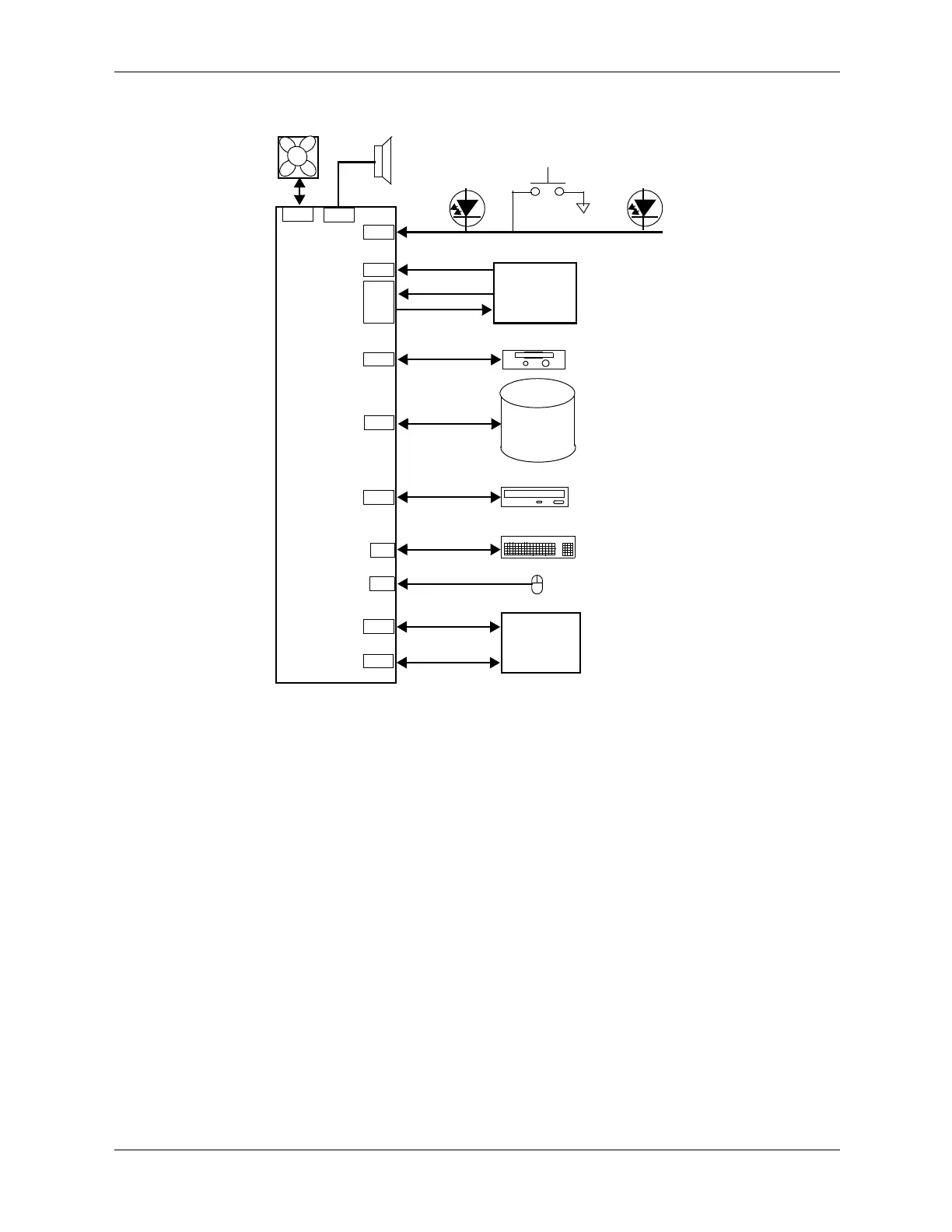

Figure 7-8. SFF / ST Form Factor Signal Distribution Diagram
P8
+12 VccP
Power LED
P1
Power
P6
P5
P3
Supply
Assembly
+3.3, +5, +12 VDC
Front
Mouse
PS On, POK
Hard Drive
SATA
Keyboard
P60
P20
P10
P23
IDE I/F
HD LED
System
Chassis Fan
Speaker
CD-ROM
P24
Panel
I/O Module
Board
356033-001
Power On
Diskette
J66
J67
Diskette I/F
IDE I/F
USB 6,7 Tx/Rx
Kybd data
Mic In, HP Out
Audio
Mouse data
