2-8 361834-001 Technical Reference Guide
System Overview
Figure 2-5 shows the front panel components of the microtower (uT) form factor.

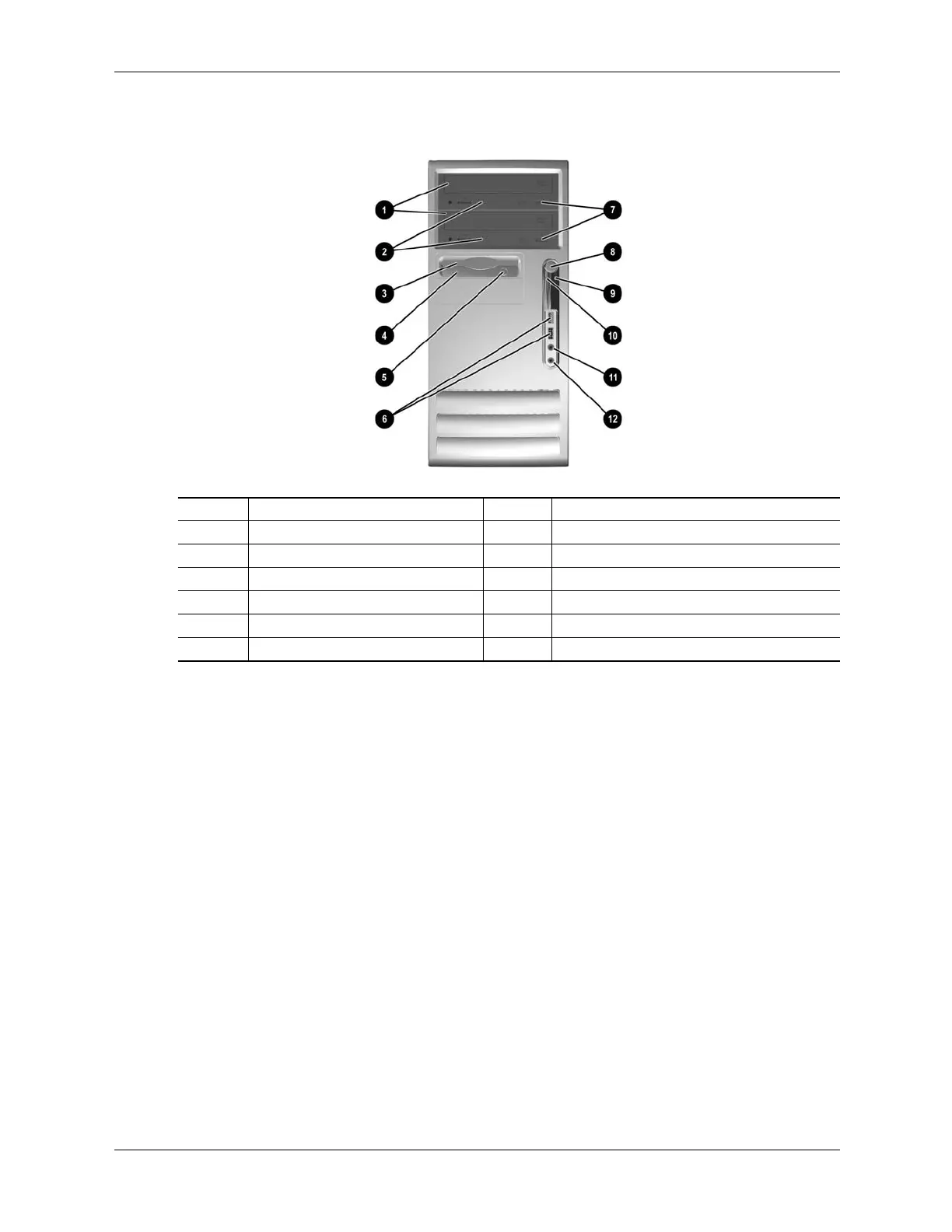

Figure 2-5. HP Compaq dx6100 MT Front View
Item Description Item Decription
1 CD-ROM drive 7 CD-ROM drive open/close button
2 CD-ROM drive activity LED 8 Power button
3 Diskette drive media door 9 Power LED
4 Diskette drive activity LED 10 Hard drive activity LED
5 Diskette drive eject button 11 Headphone audio Out jack
6 USB ports 7, 8 12 Microphone audio In jack
