System Overview
Figure 2-9 shows the rear views of the ST form factor. Two configurations are available:
■ Without cardcage - Accepts two half-height PCI 2.3 cards, two half-height PCI Express cards
■ With card cage - Accepts two full-height PCI 2.3 cards only

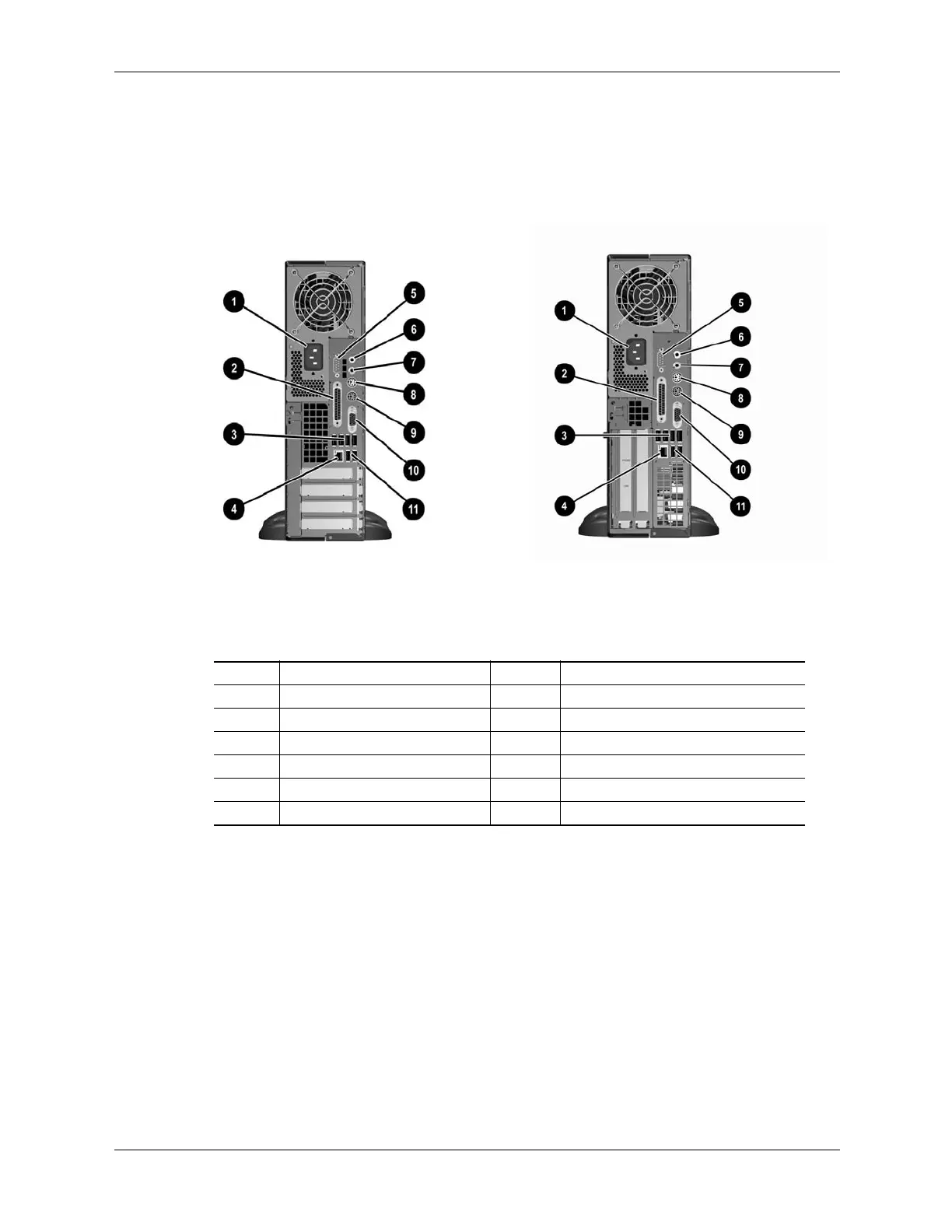

Figure 2-9. HP Compaq dc7100 ST, Rear Views
ST chassis with card cage
ST chassis without card cage
Item Description Item Description
1 AC input connector 7 Line audio In
2 Parallel port (DB-25) 8 Keyboard connector (PS/2)
3 USB ports 3 - 6 9 Mouse connector (PS/2)
4 NIC (LAN) connector (RJ-45) 10 VGA monitor connector (DB-15)
5 Serial port (DB-9) 11 USB ports 1, 2
6 Headphone / Speaker audio Out -- --

HP Compaq dc7100 SFF Specifications

General

Processor Speed	Up to 3.8 GHz
Graphics	Integrated Intel Graphics Media Accelerator 900
Audio	Integrated AC'97 audio
Form Factor	Small Form Factor (SFF)
Power Supply	240W
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR
Storage	40 GB to 160 GB HDD
Optical Drive	CD-ROM or DVD-ROM
Network	Integrated Intel Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, serial, parallel, VGA
Operating System	Windows XP Professional
