HP Compaq dc7100 SFF User Manual

Technical Reference Guide 361834-001 2-23
System Overview

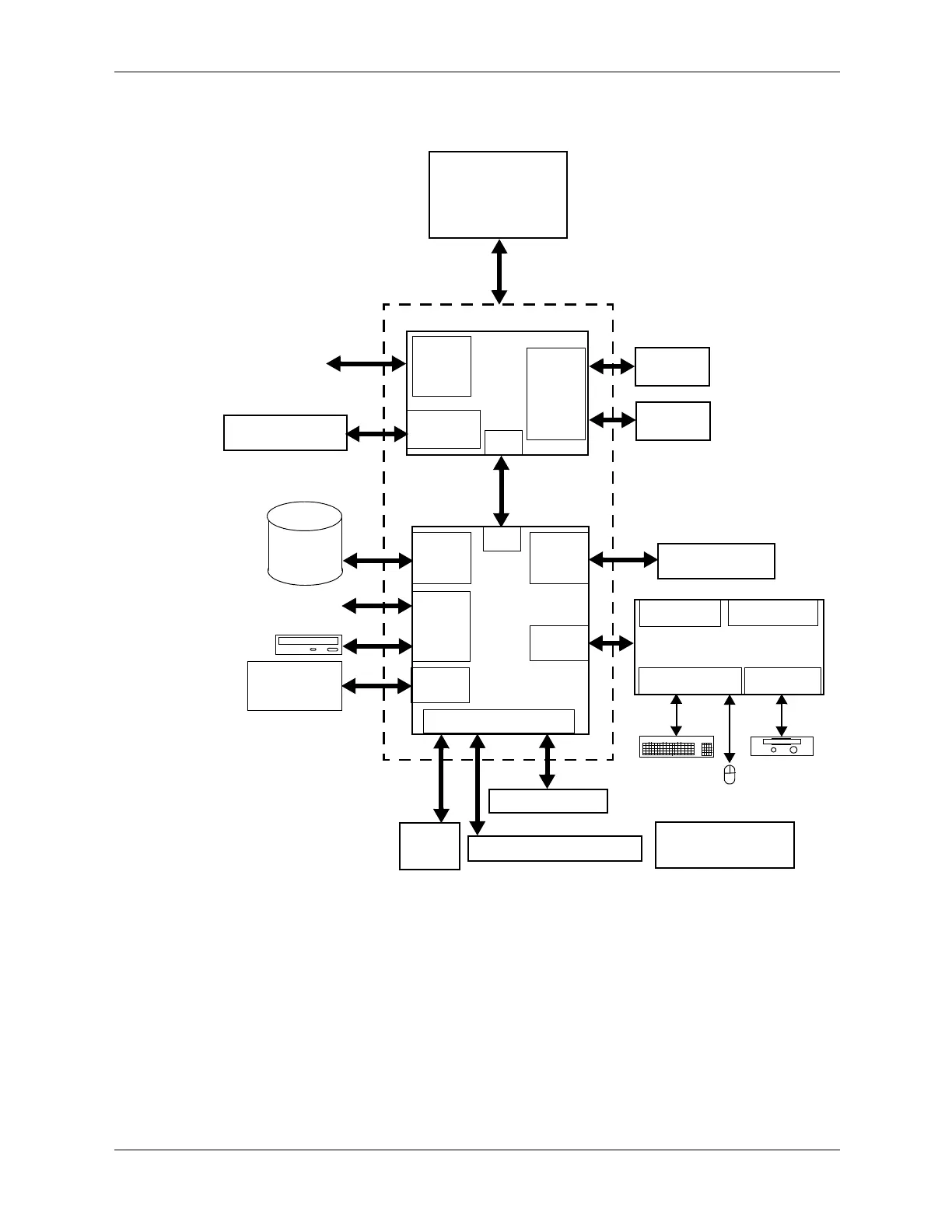

Figure 2-19 System Architecture, Block diagram
Parallel I/F [1]
Pentium 4
Processor
915G/GV Chipset
915 [2]
82801
GMCH
SDRAM
Cntlr
PCI Exp.
PEG I/F [1]
PCI Express
ICH6
SATA
I/F
USB
I/F
Ch A DDR
SDRAM
Ch B DDR
SDRAM
LPC47B397
I/O Cntlr.
Graphics
Cntlr.
RGB
Monitor
Hard Drive
USB Ports 1-8
Serial I/F [1]
Diskette I/F
Kybd-Mouse I/F
x16 slot (PEG)[1]
PCI Express x1 slot [1]
SATA
AC97 Audio
Subsystem
I/F
PATA
PCI 2.3 slot(s)
Keyboard
NIC
I/F
Mouse
Floppy
CD-ROM
AC97 I/F
LPC I/F
PCI Cntlr.
MultiBay Device
DMI
DMI
Power Supply
Note:
[1] SFF, ST, MT, and CMT form factors only.
[2] 82915GV for USDT form factor
82915G for SFF. ST. MT, and CMT form factors

HP Compaq dc7100 SFF Specifications

General

Processor Speed	Up to 3.8 GHz
Graphics	Integrated Intel Graphics Media Accelerator 900
Audio	Integrated AC'97 audio
Form Factor	Small Form Factor (SFF)
Power Supply	240W
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR
Storage	40 GB to 160 GB HDD
Optical Drive	CD-ROM or DVD-ROM
Network	Integrated Intel Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, serial, parallel, VGA
Operating System	Windows XP Professional
