Technical Reference Guide 361834-001 5-3
Input/Output Interfaces
IDE Bus Master Control Registers
The IDE interface can perform PCI bus master operations using the registers listed in Table 5-2.
These registers occupy 16 bytes of variable I/O space set by software and indicated by PCI
configuration register 20h in the previous table.
NOTE:
Unspecified gaps are reserved, will return indeterminate data, and should not be written to.
IDE (PATA) Connector
These systems provide a standard 40-pin connector for a primary IDE device and in most factory
configurations connects to a optical drive (CD or DVD). Some signals are re-defined for
UATA/33 and higher modes. Device power is supplied through a separate connector.

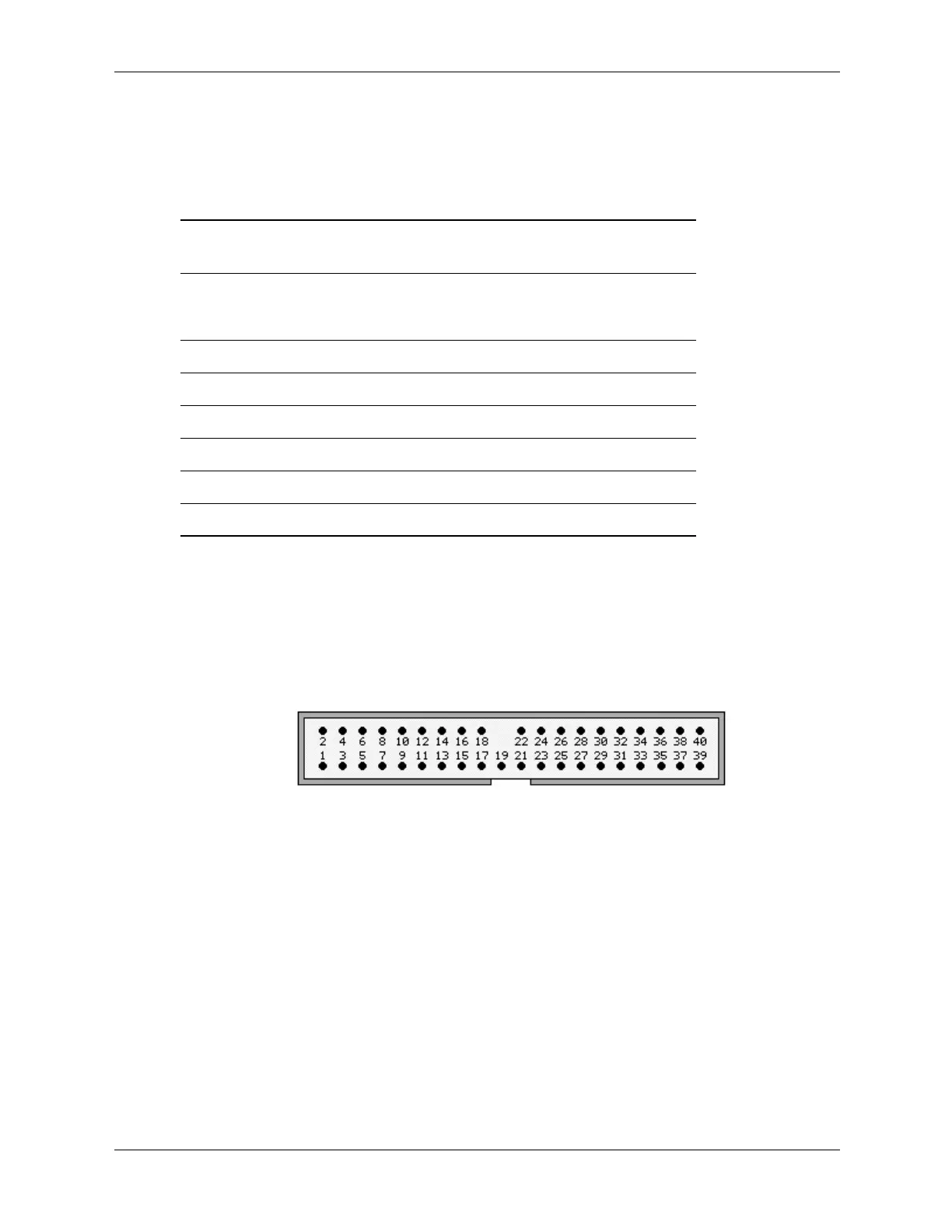

Figure 5-1. 40-Pin IDE (PATA) Connector.
Table 5-2.
IDE Bus Master Control Registers
I/O
Address
Offset
Size
(Bytes) Register
Default
Value
00h 1 Bus Master IDE Command (Primary) 00h
02h 1 Bus Master IDE Status (Primary) 00h
04h 4 Bus Master IDE Descriptor Pointer (Pri.) 0000 0000h
08h 1 Bus Master IDE Command (Secondary) 00h
0Ah 2 Bus Master IDE Status (Secondary) 00h
0Ch 4 Bus Master IDE Descriptor Pointer (Sec.) 0000 0000h

HP Compaq dc7100 SFF Specifications

General

Processor Speed	Up to 3.8 GHz
Graphics	Integrated Intel Graphics Media Accelerator 900
Audio	Integrated AC'97 audio
Form Factor	Small Form Factor (SFF)
Power Supply	240W
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR
Storage	40 GB to 160 GB HDD
Optical Drive	CD-ROM or DVD-ROM
Network	Integrated Intel Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, serial, parallel, VGA
Operating System	Windows XP Professional
