Input/Output Interfaces

5.2 SATA Interface

These systems provide one, three, or four serial ATA (SATA) interfaces that support tranfer rates

up to 3.0 Gb/s and RAID data protection functionality. The SATA interface duplicates most of

the functionality of the EIDE interface through a register interface that is equivalent to that of the

legacy IDE host adapter.

The ICH9 DO component includes Intel RAID migration technology that simplifies the

migration from a single hard to a RAID0 or RAID1 dual hard drive array without requiring OS

reinstallation. Intel Matrix RAID provides exceptional storage performance with increased data

protection for configurations using dual drive arrays. A software solution is included that

provides full management and status reporting of the RAID array, and the BIOS ROM also

supports RAID creation, naming, and deletion of RAID arrays.

The standard 7-pin SATA connector is shown in the figure below.

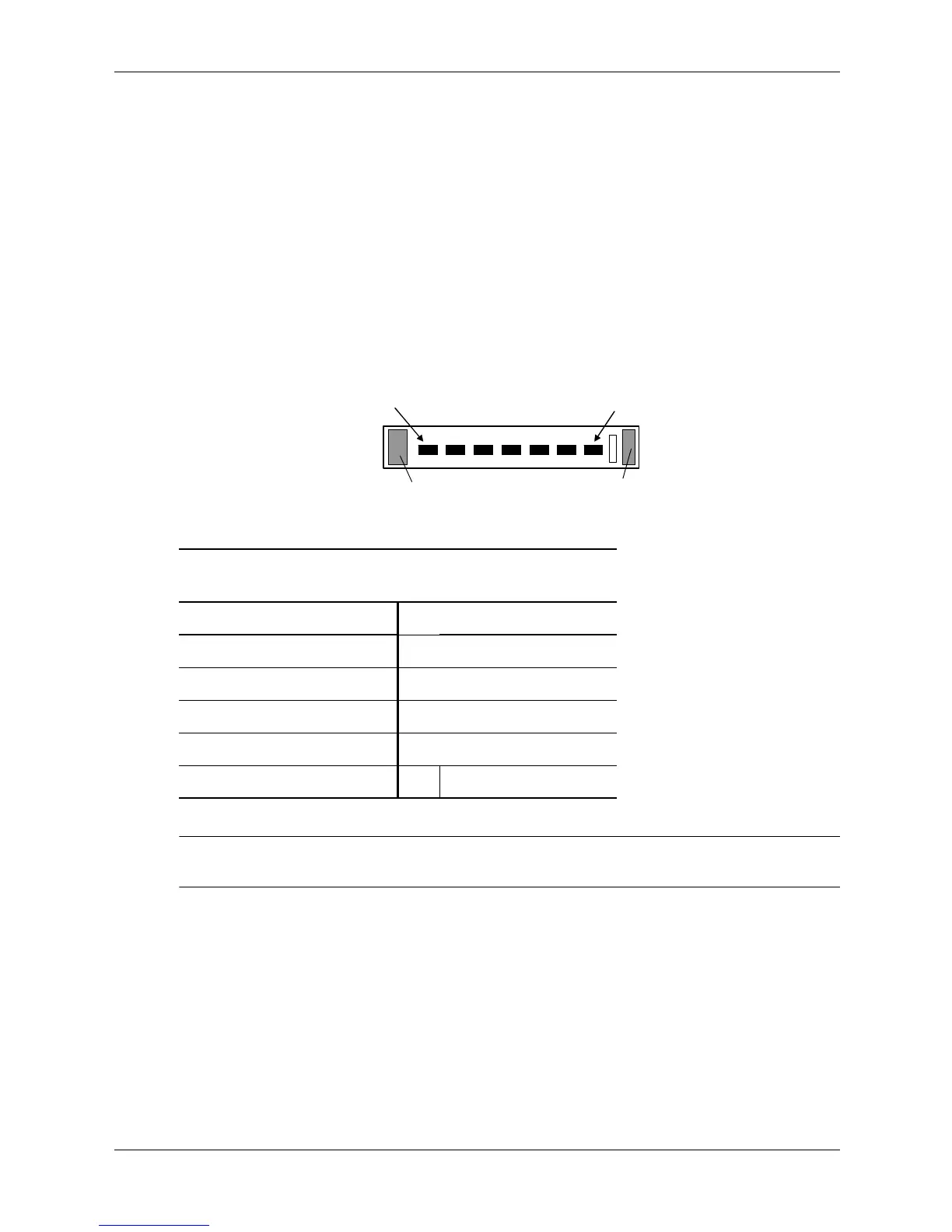

Figure 5-1. 7-Pin SATA Connector (P60-P63 on system board).

✎

The USDT system includes a notebook-type SATA connector (J102) that mates directly (i.e.,

without a cable) to a 2.5-inch mass storage device.

Table 5-1.

7-Pin SATA Connector Pinout

Pin Description Pin Description

1Ground 6RX positive

2 TX positive 7 Ground

3TX negative AHolding clip

4 Ground B Holding clip

5RX negative ----

Pin 1

Pin 7
