HP Compaq dc7800 Series User Manual

5-18 www.hp.com Technical Reference Guide
Input/Output Interfaces
5.10.4 NIC Connector

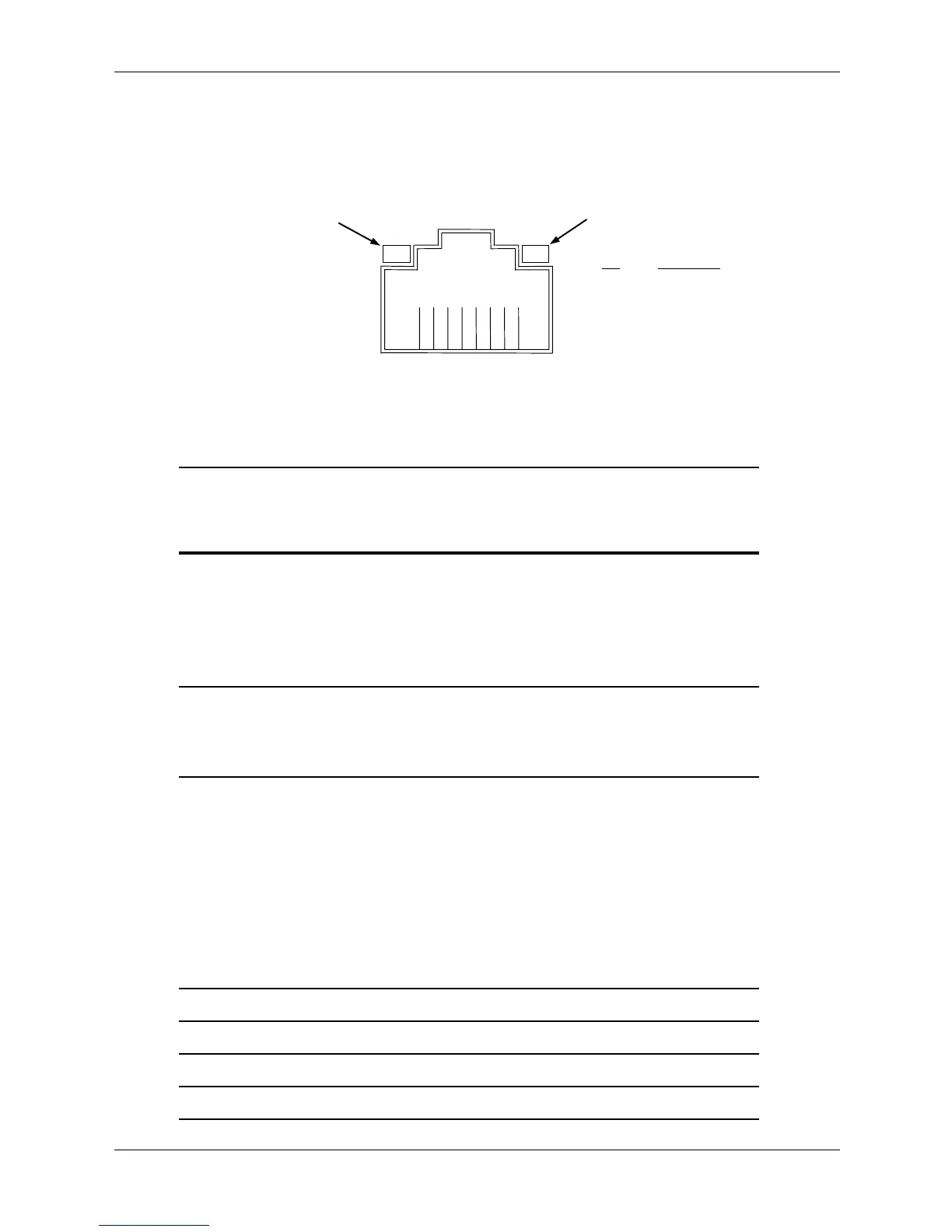

Figure 5-12 shows the RJ-45 connector used for the NIC interface. This connector includes the
two status LEDs as part of the connector assembly.
Figure 5-12. RJ-45 Ethernet TPE Connector (as viewed from rear of chassis)
5.10.5 NIC Specifications
124 38 7 6 5
Pin
Description
1 Transmit+
2 Transmit-
3 Receive+
6 Receive-
Activity LED
Speed LED
4, 7, 8
Not used
Table 5-12.
NIC Specifications
Parameter Compatibility standard orprotocol
Modes Supported 10BASE-T half duplex @ 10 Mb/s
10Base-T full duplex @ 20 Mb/s
100BASE-TX half duplex @ 100 Mb/s
100Base-TX full duplex @ 200 Mb/s
1000BASE-T half duplex @ 1 Gb/s
1000BASE-TX full duplex @ 2 Gb/s
Standards Compliance IEEE 802.1P, 802.1Q
IEEE 802.2
IEEE 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x,
802.3z
OS Driver Support MS-DOS
MS Windows 3.1
MS Windows 95 (pre-OSR2), 98, and 2000
Professional, XP Home, XP Pro, Vista Home, Vista Pro
MS Windows NT 3.51 & 4.0
Novell Netware 3.x, 4.x, 5x
Novell Netware/IntraNetWare
SCO UnixWare 7
Linux 2.2, 2.4
PXE 2.0
Boot ROM Support Intel PRO/100 Boot Agent (PXE 3.0, RPL)
F12 BIOS Support Yes
Bus Inteface PCI Express x1
Power Management Support ACPI, PCI Power Management Spec.

HP Compaq dc7800 Series Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Chipset	Intel Q35 Express
Memory	Up to 8 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Form Factor	Ultra-slim desktop, Small form factor, Convertible minitower
Storage	80GB to 500GB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Network	Integrated Gigabit Network Connection
Ports	USB 2.0, VGA, serial, parallel, audio in/out
Operating System	Windows Vista, Windows XP, FreeDOS
Expansion Slots	1 low-profile PCI, 1 low-profile PCI Express x16
Power Supply	240W
