5-10 www.hp.com Technical Reference Guide
Input/Output Interfaces
5.7.2 Pointing Device Interface Operation
The pointing device (typically a mouse) connects to a 6-pin DIN-type connector that is identical
to the keyboard connector both physically and electrically. The operation of the interface (clock
and data signal control) is the same as for the keyboard. The pointing device interface uses the
IRQ12 interrupt.
5.7.3 Keyboard/Pointing Device Interface Connector
The legacy-light model provides separate PS/2 connectors for the keyboard and pointing device.
Both connectors are identical both physically and electrically. Figure 5-7 and Table 5-6 show the
connector and pinout of the keyboard/pointing device interface connectors.

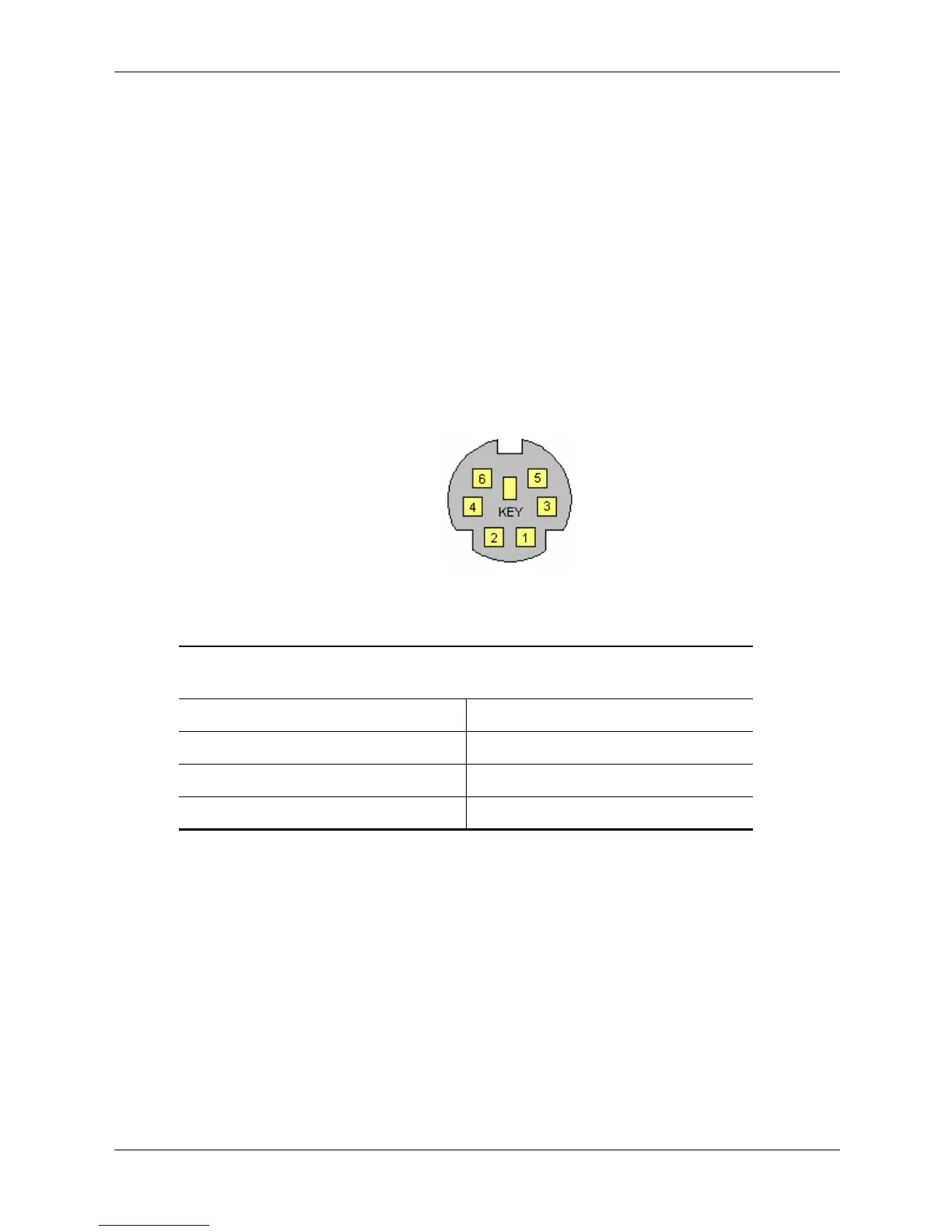

Figure 5-7. PS/2 Keyboard or Pointing Device Interface Connector (as viewed from rear of chassis)
Table 5-6.
Keyboard/Pointing Device Connector Pinout
Pin Signal Description Pin Signal Description
1DATA Data 4+ 5 VDCPower
2 NC Not Connected 5 CLK Clock
3 GND Ground 6 NC Not Connected

HP Compaq dc7800 Series Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Chipset	Intel Q35 Express
Memory	Up to 8 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Form Factor	Ultra-slim desktop, Small form factor, Convertible minitower
Storage	80GB to 500GB SATA HDD
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Network	Integrated Gigabit Network Connection
Ports	USB 2.0, VGA, serial, parallel, audio in/out
Operating System	Windows Vista, Windows XP, FreeDOS
Expansion Slots	1 low-profile PCI, 1 low-profile PCI Express x16
Power Supply	240W
