Connecting the cables

1. Place the monitor in a convenient, well-ventilated location near the computer.

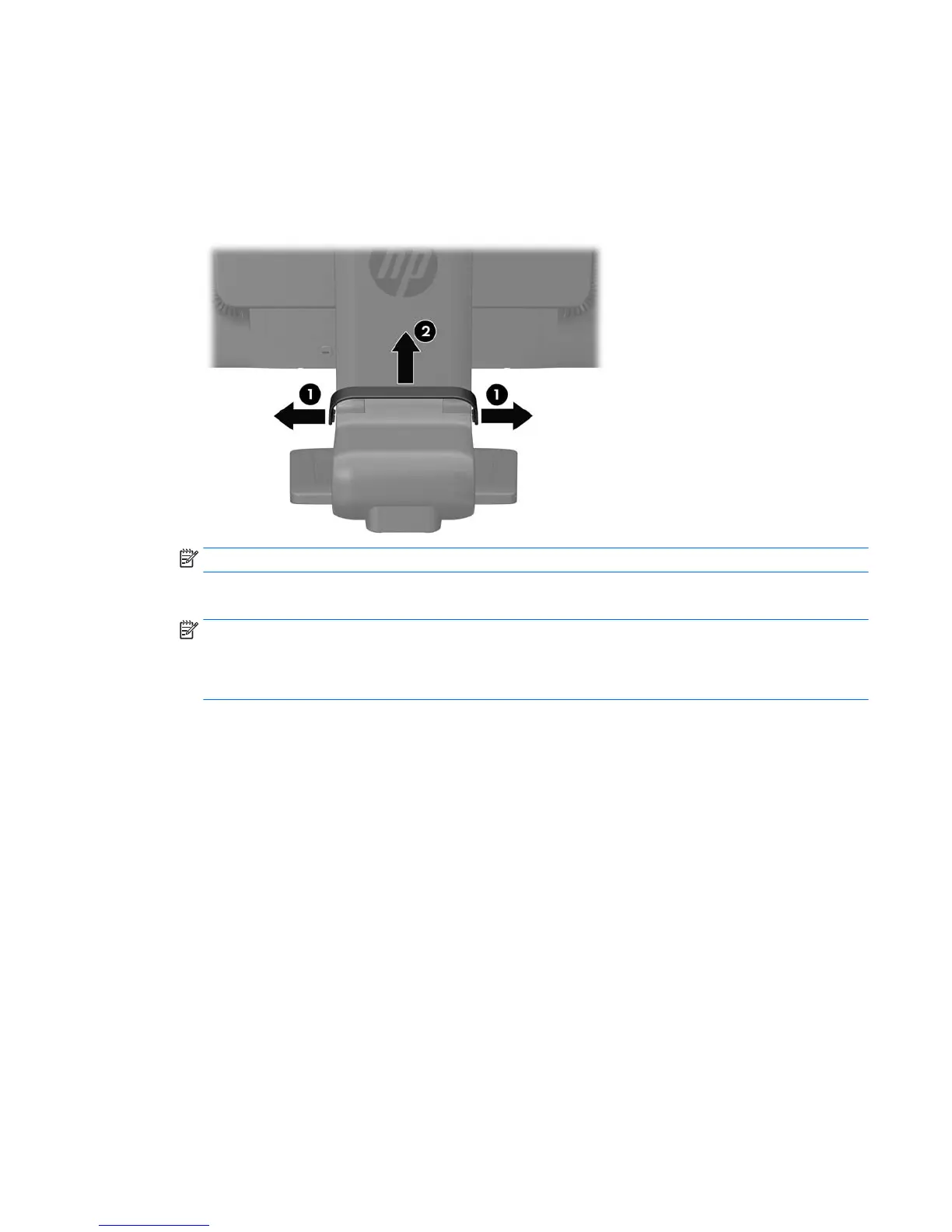

2. Remove the cable management clip from the pedestal by pulling outward on the two sides of the

clip (1) and lifting the clip off the pedestal (2).

Figure 3-3 Removing the cable management clip

NOTE: The L2206tm panel head model does not ship with a stand.

3. Connect a VGA signal cable, DVI-D signal cable, or DisplayPort signal cable.

NOTE: The monitor is capable of supporting either analog or digital input. The video mode is

determined by the video cable used. The monitor will automatically determine which inputs have

valid video signals. The inputs can be selected by pressing the +/source button on the front

panel or through the on-screen display (OSD) feature by pressing the Menu button.

●

For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to

the VGA connector on the rear of the monitor and to the VGA connector on the computer.

●

For DVI digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal

cable to the DVI connector on the rear of the monitor and to the DVI connector on the

computer.

●

For DisplayPort digital operation, use the DisplayPort signal cable provided. Connect the

DisplayPort signal cable to the DisplayPort connector on the rear of the monitor and to the

DisplayPort connector on the computer.

4. Connect one end of the provided audio cable to the audio connector on the computer, and

connect the other end to the audio-in connector on the monitor.

5. Connect one end of the provided USB cable to the USB upstream connector on the rear of the

monitor, and connect the other end to a USB connector on the computer.

Connecting the cables 7

Questions and Answers:

Need help?

Do you have a question about the HP Compaq L2206tm and is the answer not in the manual?

HP Compaq L2206tm Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewing angle, horizontal	170 °
Display brightness (typical)	220 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
USB hub version	2.0
HDMI ports quantity	0
USB Type-A downstream ports quantity	2
LED indicators	Power
Tilt angle range	-5 - 30 °
Panel mounting interface	- mm
AC input voltage	100 - 240 V
Power consumption (max)	39 W
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Product color	Black
Country of origin	China
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, Audio (3.5mm), DisplayPort, DVI, USB, VGA
