Removing the monitor pedestal base
NOTE: The L2206tm panel head model does not ship with a stand.
You can remove the monitor panel from the pedestal base to install the panel on a wall, swing arm, or
other mounting fixture.
CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and the
power and signal cables are both disconnected. Also disconnect all USB cables connected to the
monitor.
1. Disconnect and remove the signal, power, and USB cables from the monitor.
2. Lay the monitor face down on a flat surface covered by a clean, dry cloth.
3. Pivot the base 45 degrees clockwise and remove the screw from the back of the monitor, and
then pivot the base 45 degrees counter-clockwise and remove the other screw from the back of
the monitor.

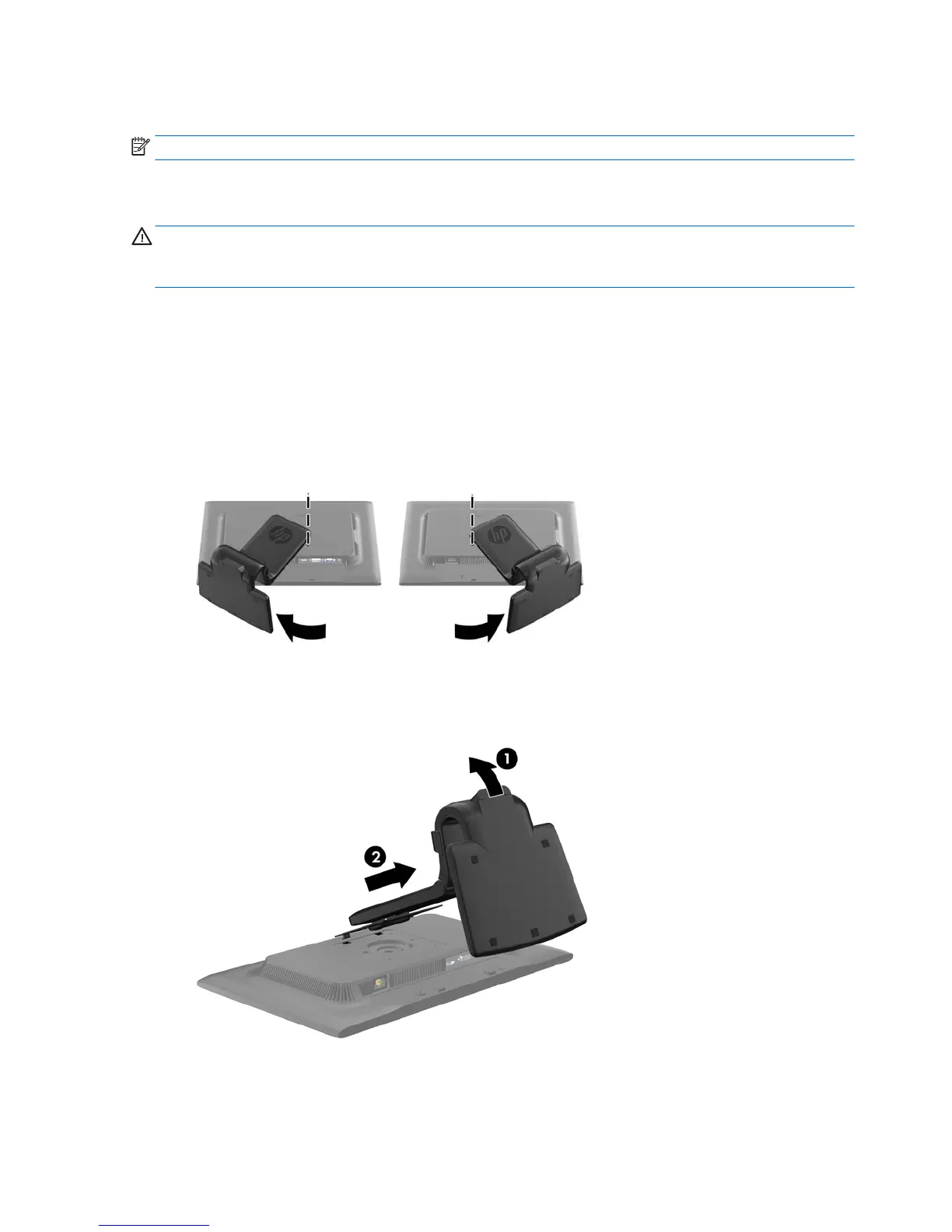

Figure 3-11 Removing the pedestal base screws
4. Rotate the base of the monitor up (1) and pull it back (2) to unhinge the tabs on the monitor
stand from the slots in the monitor.
Figure 3-12 Removing the pedestal base
14 Chapter 3 Setting up the monitor
