Removal and Replacement Procedures
Maintenance and Service Guide 5–15
✎
Make note of which wireless antenna cable is attached to
which antenna clip on the Mini PCI communications board
before disconnecting the cables.
5. Disconnect the wireless antenna cables 1 from the
Mini PCI communications board.
6. Spread the two retaining tabs 2 that secure the Mini PCI
communications board to the communications compartment
socket. (The board rises up).
7. Remove the wireless communications board by pulling the
board away from the socket at a 45-degree angle 3.

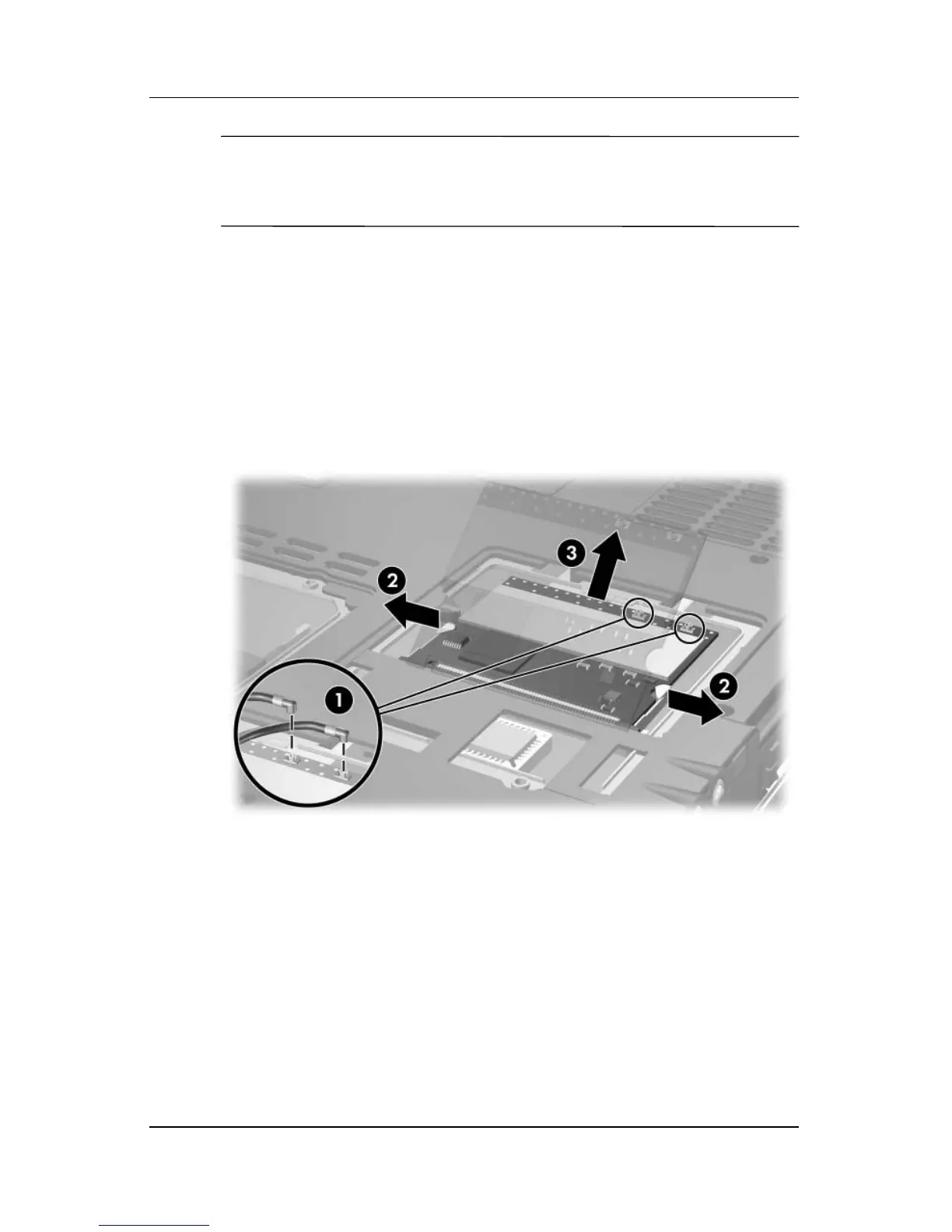

Removing a Mini PCI Communications Board
Reverse the above procedure to install a Mini PCI
communications board.
