Removal and Replacement Procedures
Maintenance and Service Guide 5–7
6. Remove the hard drive by following these steps:
a. Turn the notebook upside down, with the rear panel
facing you.
b. Remove the T8M2.5×5.0 screw 1 that secures the hard
drive door to the notebook.
c. Remove the PM3.0×4.0 hard drive security screw 2 that
secures the hard drive to the notebook.

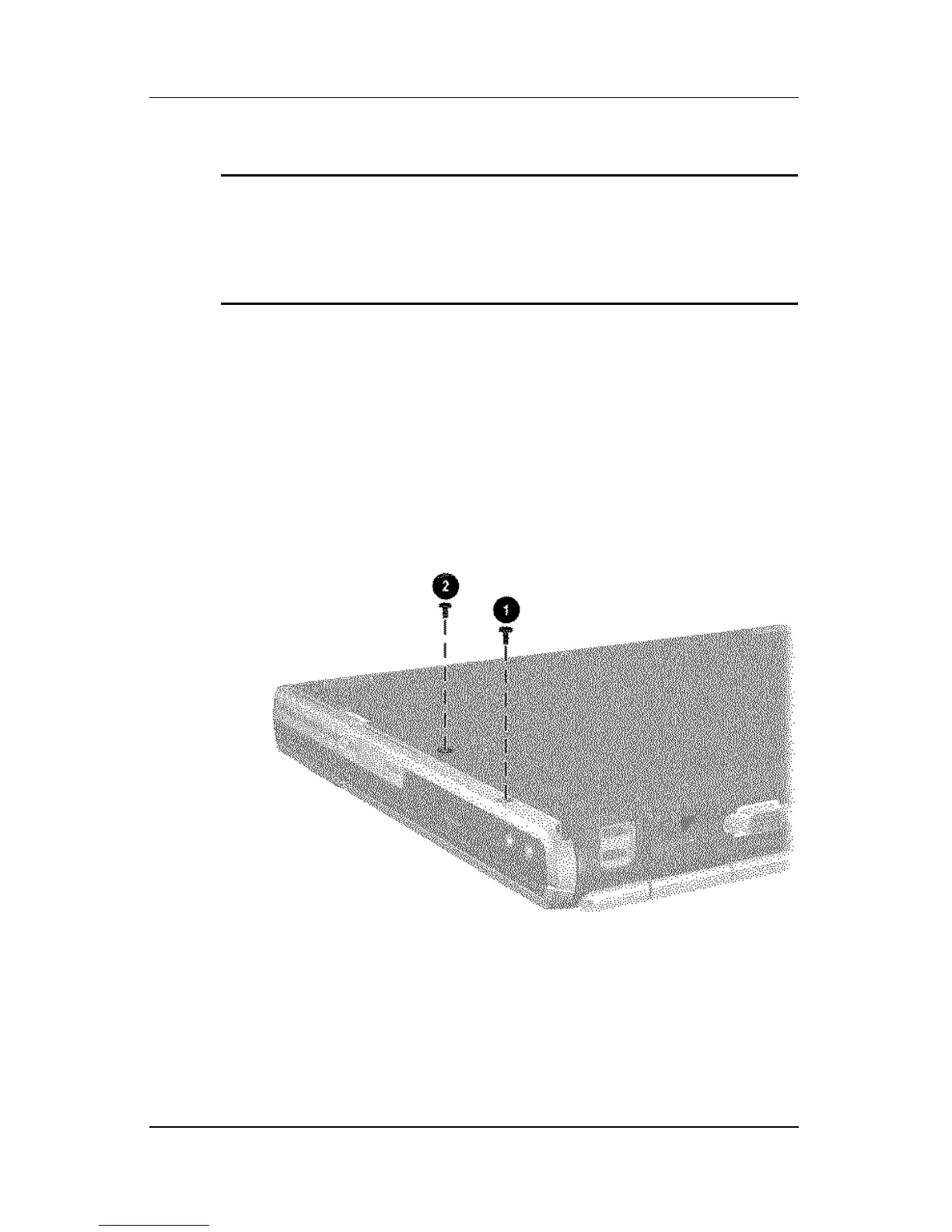

Removing the Hard Drive Screws
Spare Part Number Information
Hard drives (include hard drive frame and connector)
80-GB (5400-rpm)
60-GB (5400-rpm)
40-GB (5400-rpm)
30-GB (4200-rpm)
344407-001
344406-001
344405-001
344404-001
