5–8 Maintenance and Service Guide
Removal and Replacement Procedures

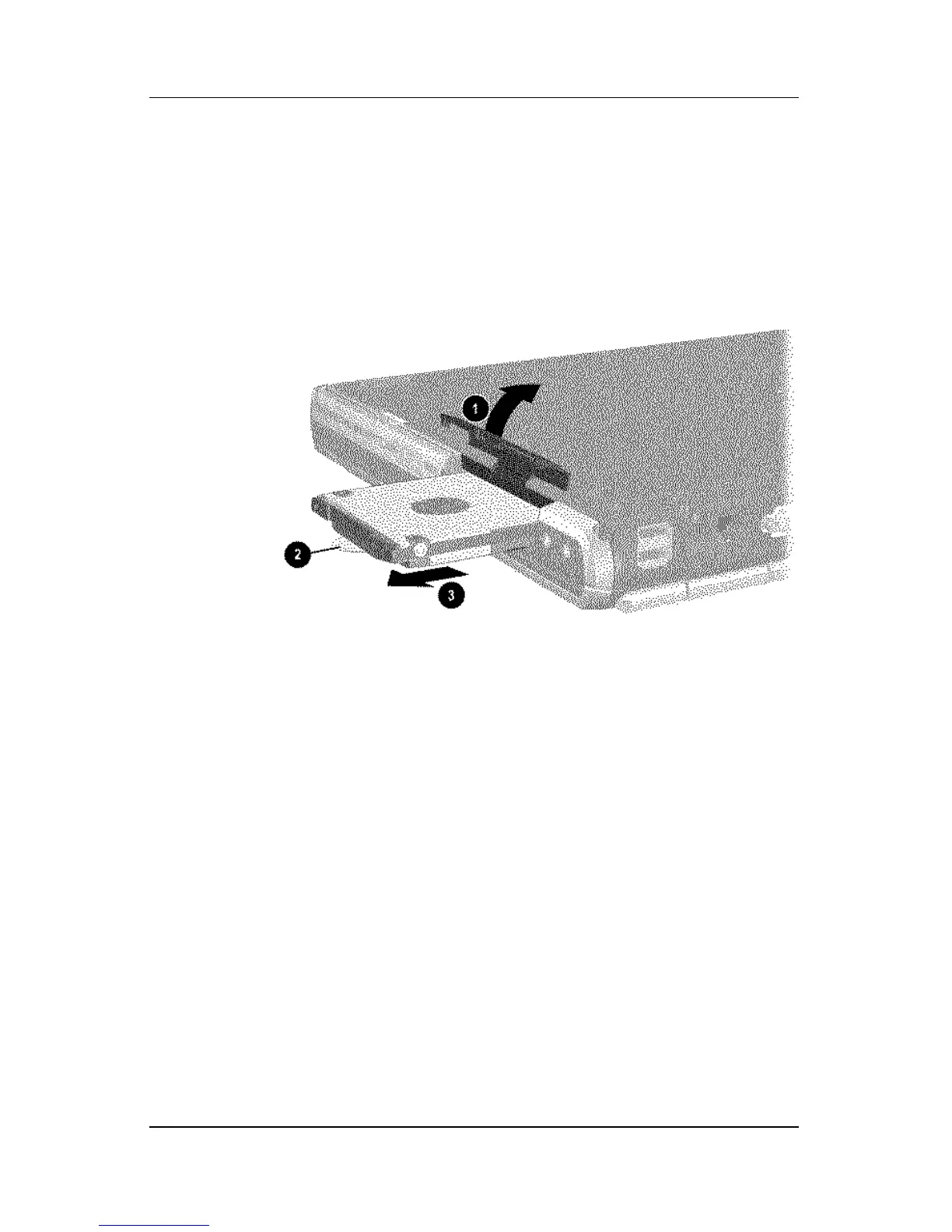

d. Lift the hard drive cover up and swing it back 1.
e. Use the Mylar tab 2 to slide the hard drive to the left 3
to disconnect it from the system board.
f. Remove the hard drive.
Removing the Hard Drive
To Next Page
