Compaq Professional Workstation SP750 Hardware Reference Guide 2-3
Compaq Confidential - Need to Know Required
Writer: Beth Zanca Part Number: 190709-001 File Name: ch2.doc
Last Saved On: 04/12/00 1:02 PM Last Saved By: Lydia Sanchez
Removing the Workstation Access Panel
To remove the workstation access panel:
1. Turn off the workstation and any external devices.
2. Disconnect the power cord from the grounded AC outlet and the
back of the workstation.
3. Refer to the following illustration to remove the workstation
access panel.

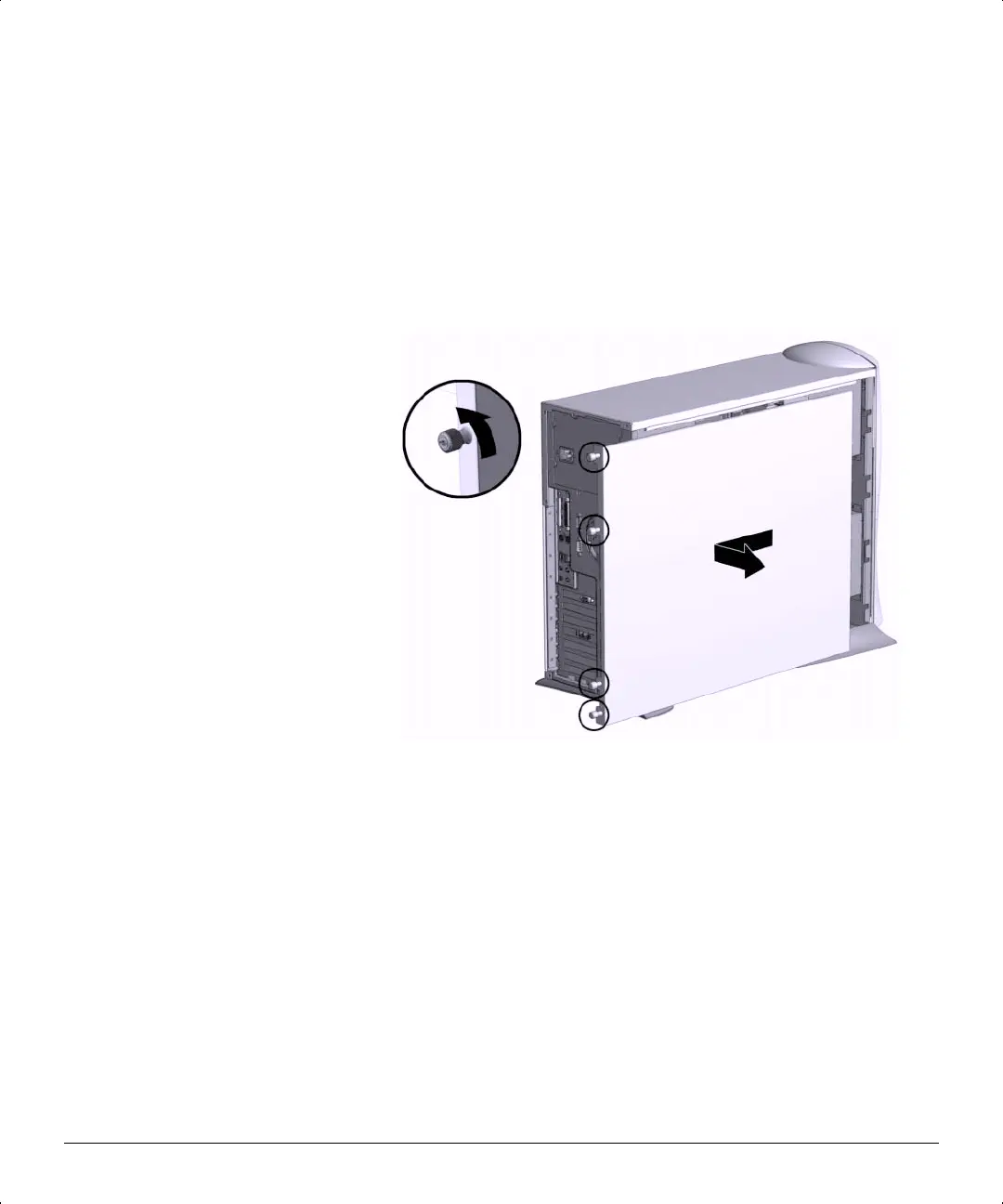

Loosening the four thumbscrews and the workstation access panel
✎
When replacing the workstation access panel, be sure to
tighten all four thumbscrews.
