5–14 Maintenance and Service Guide
Removal and Replacement Procedures

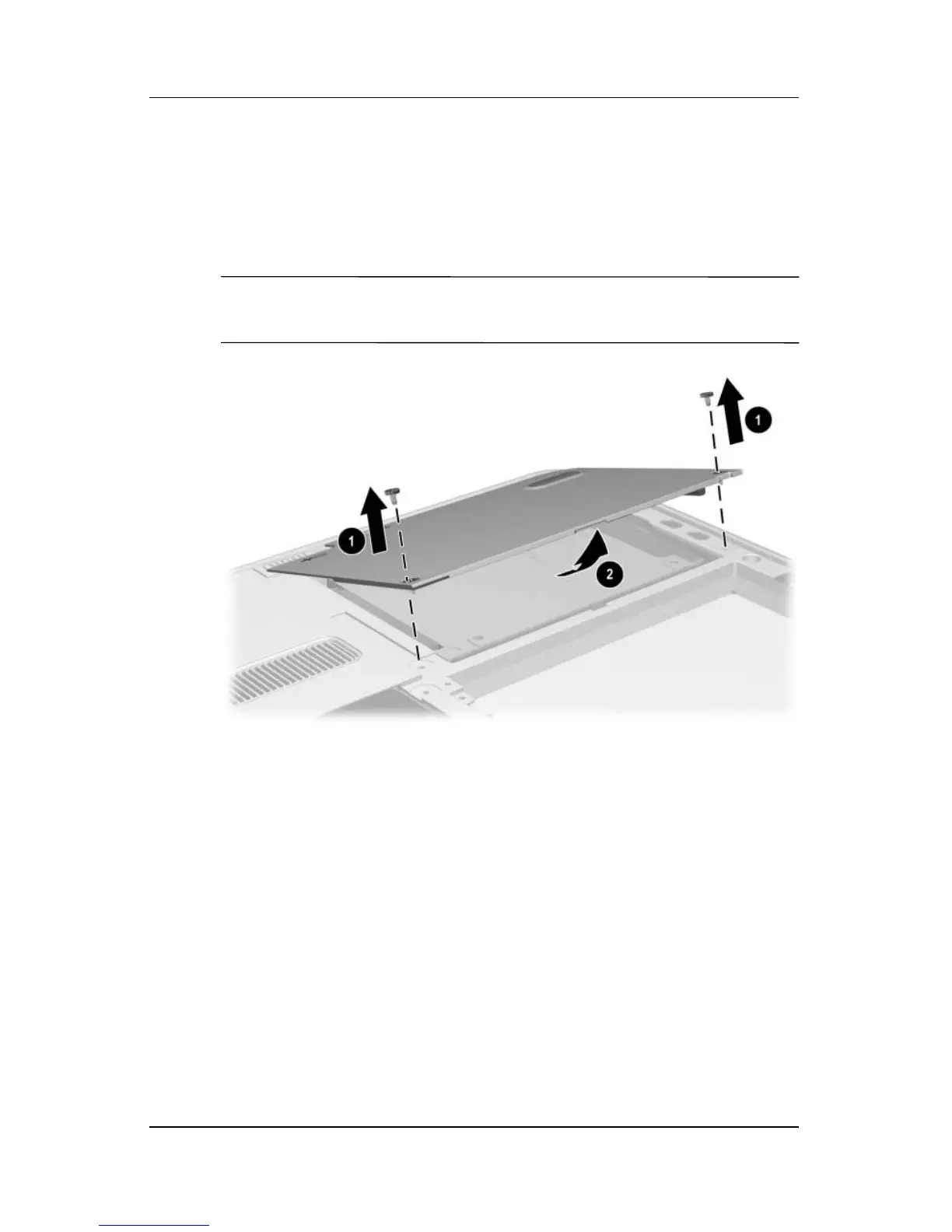

4. Remove the 2 PM2.0 × 4.0 screws 1 that secure the
hard drive cover to the tablet PC.
5. Lift the front edge of the cover and swing the cover back
2.
6. Remove the hard drive cover.
✎
The hard drive cover is included in the Miscellaneous
Plastics/Hardware Kit, spare part number 348350-001.
Removing the Hard Drive Cover
