1.6 Keyboard Components

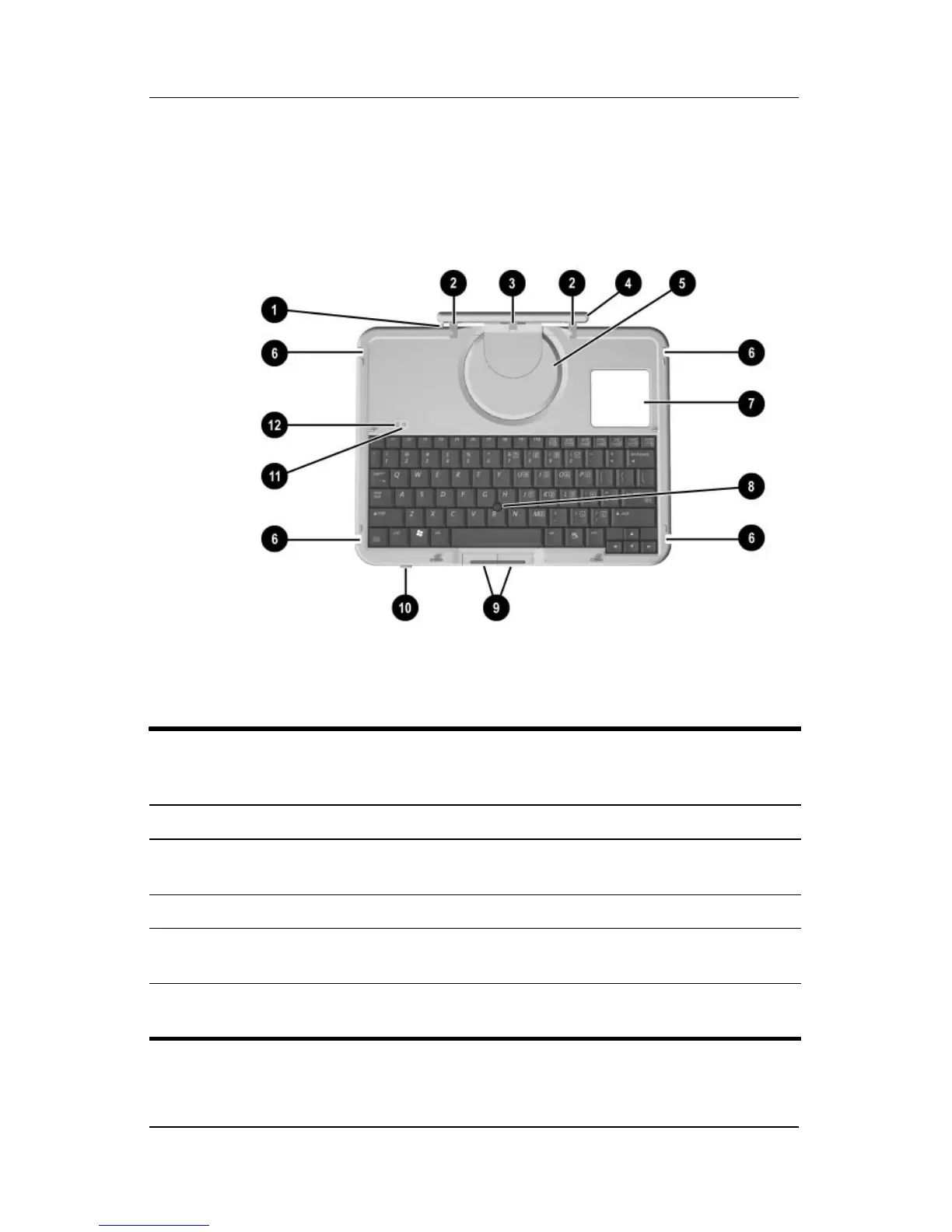

The keyboard top components are shown in the following
illustration and described in Table 1-53.
Keyboard Top Components
Table 1-53
Keyboard Top Components
Item Component Function
1 Alignment key Ensures that the tablet PC is attached to the
keyboard in the correct orientation.
2 Keyboard hooks (2) Secure the tablet PC to the keyboard.
3 Keyboard connector Connects the keyboard to the keyboard
connector on the tablet PC.
4 Tilt adjustment Tilts the tablet PC forward or backward while
it is connected to the keyboard.
