5–8 Maintenance and Service Guide
Removal and Replacement Procedures
8. Remove the battery pack by following these steps:
a. Turn the tablet PC upside down, with the power/standby
switch and jog dial toward you.
b. Remove the optional PM2.0 × 4.0 retention screw
1 that
secures the battery pack to the tablet PC.
c. Slide the battery release latch
2 toward the back of the
tablet PC and hold it to release the battery pack.
d. Place your finger in the notch, lift the left side of
the battery pack, and swing it to the right
3.
e. Remove the battery pack.

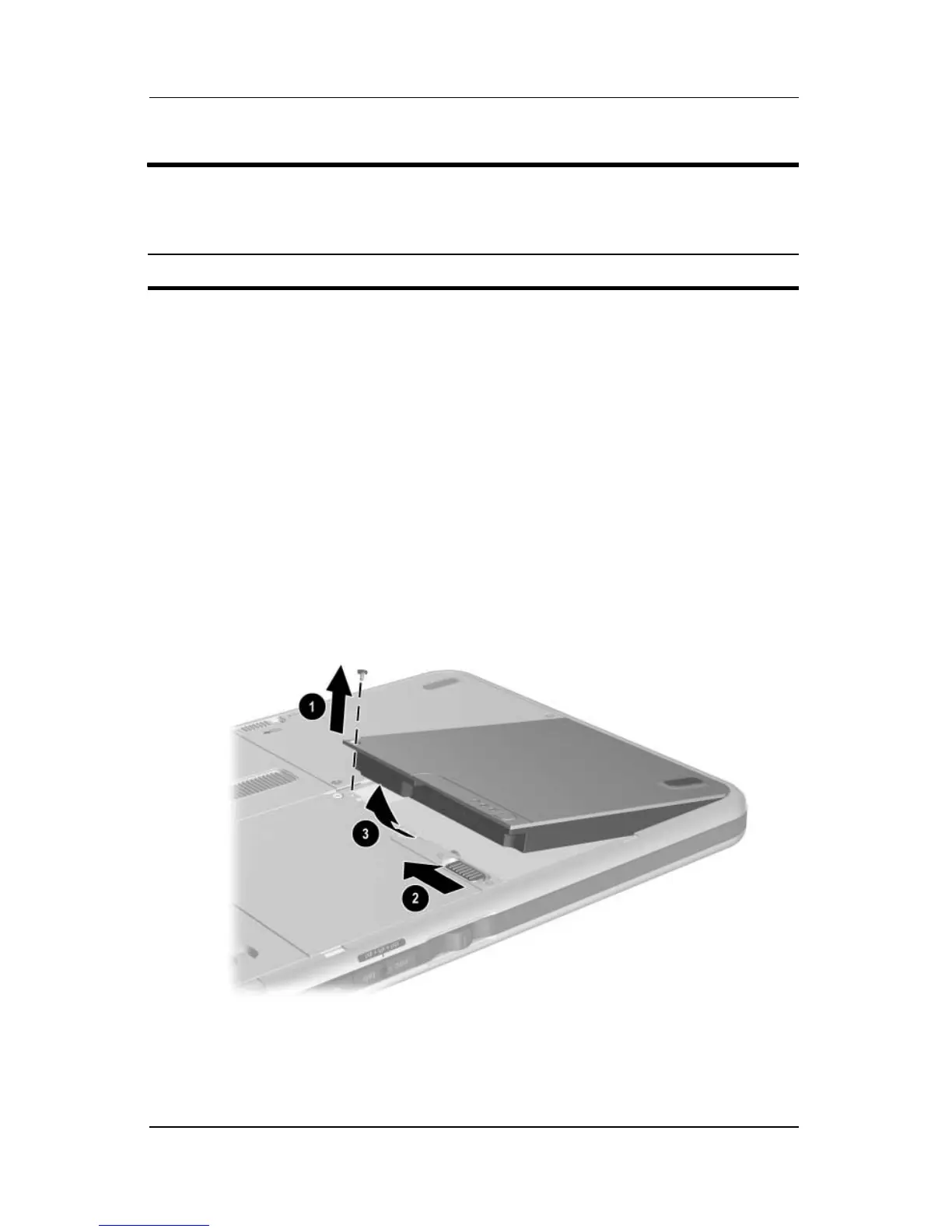

Removing the Battery Pack
Reverse the preceding procedures to install the battery pack.
Battery Pack
Spare Part Number Information
Battery pack, Li-Ion 348333-001
To Next Page
