R
emo
v
al and Replace
ment Pr
ocedures
Maintenance and S
ervi
ce Guide
5–7

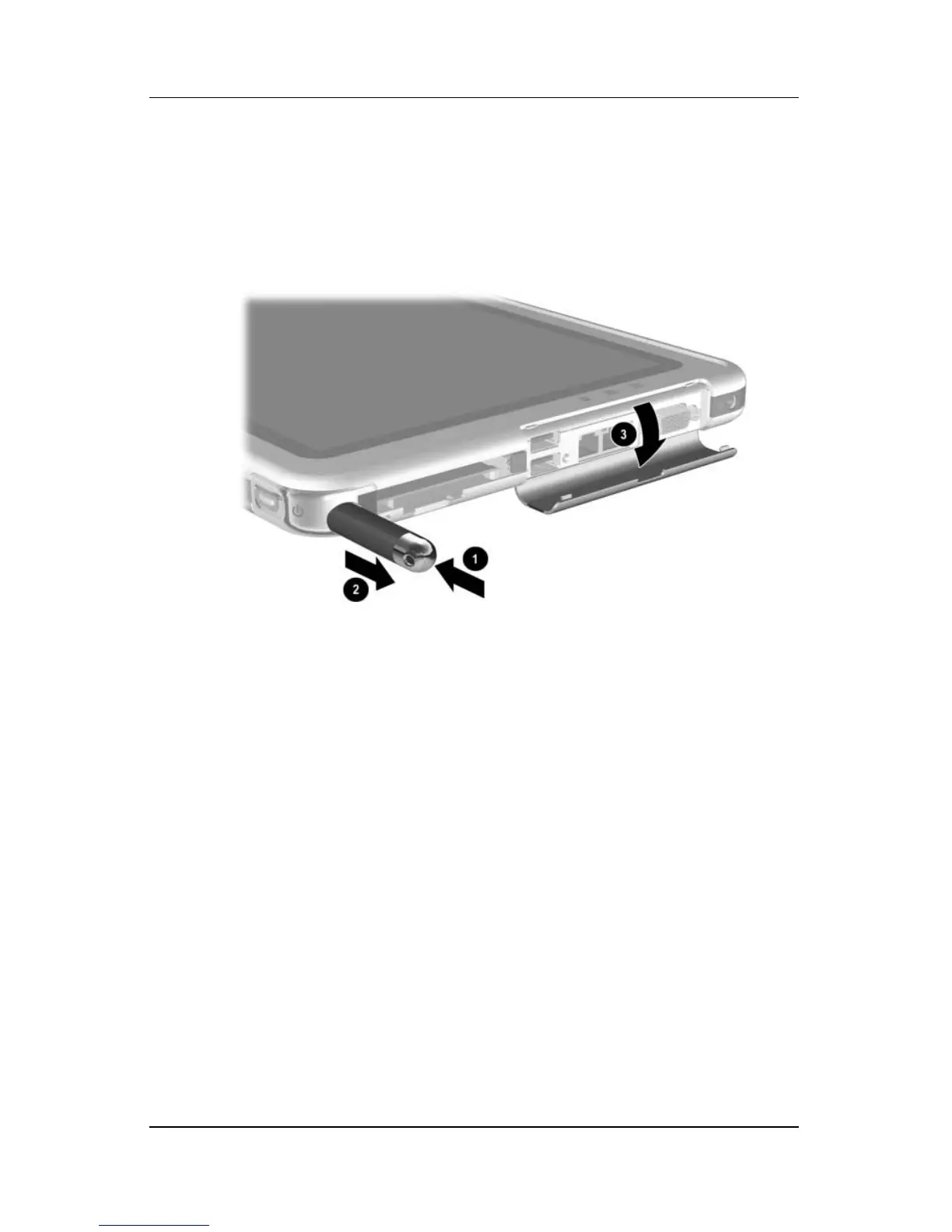

6.
Press the end of the pen
1
to release it from the holder
. Then
remov
e the pen from the holder
2
.
7.
Open the connector cov
er b
y pulling out and do
wn on the
notch
3
.
R
emo
v
ing the P
en and Opening the Connec
tor C
o
v
er
141
143
Table of Contents
Default Chapter
1
Maintenance and Service
1
Table of Contents
3
Specifications
6
Models
9
Features
54
Clearing a Password
56
Power Management
57
Tablet PC External Components
58
Top Components
60
Rear Components
66
Keyboard Components
71
HP Tablet PC Docking Station Components
76
Design Overview
80
2 Troubleshooting
81
Setup and Diagnostics Utilities
82
Selecting Setup or HP Diagnostics
82
Selecting from the File Menu
83
Selecting from the Security Menu
84
Selecting from the Advanced Menu
86
Using HP Diagnostics for Windows
88
Obtaining, Saving, or Printing Configuration Information
88
Obtaining, Saving or Printing Diagnostic Test
89
Information
89
Troubleshooting Flowcharts
91
Flowchart 2.1-Initial Troubleshooting
91
Flowchart 2.2-No Power, Part 1
91
Flowchart 2.3-No Power, Part 2
91
Flowchart 2.4-No Power, Part 3
91
Flowchart 2.5-No Power, Part 4
91
Flowchart 2.6-No Video, Part 1
91
Flowchart 2.7-No Video, Part 2
91
Flowchart 2.8-Nonfunctioning Docking Station
91
(If Applicable)
93
Flowchart 2.9-No Operating System (OS)
100
Loading
100
Flowchart 2.10-No os Loading from
101
Hard Drive, Part 1
101
Flowchart 2.11-No os Loading from
102
Hard Drive, Part 2
102
Flowchart 2.12-No os Loading from
103
Hard Drive, Part 3
103
Flowchart 2.13-No os Loading from
104
Diskette Drive
104
Flowchart 2.14-No os Loading from CD-ROM or DVD-ROM Drive
105
Flowchart 2.15-No Audio, Part 1
106
Flowchart 2.16-No Audio, Part 2
107
Flowchart 2.17-Nonfunctioning Device
108
Flowchart 2.18-Nonfunctioning Keyboard
109
Flowchart 2.19-Nonfunctioning
110
Pointing Device
110
Flowchart 2.20-No Network or
111
Modem Connection
111
3 Illustrated Parts Catalog
112
Serial Number Location
112
HP Compaq Tablet PC System
113
Major Components
113
Miscellaneous Cable Kit Components
117
Miscellaneous Plastics/Hardware
118
Kit Components
118
Keyboard
119
Optional HP Tablet PC Docking Station
121
HP Tablet PC Docking Station Components
122
Miscellaneous
124
Sequential Part Number Listing
125
4 Removal and Replacement Preliminaries
129
Tools Required
129
Service Considerations
129
Plastic Parts
130
Cables and Connectors
130
Preventing Damage to Removable Drives
130
Preventing Electrostatic Damage
131
Packaging and Transporting Equipment
132
Workstation Precautions
132
Grounding Equipment and Methods
133
5 Removal and Replacement Procedures
136
Serial Number
137
Disassembly Sequence Chart
138
Preparing the Tablet PC for Disassembly
139
Before You Begin
139
Battery Pack
143
Memory Module
146
Real Time Clock Battery
147
Hard Drive
148
Display Panel Assembly
151
System Board
160
Modem Board
165
Fan and Heat Sink
170
Optional HP Tablet PC Docking Station
172
Diskette Drive
183
Universal Serial Bus
195
External Monitor
196
Power Cord Set Requirements
198
