5–20 Maintenance and Service Guide
Removal and Replacement Procedures
14. Release the ZIF connector 1 to which the audio cable is
attached, and then disconnect the cable 2.
15. Release the ZIF connector 3 to which the inverter cable
is attached, and then disconnect the cable 4.
16. Separate the display panel assembly and the base enclosure.

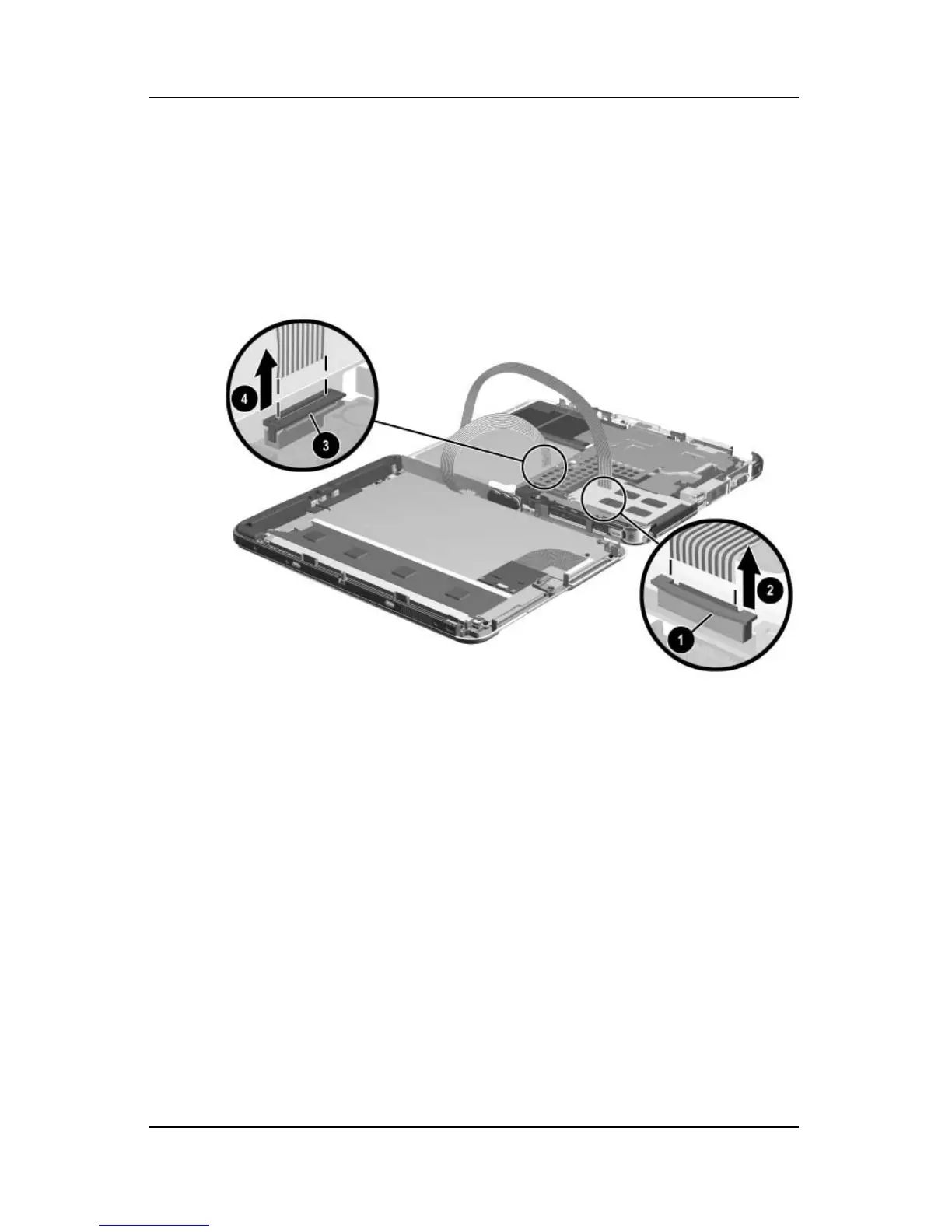

Disconnecting the Audio and Inverter Cables
Reverse the preceding procedures to reassemble and install the
display panel assembly.
