5–22 Maintenance and Service Guide
Removal and Replacement Procedures
18. Remove the digitizer as follows:
a. Release the ZIF connector 1 to which the digitizer cable
is attached and disconnect the cable from the system
board 2.
b. Swing the 2 flex cables 3 to the right.

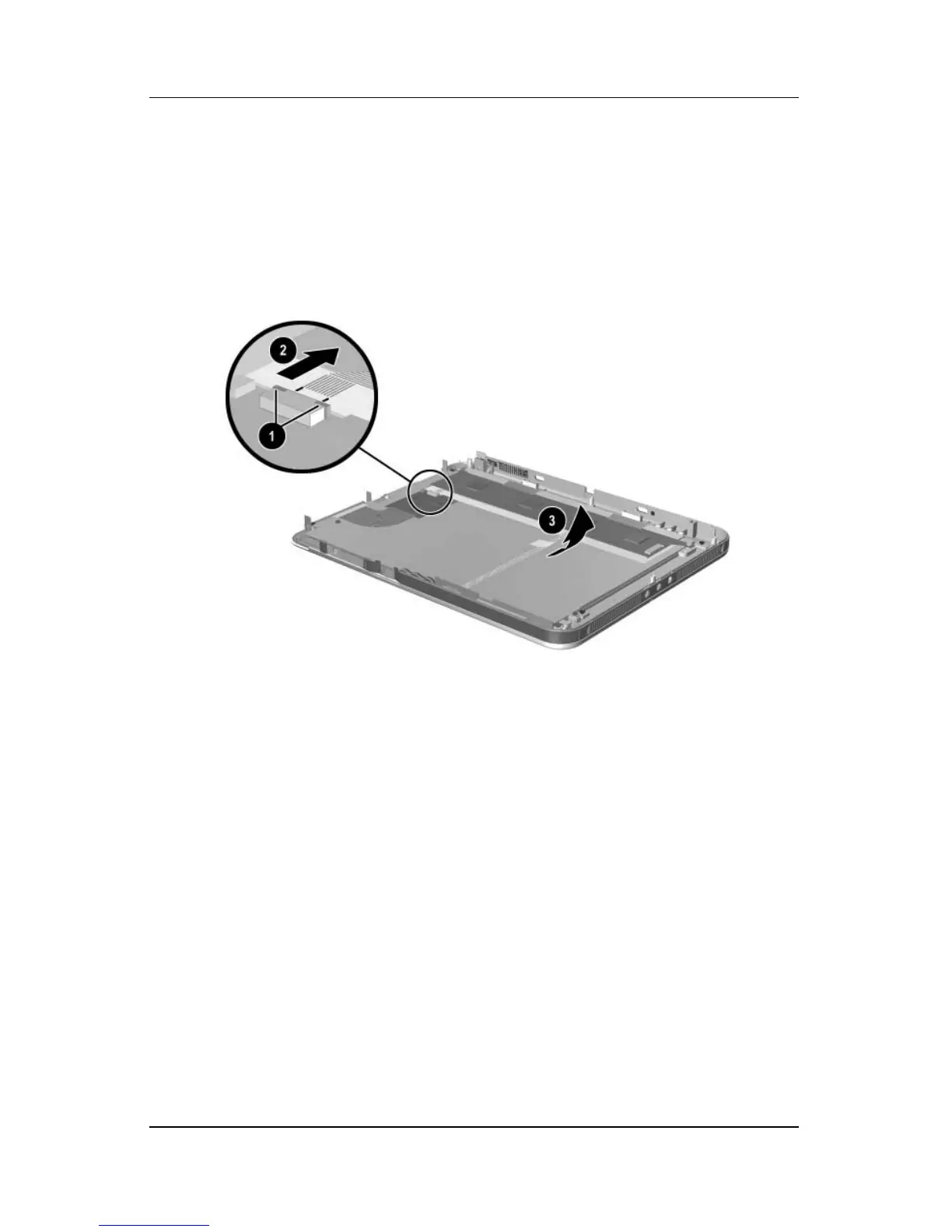

Disconnecting the Digitizer Cable.
