5–26 Maintenance and Service Guide
Removal and Replacement Procedures
5. Remove the Bluetooth module as follows:
a. Position the tablet PC base enclosure so that the heat sink
grille is toward you.
b. Disconnect the Bluetooth module connector from the
system board 1.
c. Slide the Bluetooth module 2 away from you and lift it
away from the base enclosure.

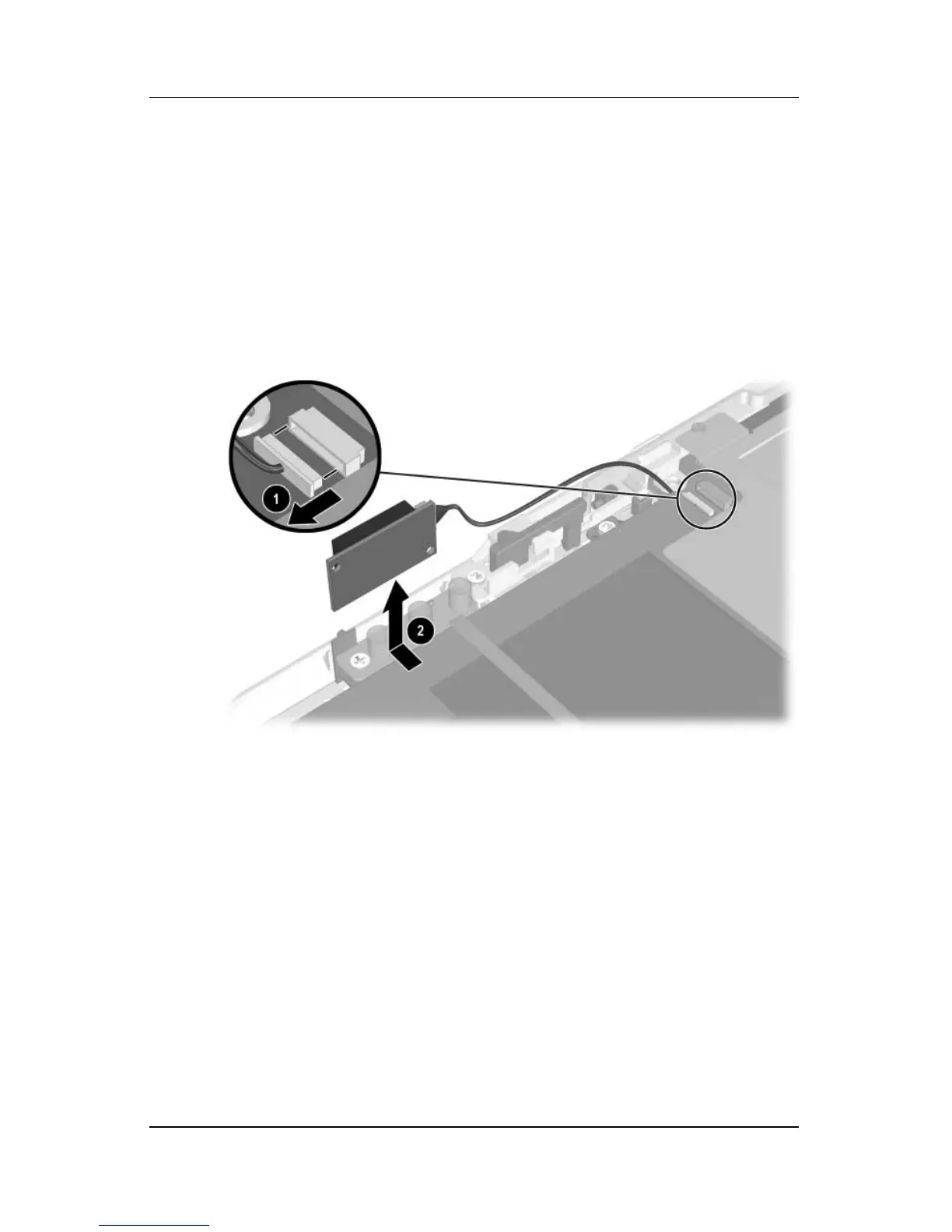

Removing the Bluetooth Module
