5–38 Maintenance and Service Guide
Removal and Replacement Procedures
3. Position the docking station right side up with the rear toward
you, and then swing the docking stand to the back.
4. Lift the left edge of the top case
1 until the rear edge of the
case
2 disengages from the bottom case.
5. Remove the docking station top case
3.

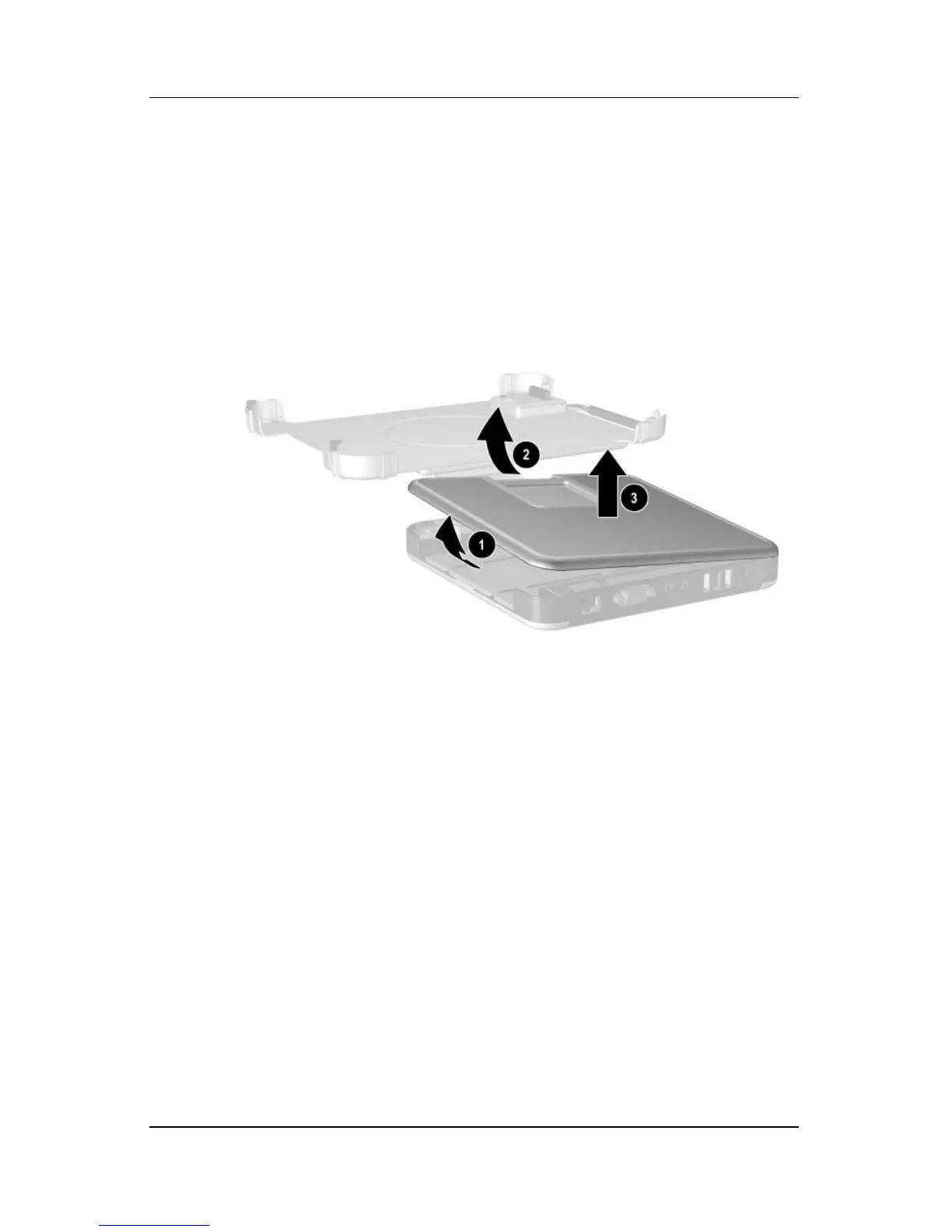

Removing the Top Case
