HP D Series

1-9
D Class System Memory Upgrade
Memory Installation Procedure
E. Remove the EMI
Cover

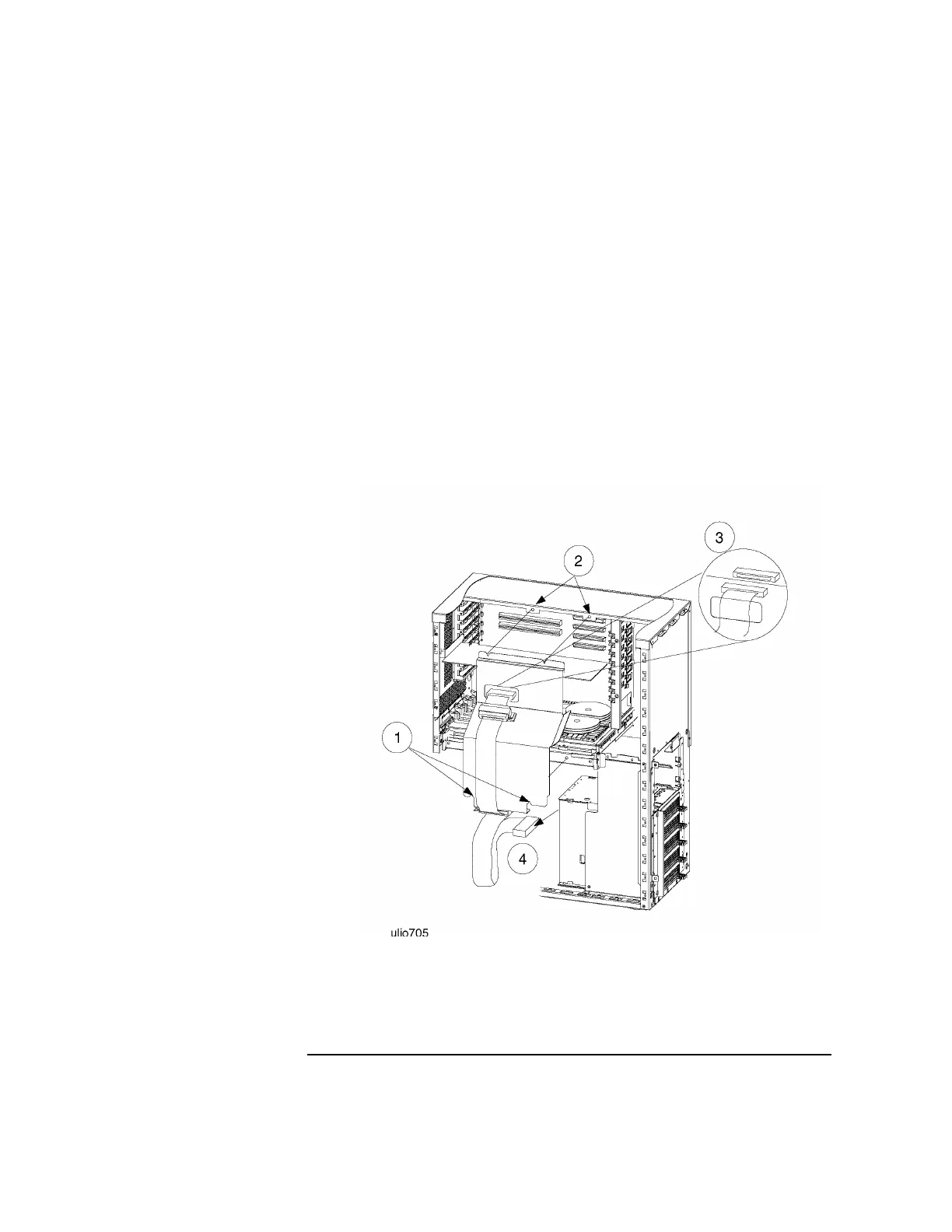

D Class servers that have the Hot-Swap Module installed will have an EMI cover
installed over the Processor/Memory card. To remove the EMI cover:
1. Loosen the two notches at the bottom of the EMI cover from the tabs on the
Processor/Memory card by pushing up and slightly flexing the EMI cover until
the notches come loose.
2. Pull the EMI cover down slightly until the two notches at the top of the cover
come loose from the tabs at the top of the server cabinet.
3. Loosen and remove the SCSI ribbon cable from the Fast/Wide SCSI card.
4. Remove the other end of the SCSI ribbon cable from the connector on the hot-
swap backplane, and set the EMI cover and ribbon cable aside.
