HP D Series

1-10
D Class System Memory Upgrade
Memory Installation Procedure
F. Remove the
Processor/
Memory Card

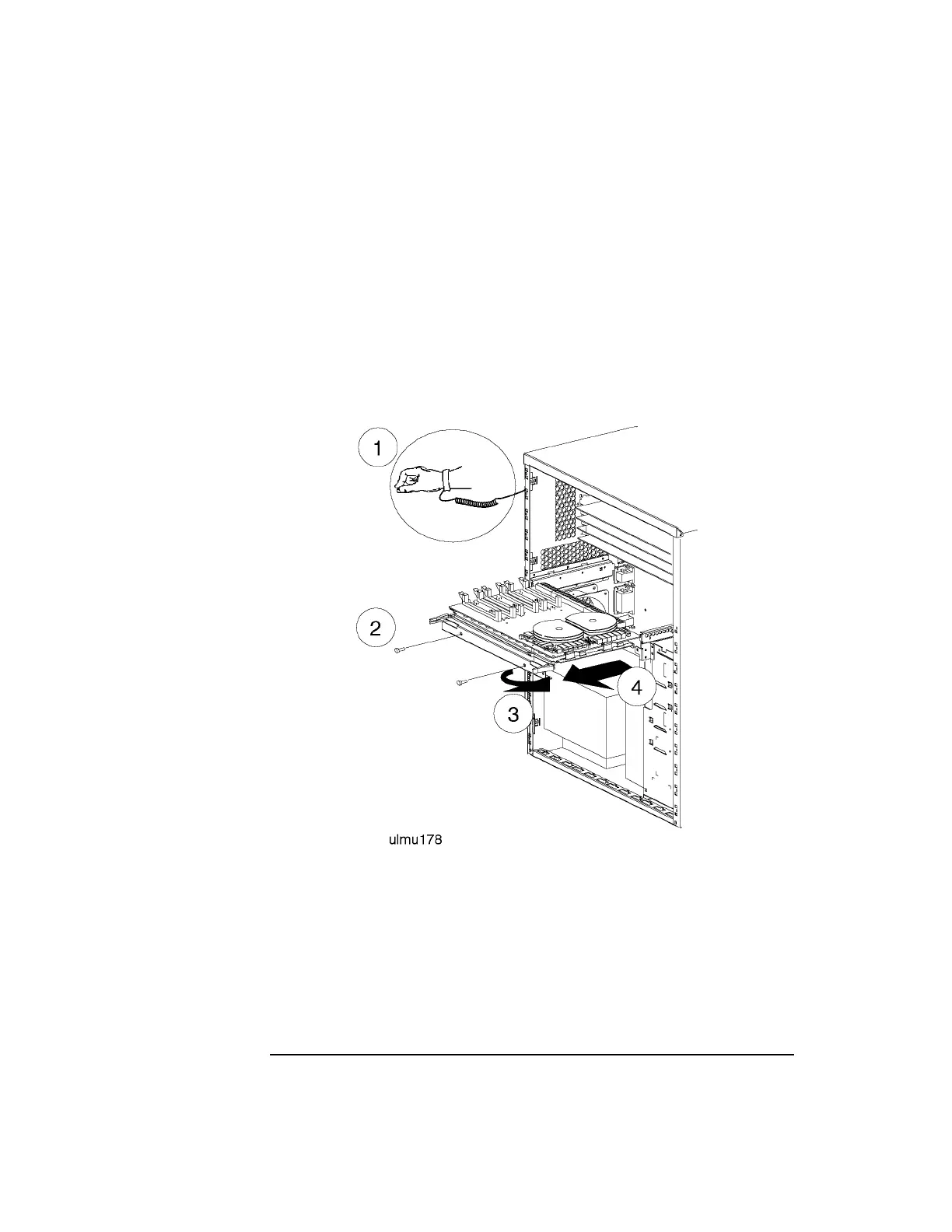

1. Attach an anti-static strap to your wrist, and ground it to the main chassis.
2. Loosen and remove the two (2) screws that secure the Processor/Memory card to
the chassis.
3. Pull out the two plastic levers on the Processor/Memory card.
4. Pull the Processor/Memory card out of the system cabinet, and set it down on an
anti-static mat.
