D Class System Memory Upgrade
Memory Installation Procedure
I. Replace the
Processor/
Memory Card

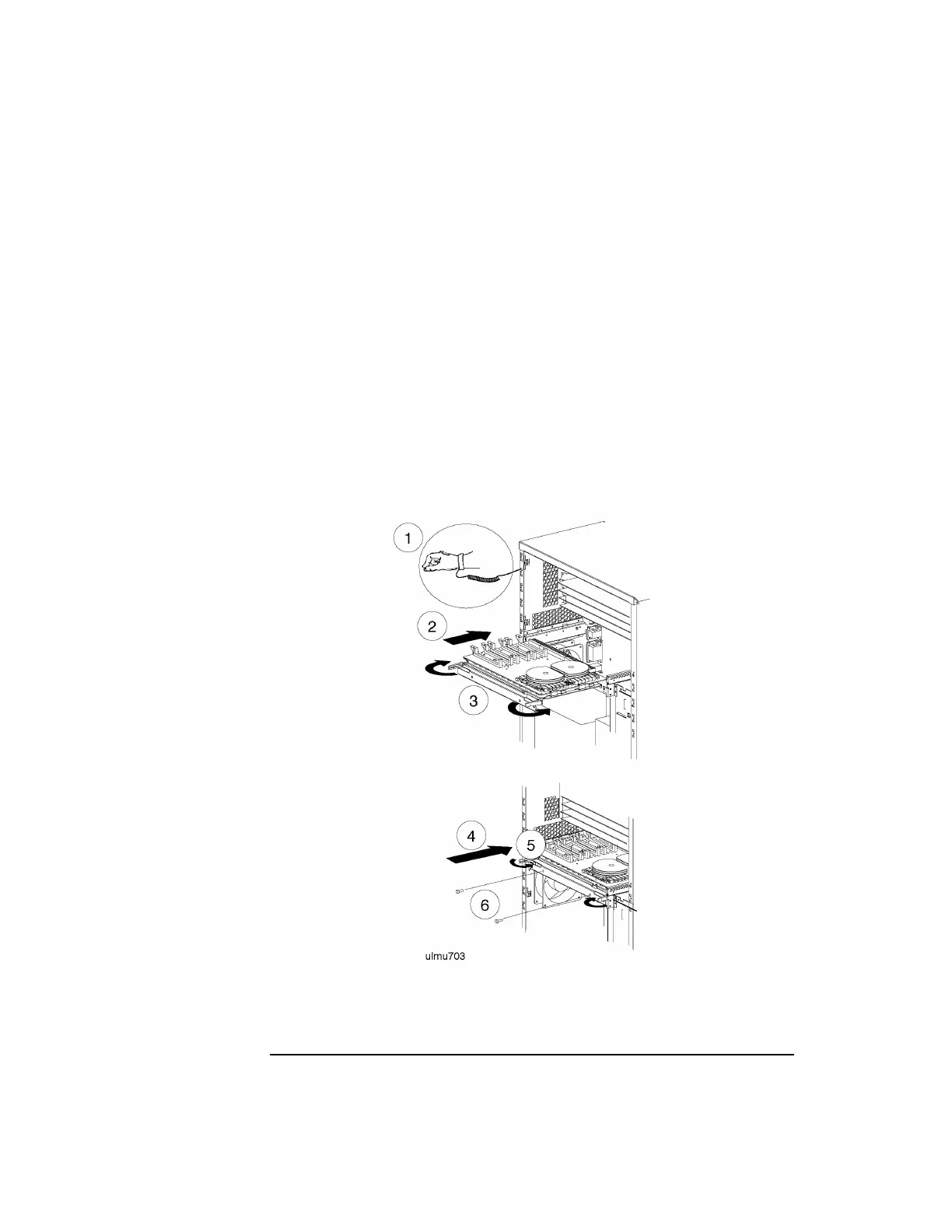

1. Verify that an anti-static strap is still strapped to your wrist, and grounded to the
cabinet main chassis.
2. Place the Processor/Memory card into the system cabinet so that the card rests
on the metal rails with the large connector facing into the cabinet.
3. Pull the extractor levers on the Processor/Memory card out away from the card.
4. Slide the Processor/Memory card into the system cabinet until the large
connector is properly seated in the corresponding system board connector.
5. Push in the two extractor levers on the Processor/Memory card.
6. Insert and tighten two screws to secure the Processor/Memory card in the
cabinet.
