HP dc7900 series User Manual

9. Lift the hard drive carrier straight up and out of the chassis.

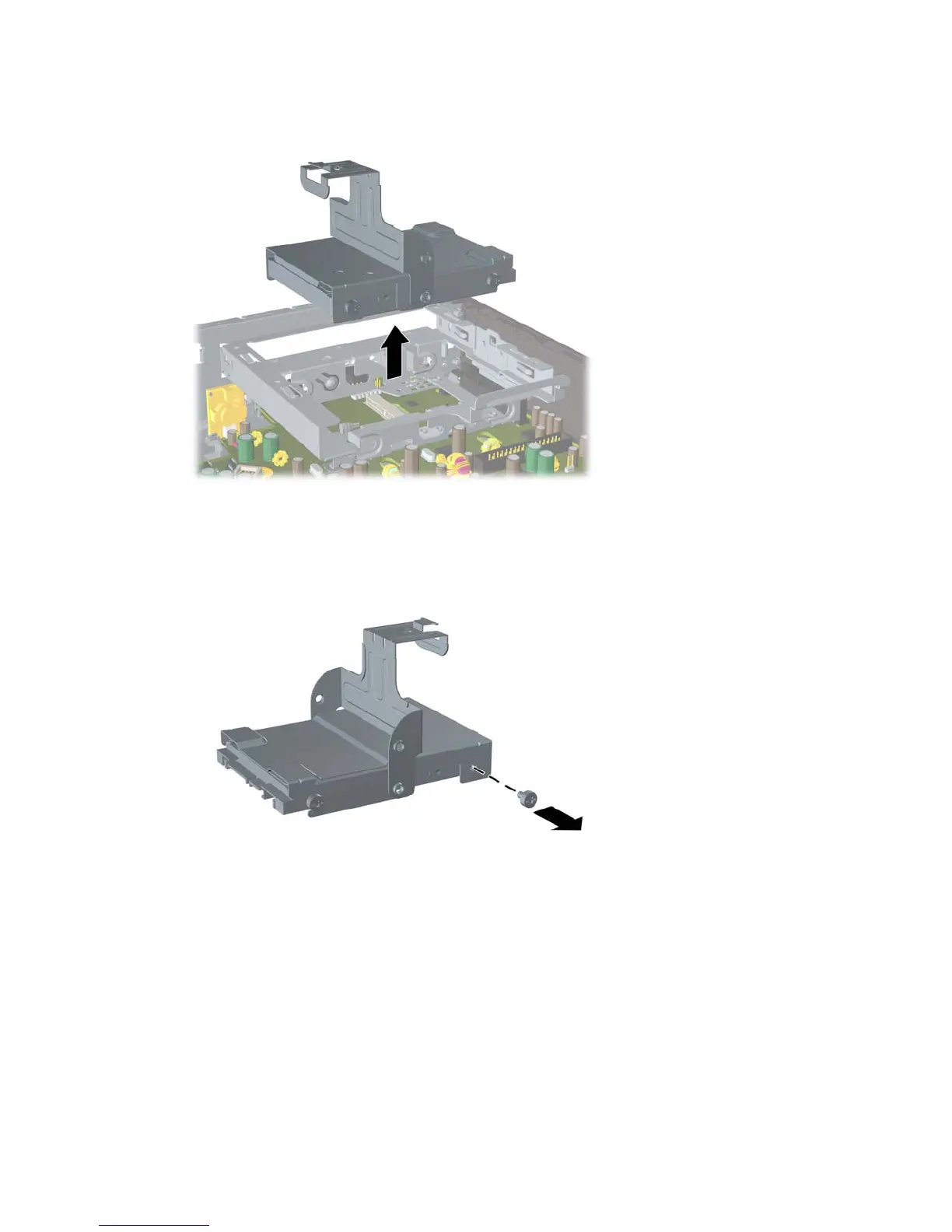

Figure 2-17 Removing the Hard Drive Carrier
10. To remove the hard drive from the carrier, remove the guide screw from the front left side of the
carrier.
Figure 2-18 Removing the Hard Drive Guide Screw
24 Chapter 2 Hardware Upgrades ENWW

HP dc7900 series Specifications

General

Chipset	Intel Q45 Express
Memory	Up to 16 GB DDR2 SDRAM
Network	Integrated Intel 82567LM Gigabit Network Connection
Audio	Integrated High Definition Audio
Processor Options	Intel Core 2 Duo
Storage Options	Solid State Drive
Graphics	Integrated Intel Graphics Media Accelerator 4500
Optical Drive	DVD-ROM
Ports	USB 2.0, VGA, DisplayPort, serial, parallel, PS/2, audio in/out
Form Factor	Small Form Factor (SFF)
Operating System	Windows XP
Power Supply	240W
Expansion Slots	PCI Express x16
