HP dc7900 series User Manual

11. Slide the carrier back and remove the hard drive.

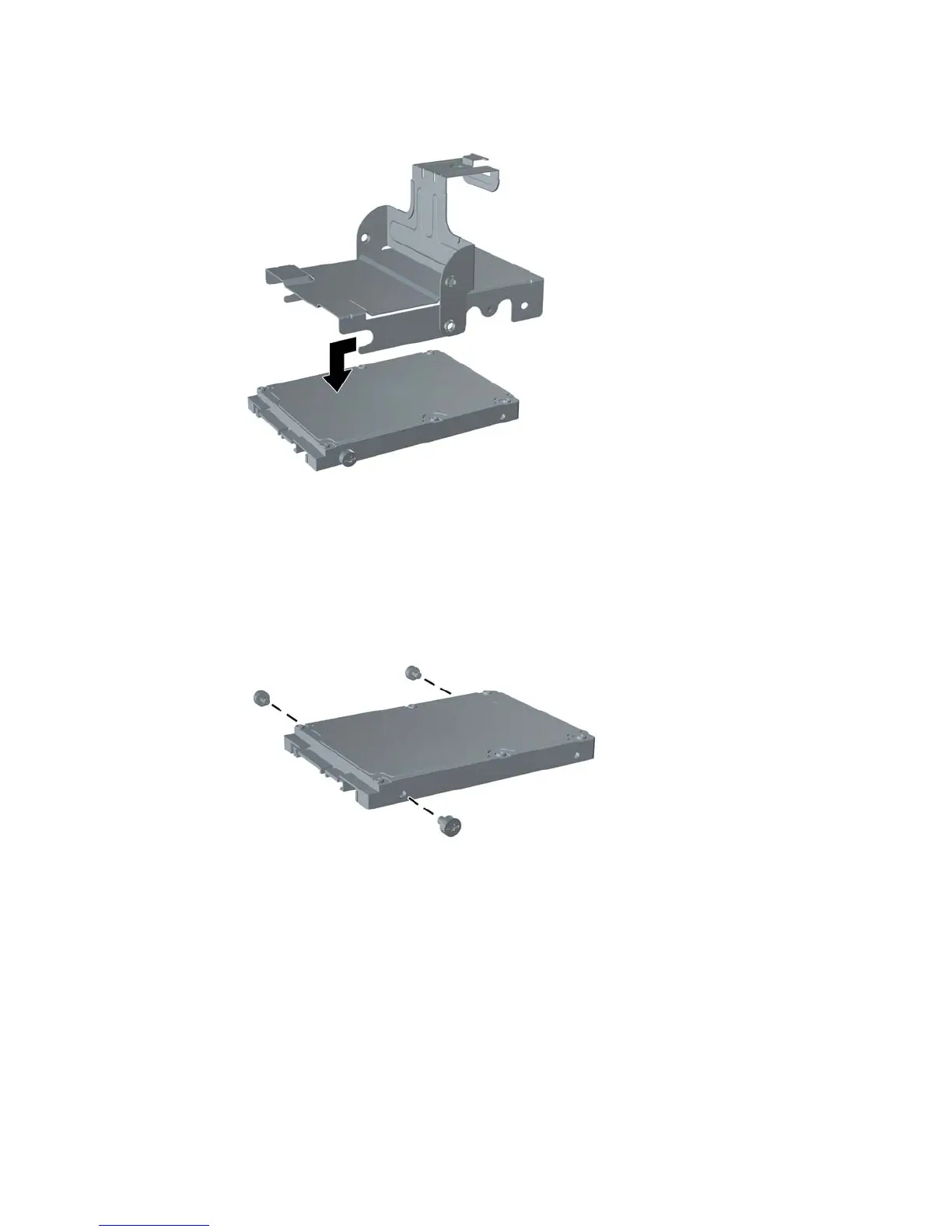

Figure 2-19 Removing the Hard Drive
12. Transfer the three remaining guide screws (two on the right and one on the rear left) from the old
drive to the new drive.
Figure 2-20 Transferring the Guide Screws
ENWW Replacing the Hard Drive 25

HP dc7900 series Specifications

General

Chipset	Intel Q45 Express
Memory	Up to 16 GB DDR2 SDRAM
Network	Integrated Intel 82567LM Gigabit Network Connection
Audio	Integrated High Definition Audio
Processor Options	Intel Core 2 Duo
Storage Options	Solid State Drive
Graphics	Integrated Intel Graphics Media Accelerator 4500
Optical Drive	DVD-ROM
Ports	USB 2.0, VGA, DisplayPort, serial, parallel, PS/2, audio in/out
Form Factor	Small Form Factor (SFF)
Operating System	Windows XP
Power Supply	240W
Expansion Slots	PCI Express x16
