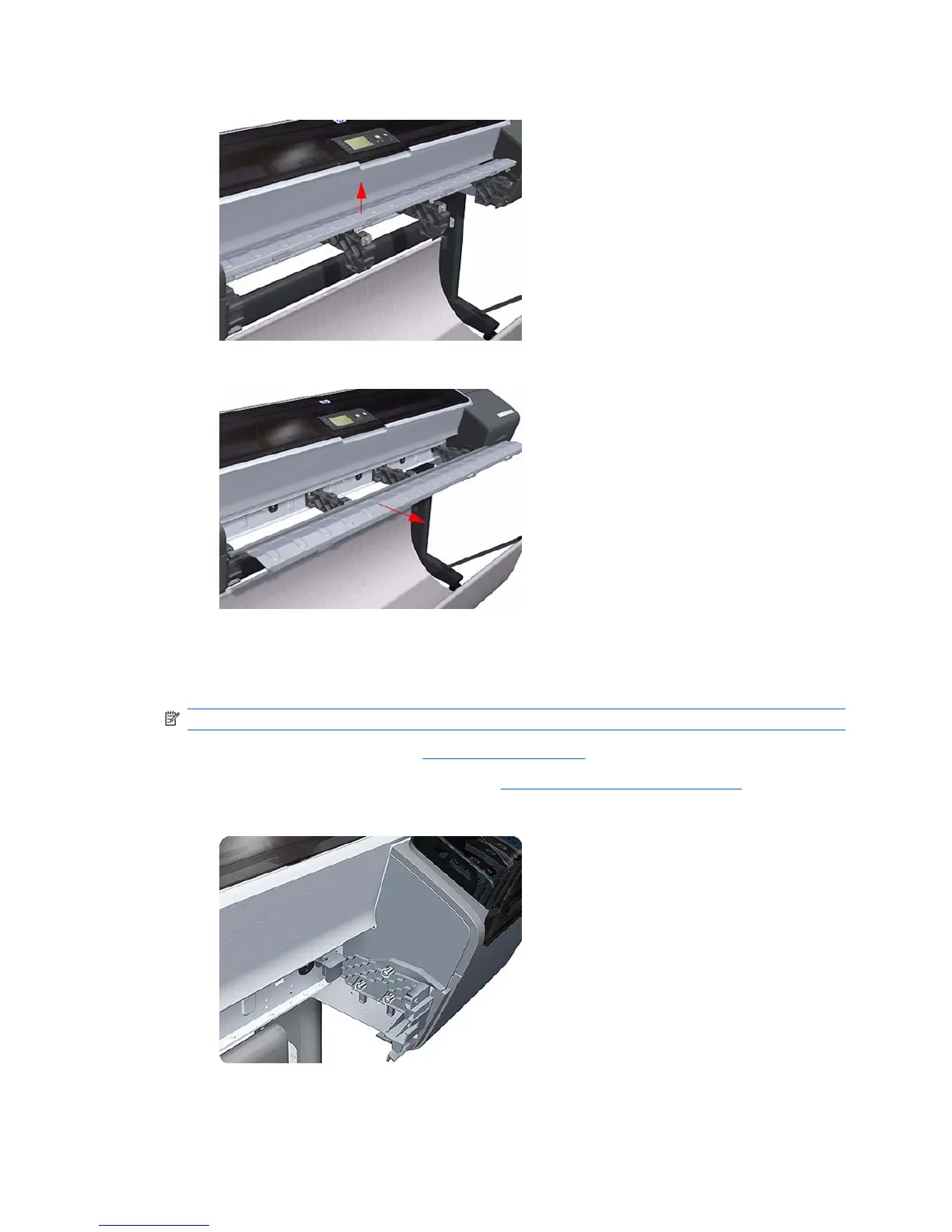

4. Lift the front of the Media Output Assembly.
5. Slide the Media Output Assembly forwards out of the printer.
Right Front Trim
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Front Cover (refer Front Cover on page 177).
2. Remove the Media Output Assembly (refer
Media Output Assembly on page 178).
3. Remove two T-15 screws that secure the Right Front Trim to the printer.
ENWW Right Front Trim 179
