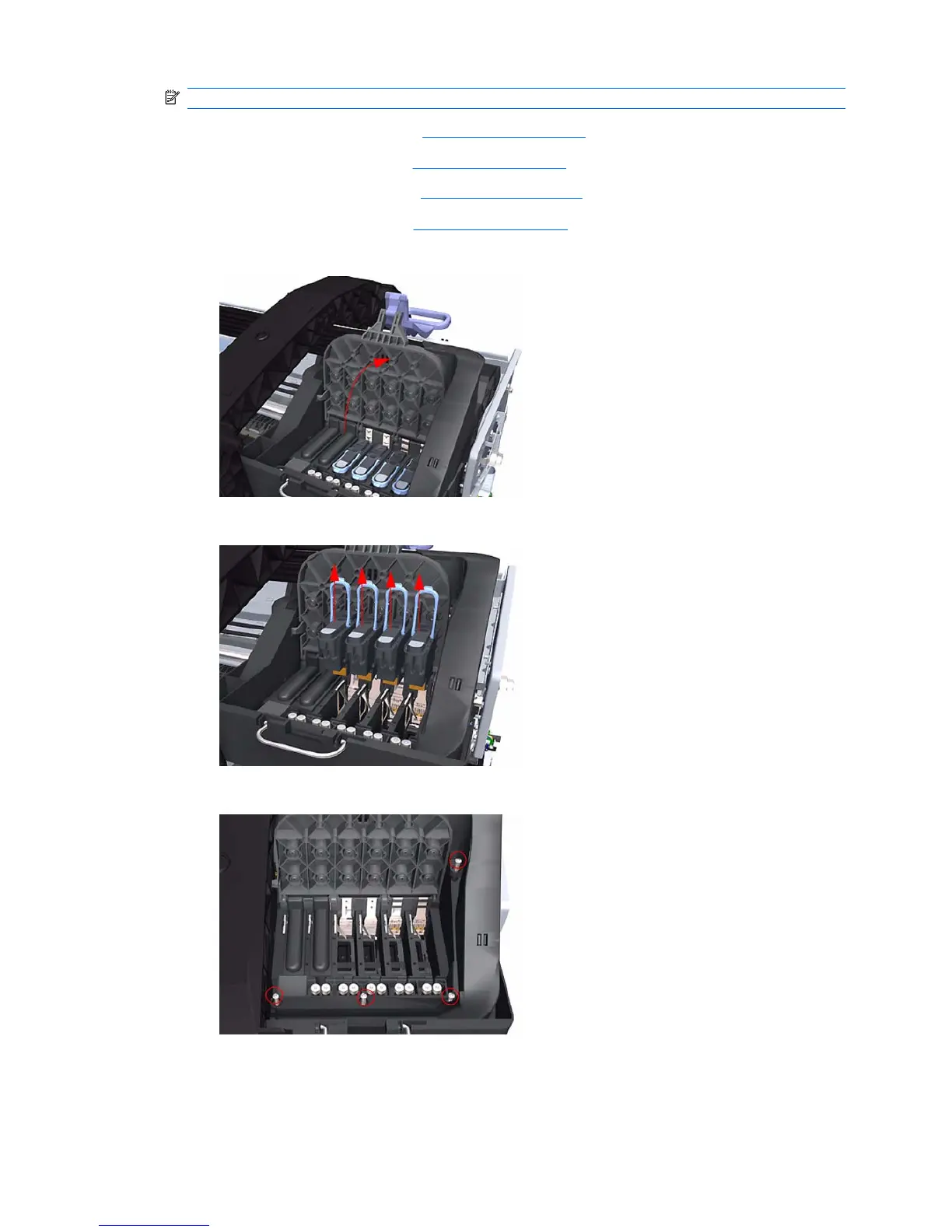

NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
2. Remove the Left Cover (refer
Left Cover on page 188).
3. Remove the Front Panel (refer
Front Panel on page 203).
4. Remove the Top Cover (refer
Top Cover on page 205).
5. Open the Carriage Cover.
6. Remove all the Printheads.
7. Remove the four T-15 screws that secure the Ink Supply Tubes to the Carriage Assembly.
ENWW Ink Supply Tubes 289
